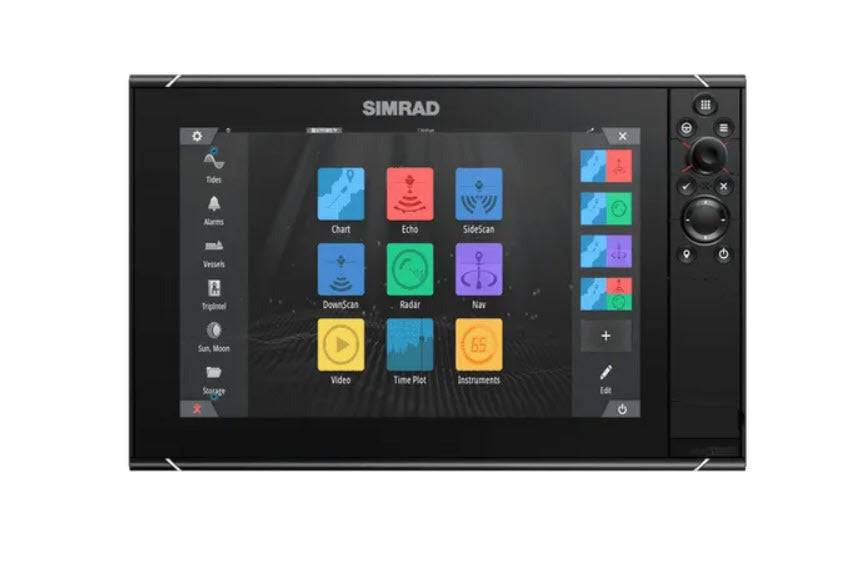

Simrad NSS12 evo3S 12 Inch Display
Sent from NZ Supplier (1-2 Days)
Simrad NSS12 evo3S 12 Inch Display Easy to use touchscreen UI as well as a full keypad for simple and precise control in any sea conditions.
Simrad NSS12 evo3S 12 Inch Display
OVERVIEW
NSS evo3S is a mid-life update to the NSS evo3. The key difference is a next-generation processor. This dramatically improves the speed and smoothness of the display. The NSS evo3 is already a feature-packed product, and the new processor in the evo3S means that each one of those features is now improved.
Key Features for Sport Fishing and Offshore Cruising:
High Resolution, High Bright, SolarMax IPS Displays.
Easy to use touchscreen UI as well as a full keypad for simple and precise control in any sea conditions.
Built-in advanced echosounder can 1kW Dual channel CHIRP, Forwardscan, Sidescan, Downscan and StructureScan 3D images.
Take another step forward with Simrad’s premium network modules for the ultimate offshore performance.
Halo Dome and Open Array Radars: S5100 Sportfishing Echosounder, Direct audio, autopilot, engine connection, and control.
Low-profile glass dash styling.
Check out more detail here - https://www.simrad-yachting.com/en-nz/nss-evo3s/
NSS12EVO3S - A HIGH-DEFINITION 12-INCH MFD DISPLAY THAT’S GREAT FOR CENTRE CONSOLES AND OTHER POWERBOATS.
Featuring an iMX 8 high-performance processor with superfast response times, this compact package delivers extensive functionality. Enjoy stunning clarity and ultra-wide viewing angles, combined with an all-weather touchscreen and keypad for total control in all conditions. Includes preloaded C-MAP® charts.
KEY FEATURES
- iMX 8 Integrated processor for superior performance
- 12-inch SolarMAX ™ IPS display with ultra-wide viewing angles; viewable through Polarized sunglasses
- Switch seamlessly between touchscreen and keypad control
- Built-in high-performance echosounder with 1kW CHIRP
- Built-in GPS receiver and wireless connectivity
- Control Simrad sonar, radar, autopilot, and other accessories
- Industry-standard connectivity to engines, sound systems, and more
- TripIntel™ trip planning and support for automatic routing
- Choose low-profile flush mounting or convenient bracket mounting
- Download the Simrad App and connect with smartphones, tablets, and internet hotspots
- Supports SteadySteer™, an autopilot performance enhancement for NAC-2 and NAC-3 autopilot computers fitted with RPU drive pumps
- Compatible with a CZone® digital switching device, enabling control from the MFD via the NMEA 2000 network
- Mercury® Smart Tow® enabled for wake shaping
- ITC Lighting systems can be controlled with an ITC Lighting control bar
- Supports Honda ECO mode engine information
- Plan Position Indicator (PPI) and AIS enhanced interface capabilities
- Supports the SiriusXM® WM-4 satellite Weather module and Fish Mapping™ service (requires a subscription, North America only)
MAKE THE MOST OF YOUR BOATING EXPERIENCE
Take total control of your on-water experience. SolarMAX® IPS displays offer exceptional clarity and ultra-wide viewing angles in light conditions, while an iMX 8 high-performance processor delivers superfast response times for seamless screen transitions. Choose between all-weather touchscreen technology or a keypad with a rotary dial as the situation demands. It’s easy to monitor and control all of your onboard electronics with simple menus, customizable split-screen layouts, and a programmable function key for one-button access to the features you use most.
SOLARMAX IPS DISPLAYS ENSURE CLEAR VIEWS IN ANY CONDITIONS
Get a clear view under any lighting conditions with SolarMax IPS technology, which keeps everything in sight with ultra-wide viewing angles, even if you’re wearing polarised sunglasses. These all-weather screens have been engineered to withstand the summer sun's heat and are optically bonded to prevent condensation or fogging within the display. It’s easier than ever to instantly access and control all of your onboard electronics via simple menus and customisable split-screen layouts.
BUILT-IN HIGH-PERFORMANCE ECHOSOUNDER SUPPORTS FISHING AND SAFER CRUISING
Just add your choice of transducer. 1kW CHIRP-enabled sonar provides exceptional bottom-tracking and fish-finding performance, including support for dual-channel CHIRP transducers that deliver multiple depth range coverage from a single unit. Dual transducer ports offer the convenience of connecting multiple transducers to a single display. Advanced processing power easily powers ActiveTarget™, the highest resolution live sonar on the market, Active Imaging™, providing picture-like views of fish-holding structure, and ForwardScan® sonar, for the safest on-water experience with crystal clear views of the bottom ahead.
FAST AND SIMPLE NETWORKING CONNECTS A WIDE RANGE OF ACCESSORIES
Industry-standard connectivity makes it easy to create multi-display systems and link displays to all of your onboard electronics, while a iMX 8 high-performance processor ensures engine and fuel monitoring in real-time, control of onboard sound systems and much more.
Integrate with an expanded range of 3rd party technologies – CZone® digital switching, Mercury® Smart Tow® for surf and wakeboarding, control lighting effects with an ITC Lighting control bar, and Honda ECO mode engine information. Expand your system with Simrad modules and accessories, fish smarter with the game-changing S5100 or StructureScan® 3D, and see further with legendary HALO™ Pulse Compression radar. Or, free your hands from the wheel with a fully integrated Simrad autopilot and experience enhanced autopilot functionality with SteadySteer™ (compatible with RPU drive pumps).
WIRELESS CONNECTIVITY TO YOUR SMARTPHONE OR TABLET
Mirror your display to compatible iOS and Android devices and enjoy access to charts, radar, sonar, engine data and more from anywhere on board. Wireless connectivity also enables easy online software upgrades through any internet hotspot, giving you access to the latest features and accessory support. Or download the Simrad App for an even richer experience – from device registration and manual downloads to saving waypoints and your favourite fishing spots – accessible both on- and off- the water.
RADAR OPTIONS
Add Halo™ Pulse Compression radar system to cruise safely through crowded harbours, navigate in poor visibility, keep an eye on distant weather calls and even locate flocks of feeding birds that hint at good fishing spots.
LATEST SOFTWARE UPDATES FEATURE A HOST OF RADAR PANELS AND AIS USER IMPROVEMENTS. THESE INCLUDE AS EXAMPLES:
- Visual enhancements to graphics and data displayed. Such as Plan Position Indicator (PPI) design improvements and AIS targets displayed as an outline of a vessel.
- A new menu structure, allowing easier access to commonly used controls and features.
- New AIS and MARPA target symbols provide additional information for stationary and moving targets supported by better graphics for clearer visual explanation.
- Moving Radar MARPA and AIS targets now display a graduated trail showing the vessel’s past position history on the radar PPI. The duration of the history length can be customised.
- Simplification of displayed targets by combining MARPA and AIS targets for the same vessel as one symbol.
- A significant new safety and situational awareness tool, a Dangerous Target Alert; appears in a pop-up window that not only alerts the user, but guides them to the relative range and bearing of the dangerous target.
- The introduction of new ‘adjustment handles’ makes it easier to set Guard zones using a touch screen.
PHYSICAL
Dimensions | 352 x 225 x 98 mm (13.84 x 8.87 x 3.82")with bracket: 377 x 241 x 120 (14.85 x 9.47 x 4.71) |
Weight | 3.10kg/6.83lb |
ENVIRONMENTAL
Operating temperature range | -15°C to +55°C (5° F to 131° F) |
Environment Shock Vibration | 100,000 cycles of 20G |
Storage temperature range | -20°C to +60°C (4°F to 140°F) |
Water resistance | IPX6 and 7 |
POWER
Supply voltage | 10 - 31.2 V DC |
Fuse rating | 5A |
Power consumption (Max) | 28W |
DISPLAY
Display backlight color | White |
Display resolution | 1280 x 800 |
Display screen brightness | 1200 nits |
Display size and type | High Visibility SolarMax HD® IPS 7" optically bonded TFT |
Display viewing angles | 80° top/bottom, 80° left/right |
CONNECTIVITY
Ethernet | 2 x 5 pin yellow connector x 1 Mbit |
Bluetooth | Internal |
NMEA2000 connectivity | 1 x NMEA 2000 Micro-C port, 1 LEN |
NMEA 2000 PGNs | Receive only |
- 59392 ISO Acknowledgement
- 59904 ISO Request
- 60160 ISO Transport Protocol, Data Transfer
- 60416 ISO Transport Protocol, Connection M.
- 65240 ISO Commanded Address
- 60928 ISO Address Claim
- 126208 ISO Command Group Function
- 126992 System Time
- 126996 Product Info
- 126998 Configuration Information
- 127233 Man Overboard Notification (MOB)
- 127237 Heading/Track Control
- 127245 Rudder
- 127250 Vessel Heading
- 127251 Rate of Turn
- 127252 Heave
- 127257 Attitude
- 127258 Magnetic Variation
- 127488 Engine Parameters, Rapid Update
- 127489 Engine Parameters, Dynamic
- 127493 Transmission Parameters, Dynamic
- 127500 Load Controller Connection State / Control
- 127501 Binary Status Report
- 127503 AC input status
- 127504 AC Output Status
- 127505 Fluid Level
- 127506 DC Detailed Status
- 127507 Charger Status
- 127508 Battery Status
- 127509 Inverter Status
- 128259 Speed, Water referenced
- 128267 Water Depth
- 128275 Distance Log
- 129025 Position, Rapid Update
- 129026 COG & SOG, Rapid Update
- 129029 GNSS Position Data
- 129033 Time & Date
- 129038 AIS Class A Position Report
- 129039 AIS Class B Position Report
- 129040 AIS Class B Extended Position Report
- 129041 AIS aids to Navigation
- 129283 Cross Track Error
- 129284 Navigation Data
- 129539 GNSS DOPs
- 129540 AIS Class B Extended Position Report
- 129545 GNSS RAIM Output
- 129549 DGNSS Corrections
- 129551 GNSS Differential Correction Receiver Signal
- 129793 AIS UTC and Date Report
- 129794 AIS aids to Navigation
- 129798 AIS SAR Aircraft Position Report
- 129801 Cross Track Error
- 129802 AIS Safety Related Broadcast Message
- 129283 Cross Track Error
- 129284 Navigation Data
- 129539 GNSS DOPs
- 129540 GNSS Sats in View
- 129794 AIS Class A Static and Voyage Related Data
- 129801 AIS Addressed Safety Related Message
- 129802 AIS Safety Related Broadcast Message
- 129808 DSC Call Information
- 129809 AIS Class B “CS” Static Data Report, Part A
- 129810 AIS Class B “CS” Static Data Report, Part B
- 130060 Label
- 130074 Route and WP Service - WP List - WP Name & Position
- 130306 Wind Data
- 130310 Environmental Parameters
- 130311 Environmental Parameters
- 130312 Temperature
- 130313 Humidity
- 130314 Actual Pressure
- 130316 Temperature, Extended Range
- 130569 Entertainment - Current File and Status
- 130570 Entertainment - Library Data File
- 130571 Entertainment - Library Data Group
- 130572 Entertainment - Library Data Search
- 130573 Entertainment - Supported Source Data
- 130574 Entertainment - Supported Zone Data
- 130576 Small Craft Status
- 130577 Direction Data
- 130578 Vessel Speed Components
- 130579 Entertainment - System Configuration Status
- 130580 Entertainment - System Configuration Status
- 130581 Entertainment - Zone Configuration Status
- 130582 Entertainment - Zone Volume Status
- 130583 Entertainment - Available Audio EQ Presets
- 130584 Entertainment - Bluetooth Devices
- 130585 Entertainment - Bluetooth Source Status
NMEA 2000 PGN'S TRANSMIT
- 60160 ISO Transport Protocol, Data Transfer
- 60416 ISO Transport Protocol, Connection M.
- 126208 ISO Command Group Function
- 126992 System Time
- 126993 Heartbeat
- 126996 Product Info
- 127237 Heading/Track Control
- 127250 Vessel Heading
- 127258 Magnetic Variation
- 127502 Switch Bank Control
- 128259 Speed, Water referenced
- 128267 Water Depth
- 128275 Distance Log
- 129025 Position, Rapid Update
- 129026 COG & SOG, Rapid Update
- 129029 GNSS Position Data
- 129283 Cross Track Error
- 129285 Navigation - Route/WP Information
- 129284 Navigation Data
- 129285 Route/Waypoint Data
- 129539 GNSS DOPs
- 129540 GNSS Sats in View
- 130074 Route and WP Service - WP List - WP Name & Position
- 130306 Wind Data
- 130310 Environmental Parameters
- 130311 Environmental Parameters
- 130312 Temperature
- 130577 Direction Data
- 130578 Vessel Speed Components
NMEA 0183 connectivity | 1 x Transmit, 1 x Receive NMEA 0183, Baud Rates 4800, 9600, 19200, 38400. TX and RX use the same baud rate. Optional data cable required (P/N 000-00129-001) |
NMEA 0183 sentences | Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM. (Note AIS sentences are not bridged to or from NMEA 2000) Output GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM" |
Video connectivity | 2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001). |
WiFi connectivity | Internal. |
SONAR
Sonar frequencies | 40-250kHz 455-800kHz |
Sonar max depth | 3000’+ (tested with B175L) |
Sonar output power | 1kW RMS |
Compliance | CE, C-Tick,HDMI(16"), EN 60950-1:2006, EN 60945:2002 |
EN 300 440-2, V1.4.2
GPS
GPS | Internal |
GPS update rate | 10 Hz |
GPS channels | 34 Channels |
GPS correction | WASS, EGNOS, MSAS, GLONASS |
GPS position accuracy | Horizontal Accuracy 3 m (9.8 ft) |
GPS time to first fix | Cold start 50 sec, Satellite Reacquisition 5 sec |
FEATURES
Interface | Full touch screen (multi-touch ) and full keypad control, OP50 remote controllers |
Charts Incuded | Insight |
Radar | Broadband Radar, Halo Pulse Compression Radar, HD Pulse Radar |
Sonar | Two 9 pin Xsonic Sonar ports. Sonar port 1: Single channel CHIRP, 50/200 khz, HDI. Sonar port 2: Single channel CHIRP, 50/200 khz, TotalScan, LSS HD, ForwardScan.Compatible with: SonarHub, BSM-3, BSM-2, network echo sounders" |
Weather | SiriusXM via WM-3 (USA only), GRIB |
AIS | Receive AIS data over NMEA 2000 or *NMEA 0183 (has to be wired to all NSS processors) |
Autopilot integration | Full autopilot control and commissioning |
Autopilot steering modes | Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail) |
Autopilot maneuvers turn patterns | U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking |
Supported Charts | Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts) |
Digital switching | BEP C-Zone, Naviop |
External storage | 2 MicroSD slots, max. 32GB each. Larger if formatted to NTFS |
Internal storage | 16 GB |
Multi-media | via SonicHub2, FusionLink, *Sirius, **JL Audio. *USA only, **AUST. & NZ only) |
Waypoints, routes & tracks | 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points. |
Language Support | Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish. |
Other languages supported by Unlock: Japanese, Korean, Thai, Chinese, Bulgarian, Hebrew, Croatian, Hungarian, Lithuanian, Latvian, Polish, Slovak, Turkish, Russian, Ukrainian, Arabic,Farsi
