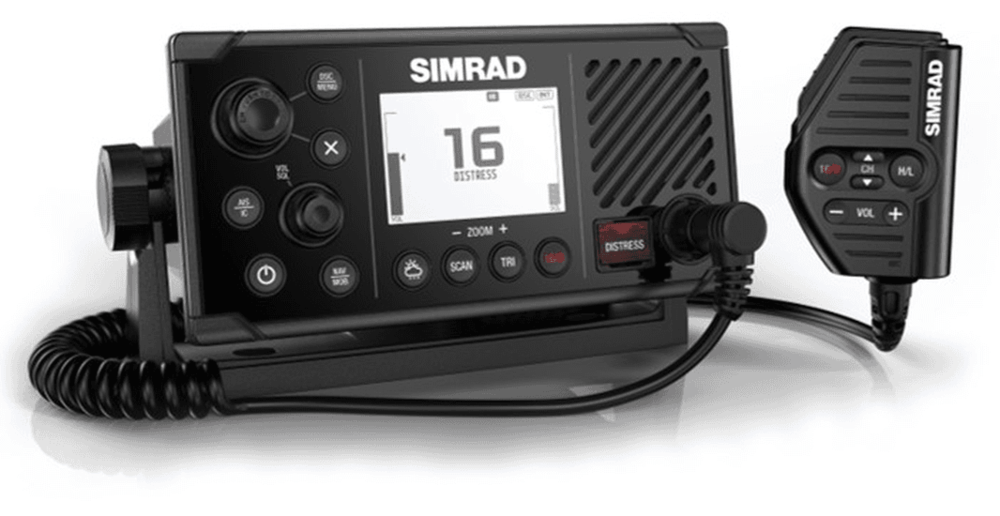

Simrad Rs40 Vhf Radio With Dsc & Ais Receive

Simrad RS40 marine VHF radio with DSC and AIS receive - Replaces the current RS35 mid-level VHF. 000-14470-001

Simrad RS40 marine VHF radio with DSC and AIS receive -

Overview

• Built-in GPS Antenna
• Receive GPS data from a compatible GPS unit: SMA connector for optional external GPS antenna / 000-13613-001
• Replaces the current RS12 entry-level VHF
• NMEA2000 connectivity for advanced functionality like backlight grouping when connected to Simrad MFD’s
• NMEA0183 connectivity
• Output DSC for DSC call, DSE for enhanced position when doing Lat/Long request and Buddy Track
• New front mountable mechanical design for easy installation
• Low profile design to align with the style of Simrad MFD’s
• Full inbuilt country-specific channel banks
• No requirement for LC programming or cloning

Unique Selling Points

GPS 4-Ways

• With the integrated GPS receiver, the RS40 now has four ways to ensure you have a GPS fix in an emergency.
• A GPS antenna in the face of the radio means open-air installations don’t need another antenna at all.
• An SMA connector on the rear case allows for connection to a GPS-500 antenna.
• NMEA 0183 allows you to get GPS from a Chartplotter
• NMEA 2000 means you don’t need another antenna if you already have one in your network

Built-in AIS

• A dual-channel AIS receiver monitors nearby AIS-equipped vessels' position, helping you avoid collisions in crowded harbours and waterways.
• AIS information can be viewed on the RS40’s built-in screen or overlaid on your chart or radar screen through a compatible multifunction display.

Wireless Handset

• Add up to two optional wireless handsets to take your radio anywhere onboard.
• The HS40 handset was designed as an intuitive portable companion to the RS40.
• Each handset duplicates your radio’s display and controls, enabling remote access to all key functions.
• Multiple stations also allow the RS40 to double as a handy on-board intercom.

Remote Mountable Fist Mic

• The RS40’s removable fist mic can be connected to the front or rear of the radio, and an optional extension cable allows the radio and mic to be mounted separately.
• This offers a simple, cost-effective solution for any mounting location with no cable clutter.
• For example, the RS40 can be mounted overhead, with no hanging cables, while the mic is connected to an extension socket on the dash below.

Track Buddy

Track buddy is a feature that automatically requests the position of another VHF radio. Enter the MMSI of the VHF into your contact list, then start tracking.

• Track up to 5 buddies.
• Polls your contacts for their Lat/Long position automatically
• Can be set to 1, 5, 15, 30 or 60-minute intervals
• Displays the position on a compatible chart plotter
• Great for keeping track of friends, family or vessels you need to know the position of that don't have AIS

Navigation Mode

• Press the NAV button on the RS40 to turn it into a navigational instrument displaying your Speed and Course.
• RS40 also contains a Man Overboard (MOB) function, hold down the NAV/MOB button to drop a waypoint on your current location, and the RS40 will enter MOB mode to show you how far away you are and where you need to steer to get back to the position of the MOB event. The MOB waypoint is also transmitted over NMEA 2000 to the rest of your network.

Please note this is not sold in our store - It is Shipped from a secure Location - Online Orders Only.

PRODUCT CODE 000-14470-001
