SLR G100 Lifting Eye Weld-On
Sent from NZ Supplier (1-2 Days)
SLR G100 Lifting Eye Weld-On
Industrial Grade G100 and Spring Loaded, Designed for Lifting and Transportation Lashing Applications
For Lifting, the Safety Factor is 4:1
Complies with relevant NZ & International Standards
For Pulling / Lashing Capacity (L/C) the Safety Factor is 2:1
Complies with NZ LTSA guidelines.

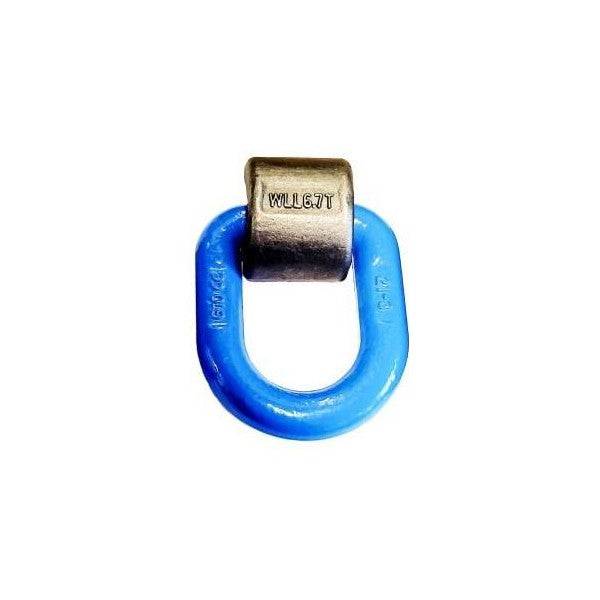

Clearly Marked with;
- Manufacture Brand
- Lifting Work Load
- Material Grade
- Tracabile Batch No.

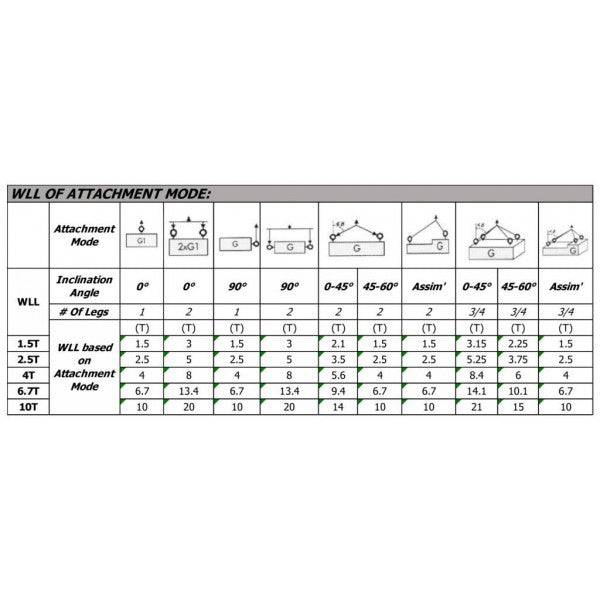

The "D" Body has a 100% WLL from all angles.
However, SLR doesn’t recommend applications (force on shoulders) since this will also depend heavily on the welding quantity.
The force will give a shearing force on the welding point which will be determined by the quality of the weld which SLR will not garranty.
The Welded Saddle should be equally loaded from both side to avoid the weld tearing.
