Smart Dual Battery Isolator 12V 140A
Supplier Direct/Internet Order Only
* Please do not visit the shop
(Inc. GST)

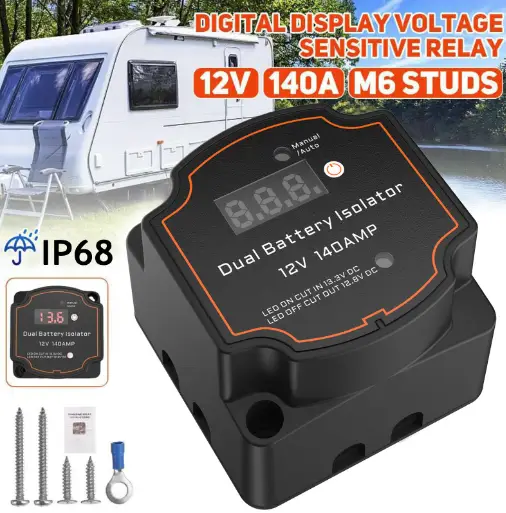

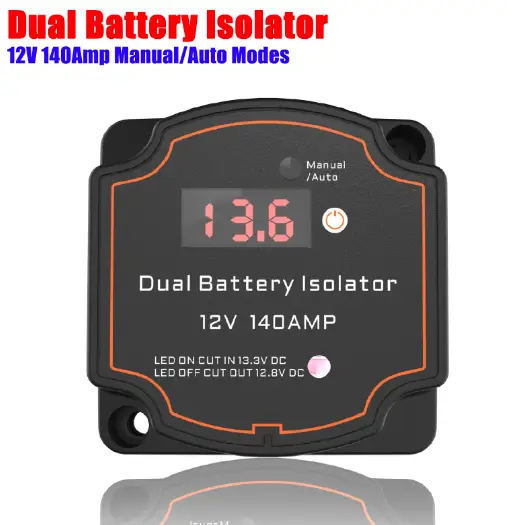

12V 140 Amp Split Charge Relay with Led Voltmeter, Manual/Auto Mode Waterproof Voltage Sensitive Relay, VSR Smart Dual Battery Isolator for Marine Truck ATV UTV RV Boat Vehicles

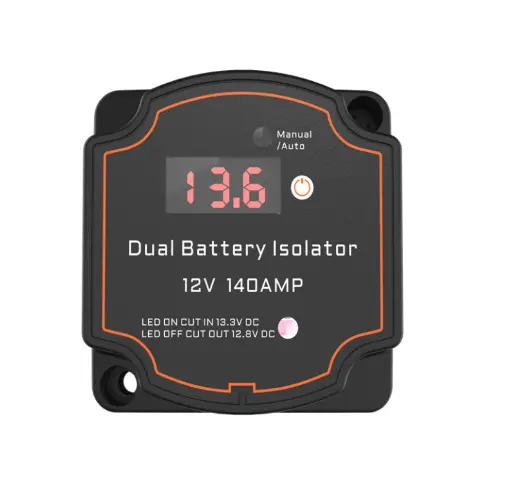

Smart Dual Battery Isolator

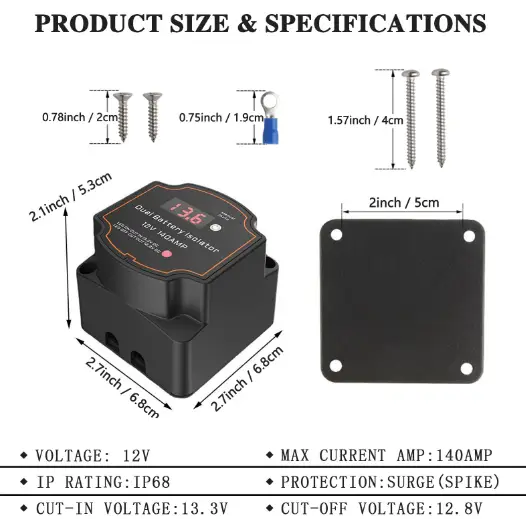

TECHNICAL SPECIFICATIONS
Material: ABS+Metal
Color: Black
Voltage: 12V
Charging Current: 90-120AMP CONTINUOUS,160AMP PEAK
Current Draw: CHAEGING 330mA STANDBY1mA
Cut-in Voltage: 13.3V
Cut-out Voltage: 12.8V
Cut-out Delay: 3-5 SECONDS
IP Rating: IP68
Features:
Made of high quality material, strong fiberglass, reinforced nylon shell.
The two batteries are automatically merged when charging, and the two batteries are isolated when not charging.
Built-in LED indication (lights up when VSR starts).
Surface or panel mounting options provide flexibility in installation.
Suitable for 12V 4WD, marine, truck, caravan and camping applications.

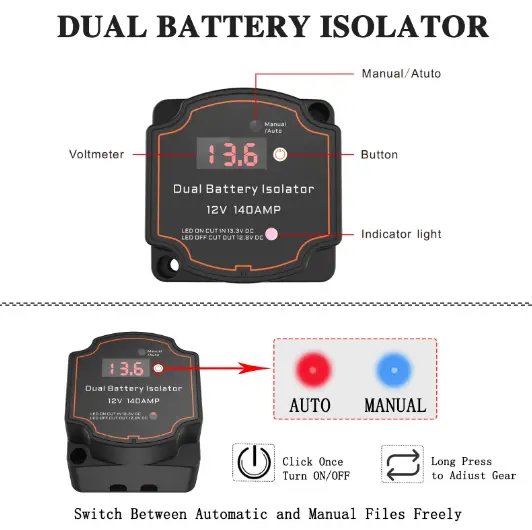

Operating Manual
1.Manual and auto modes
2.Manual state use function
3.Automatic state use functicn
4.High & low pressure protection
5.Voltmeter display
Packing List:
1x Digital Display Voltage Sensitive Relay
