StressFree Maxi Anchor Winch

Stressfree Maxi Anchor Winch Product Code - SFMAXI Stress-free anchor retrieval from this compact winch

Stressfree Maxi Anchor Winch

Features

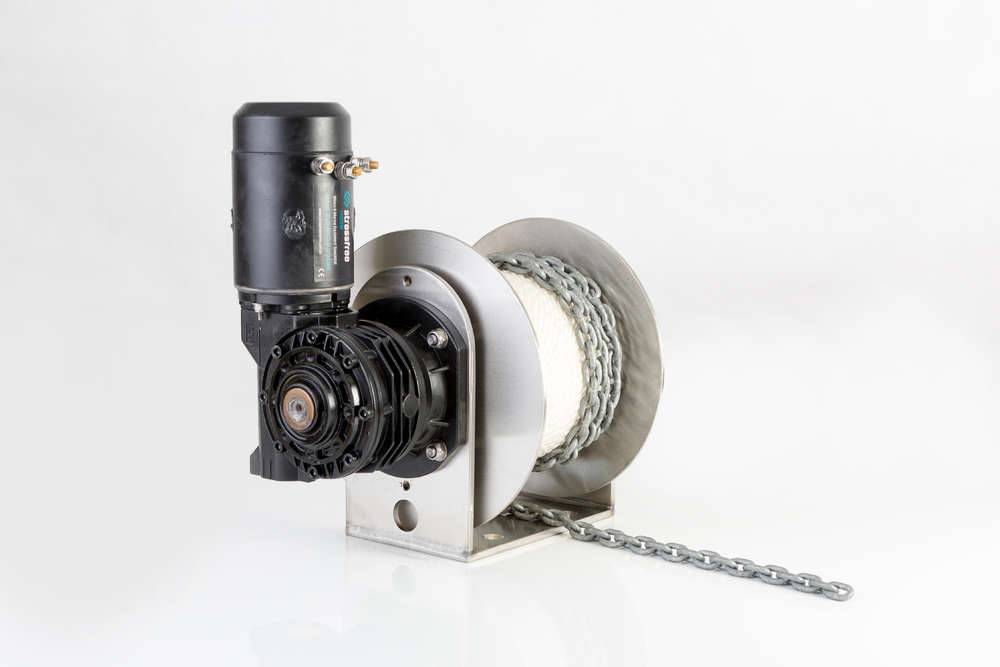

Maxi Standard Stress-Free Drum Winch

Stress-free anchor retrieval from this compact winch.

• 1400 watt motor
• All 316 marine-grade stainless steel
• Baseplate 8mm marine grade stainless steel in three parts and welded
• The diameter of the drum is 300mm
• Maximum lifting capacity 275 kilos [when the drum diameter is small]
• Holding capacity at anchor is 3600 kilos
• Rated to 135 amps
• Normal running the Stress-Free will use 25 – 30 amps and underload up to 55 amps
• To protect the motor, the circuit breaker will trip out if there is a power overload for example, if the anchor is stuck on the bottom
• Recommend dual batteries with the battery switch on BOTH
• Can be deck-mounted

Drum capacity

• 85 metres of 10mm nylon plus 8 metres of 8mm short link chain OR
• 100 metres of 8mm double braid eye spliced to 5 metres of 10mm
• Nylon plus 8 metres of 8mm short link chain

The gearbox mounting holes in the mounting bracket allow the motor and drive to be installed at 4 angles to suit different anchor well configurations.

Another eight adjustment angles are available at 30 decrees and 45 decrees from each of the basic four mounting holes.


NB: The chain can be lengthened or shortened to meet individual needs.

In these situations, the amount of rope must be tailored to ensure a maintained clearance between the chain and the baseplate.

PLEASE READ THE SPECS CORRECTLY BEFORE BUYING

THIS IS SENT DIRECTLY FROM OUR SUPPLIER - WE DO NOT HAVE THE ROOM TO STOCK THIS ITEM IN OUR SHOP

Product Code SFMAXI

5-2024
