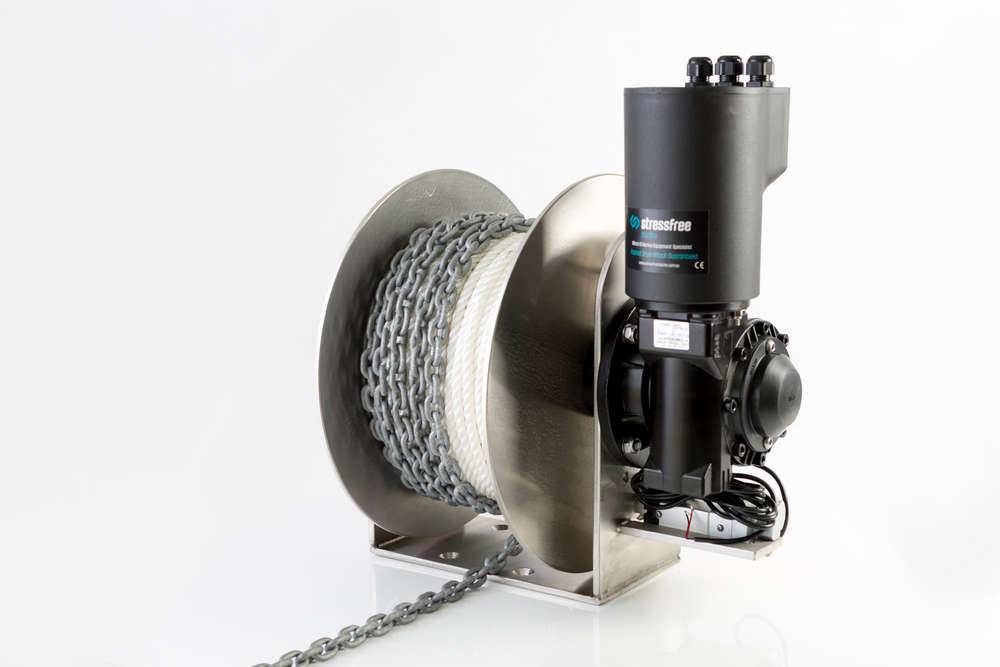

StressFree Mighty Winch - Free Fall

Stressfree Mighty Anchor Winch - Free Fall Product Code-SFNGMIGHTY Stressfree anchor retrieval from this compact winch.

Stressfree Mighty Anchor Winch - Free Fall

Features

NG Series Mighty Standard Stress-Free Drum Winch with Free Fall

Stress-free anchor retrieval from this compact winch.

Suitable for boats 10 metres plus

• 1700 watt motor

• All 316 marine grade stainless steel

• Baseplate 8mm marine grade stainless steel in three parts and welded

• Diameter of the drum 400mm

• Maximum lifting capacity 350 kilos (when the drum diameter is small)

• Holding capacity at anchor is 3600 kilos

• Rated to 135 amps

• Normal running the Stress-Free will use 25 – 30 amps and under load up to 55 amps

• To protect the motor, the circuit breaker will trip out if there is a power overload (for example if the anchor is stuck on the bottom).

• Recommend dual batteries with the battery switch on BOTH

• Can be deck mounted

Drum capacity

• 170 metres of 8mm nylon plus 8 meters of 8mm short link chain OR

• 130 metres of 10mm nylon plus 8 meters of 8mm short link chain OR

• 100 metres of 12mm nylon plus 8 meters of 8mm short link chain

The gearbox mounting holes in the mounting bracket allow the motor and drive to be installed at 4 angles to suit different anchor well configurations. Another 8 adjustment angles are available at 30 degrees and 45 degrees from each of the basic 4 mounting holes.


NB—The length of chain can be lengthened or shortened to meet individual needs. In these situations, the amount of rope must be tailored to ensure a maintained clearance between the chain and the baseplate.
