Temperature Screening Thermo Handheld Camera

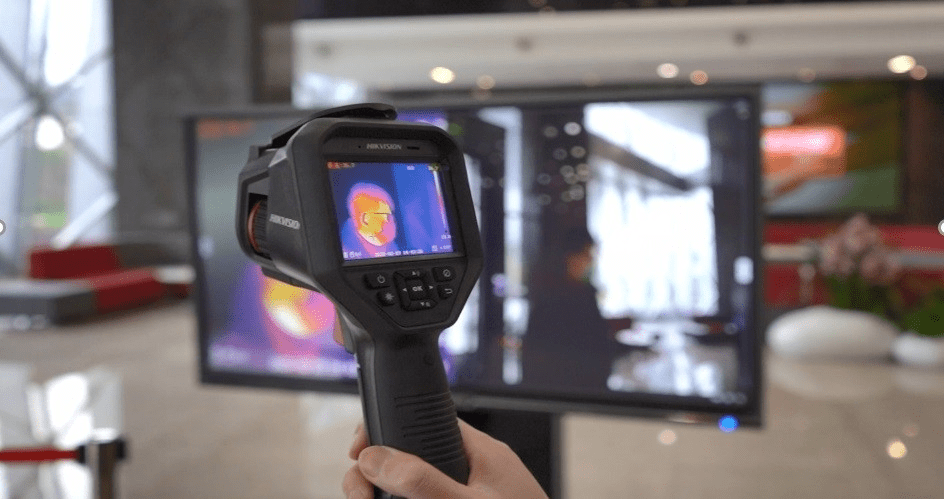

Hikvision Temperature Screening Thermographic Handheld Camera - Advanced Professional Non-Contact Thermal Reader

Thermographic Handheld Camera - Professional Non-Contact 10x60 Thermal Reader

PLEASE CONTACT US FOR AVAILABILITY

Features

• 160 × 120 resolution (thermal), and 8 MP resolution (optical)
• DDE,3D DNR, and adaptive AGC
• 640 × 480 resolution 3.5 inch LCD touch display
• Up to five hours of continuous running
• Temperature measurement range: 30 degrees C to 45 degrees C
• Temperature measurement accuracy- to approximately 0.5 degrees C
• Thermal：160 × 120, 6.2mm，25 degrees× 19 degrees
• Visible：2MP
• Bi-spectrum image fusion；
• WIFI, Audio alarm
• Accuracy-to approximately 0.5 degrees C
• Range-30-45 degrees C

Optical

• Picture ResolutionConfigurable: 2 MP, 5 MP, 8 MP
• Video Resolution 640 × 480

Thermography

• Rules Max. Temperature; Min. Temperature; Center Temperature; Custom Point/Line/Area Thermography
• Thermographic range from 30 degrees to 45 degrees
• Accuracy to approximately 0.5 degrees C

Image Display

• Monitor 640 × 480 resolution 3.5-inch LCD touch display
• Image ModeThermal view, B/W optical view, image fusion view are selectable
• Palettes Black hot, White-hot, Red hot, Rainbow, Rainbow, Fusion, Rain
• Image FusionFusion view of thermal view and overlaid details of the optical channel
• Digital ZoomThermal：1, 2, and 4 times magnification
• System Function
• Laser LightSupport (Point to the thermography target)
• CaptureThermal/Optical/Fusion image
• VideoThermal/Optical/Fusion image
• Wi-Fi
• Storage Built-in memory module (16 G)

Battery Type

• Dismountable and rechargeable L i-ion Battery
• Battery Operating Time5 hours in normal temperature, with Wi-Fi, Bluetooth, and supplement light off. 4 hours in normal temperature, with Wi-Fi, Bluetooth, and supplement light on.

General

• Hardware InterfaceType-C USB
• Power Supply5 VDC/2 A
• Power Consumption max. 4.5 W
• Working Temperature10 degrees C to 35 degrees
• Protection Level IP54
• Drop Test Height2 m (6.56 feet)

​DS-2TP21B-6AVF/W

THIS PRODUCT IS SHIPPED FROM OUR LOCAL SUPPLIERS
