The Gull Wing Axle - Disc Braked - 1500kg - Galvanised is Trojan’s robust, order-to-build solution for trailers that demand dependable stopping power, corrosion resistance, and tailored fit. Designed for leaf-spring suspensions, this disc-braked beam axle combines a rugged galvanised finish with a gull wing geometry that optimizes spring mounting clearance while maintaining precise alignment. Please note this part is made to order with a lead time of at least 6 weeks, and you’ll need to download and fill out the axle order sheet when you place your order.

Why this Gull Wing Disc Braked Axle stands out

• Reliable 1500 kg capacity built to support mid-size to heavier trailers with confidence, whether you’re hauling equipment, landscaping gear, or utility loads.
• Disc braking delivers improved stopping performance in variable conditions, better heat dissipation on long descents, and generally lower maintenance relative to drum-only setups.

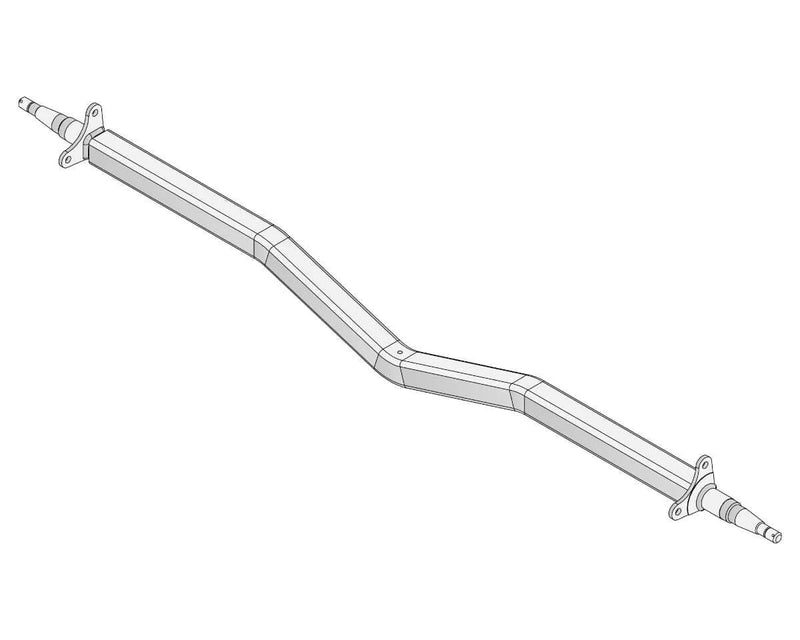

• Gull Wing geometry provides increased clearance around the spring pads, making installation easier on trailers with higher spring mounts or tighter wheel-well tolerances.
• Galvanised finish offers durable corrosion protection for outdoor, road, and job-site exposure, extending the life of the axle in demanding environments.
• Fabricated to order with precise measurements to your specs, ensuring a proper fit for your trailer design and load requirements.

Key specifications and configuration options

• Capacity: 1500 kg rated for steady, reliable carrying capability.
• Braking: Disc Braked system for stronger, more consistent braking performance.
• Finish: Galvanised coating for superior corrosion resistance in harsh operating environments.
• Beam variants: Trojan offers straight beam, drop beam, and gull wing types to suit a range of trailer architectures.
• Braked or non-braked options: This description covers the disc-braked version; non-braked variants are available as alternatives.
• Material footprint: Beams are manufactured to order using 40mm, 50mm, or 65mm square hollow box section depending on capacity and design needs.

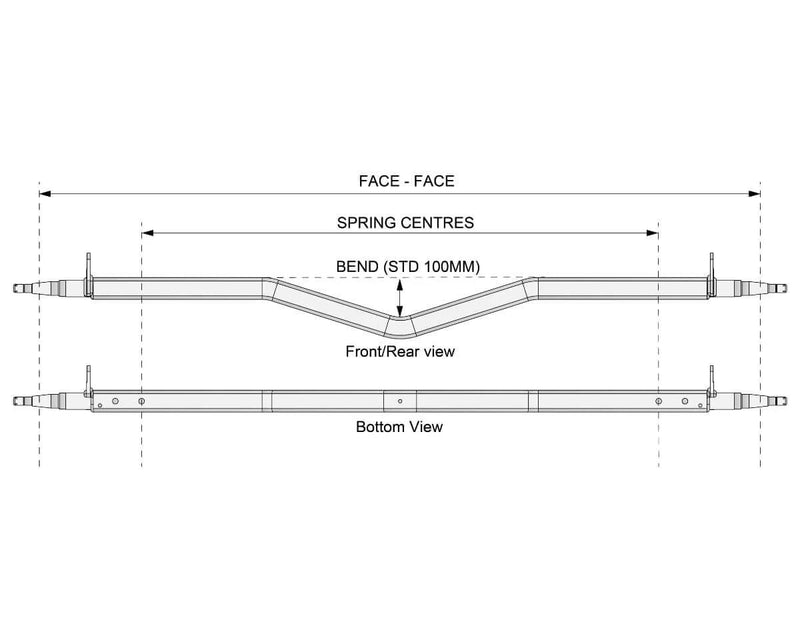

• Critical measurements for fitment:
  • C – face-to-face measurement from the outside face of one hub to the opposite hub.
  • D – center-to-center distance of the springs mounted position.
  • E – Gull Wing bend depth, available in 60mm, 90mm, or 120mm.

Ordering and practical considerations

• This axle is made to order with a minimum lead time of 6 weeks. Plan ahead to align with production schedules and your trailer build timeline.
• When ordering, please download and complete the Axle Order Sheet (Adobe PDF) to ensure all measurements (C, D, and E for Gull Wing) and options are captured accurately.
• If you need hubs fitted to your new axle, Trojan offers this as a service—please refer to related products below for compatible hub options.

Ideal applications and use cases

• Trailers used for agricultural, landscaping, or commercial hauling where a robust, weather-ready axle improves reliability and service life.
• Medium-duty caravans or utility trailers that require stronger braking performance in challenging conditions or on steeper descents.
• Projects where spring clearance is tight or where a Gull Wing setup makes mounting and alignment simpler without sacrificing stiffness or strength.

How this axle compares to alternatives

Compared with standard straight or drop beam axles, the Gull Wing Disc Braked version emphasizes easier integration with certain leaf-spring configurations and improved wheel-to-body clearance. The disc braking system adds stopping efficiency and cooling capacity under heavier loads, while the galvanised finish lowers long-term maintenance needs in outdoor environments. For users prioritizing corrosion resistance and a tailored fit, this axle offers a compelling combination of durability and performance—without compromising on the exacting measurements required for your trailer design.

Practical tips for best results

• Have your exact C, D, and E measurements ready (especially E for Gull Wing bends) to ensure a precise build that aligns with your wheel mate and spring positions.
• Consider your hub configuration early; if you plan to add hubs, verify compatibility with the chosen bearing size and brake arrangement during the order process.
• Keep the galvanised surface protected during installation to avoid scuffing the coating; touch-up paint is recommended if the surface is scratched.

With the Gull Wing Axle - Disc Braked - 1500kg - Galvanised, you’re investing in a purpose-built solution that blends robust load handling, modern braking performance, and a design adaptable to a range of trailer layouts. Start your order with the Axle Order Sheet, factor in the six-week lead time, and rest easy knowing your trailer’s foundation is built to perform in the harshest conditions.

Axle Order Sheet (Adobe PDF)
