Engineered for heavy-duty trailer builds, the Gull Wing Axle - Multi-Hub - 2200kg - Galvanised is a purpose-built solution for exacting loads and precise alignment. Its gull wing geometry paired with a multi-hub layout offers flexible wheel options while maximizing load distribution. Finished in galvanised steel, it resists corrosion in outdoor and coastal environments, delivering long-term durability for demanding applications.

Key specifications and capabilities

• Capacity: 2,200 kg axle rating with a gull wing multi-hub design that enables versatile wheel configurations and improved weight distribution.
• Finish: galvanised coating for superior corrosion resistance, ideal for outdoor use and marine environments.
• Braking options: available in both braked and non-braked variants to suit your trailer’s braking setup.

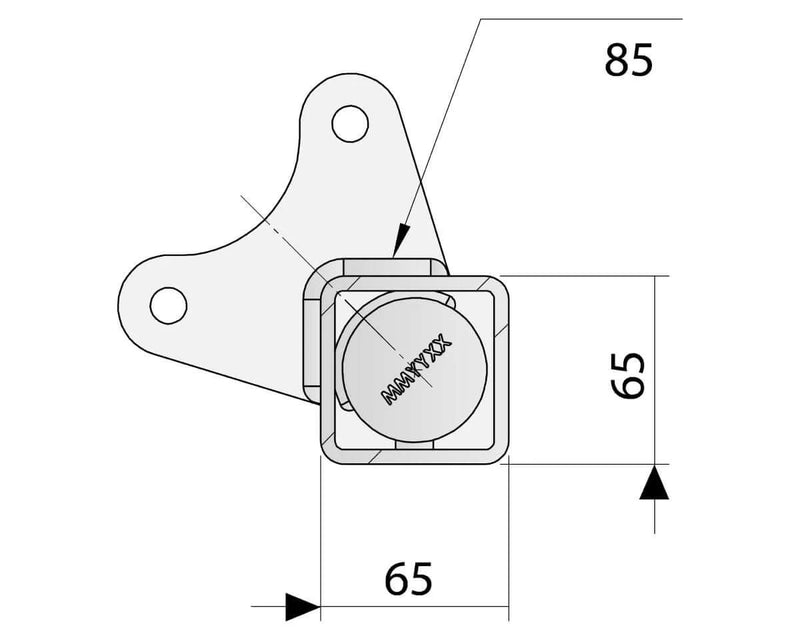

• Beam construction options: depending on capacity, built from 40 mm, 50 mm, or 65 mm square hollow box section for the right balance of strength and weight.
• Gull Wing bend depth (E): selectable at 60 mm, 90 mm, or 120 mm to match your frame geometry. See E in the reference image for details.
• Measurement requirements: C is the face-to-face distance from the outside face of one hub to the opposite hub, and D is the center-to-center distance of the springs mounted position.
• For Gull Wing axles, measurement E (bend depth) is essential to guarantee proper clearance and alignment with your suspension layout.
• Manufacturing approach: beam axles are made to order and built to your exact specifications, ensuring a precise fit for your trailer.
• Lead time: please allow at least six weeks for production since this is a made-to-order part.
• Order process: download and complete the Axle Order Sheet (Adobe PDF) when placing an order to capture C, D, and E measurements and selected options.
• Hub options: if you need hubs fitted to the new axle, there are related products available to add this service during checkout.

Who this is for

Ideal for builders and operators who require a precise, durable, and configurable axle for heavy trailers, including agricultural, construction, and transport applications. The Gull Wing design helps maintain wheel alignment and clearance on tighter frame tolerances, while the multi-hub setup offers flexible wheel arrangements to adapt to different trailer layouts without compromising strength.

Why choose this Gull Wing Axle over alternatives

Unlike standard straight axles, this model is built to order with customizable C, D, and E measurements—ensuring a perfect fit for your existing trailer frame. The gull wing geometry provides enhanced ground clearance and more adaptable wheel mounting options, while galvanising protects against corrosion in demanding environments. The availability of braked versus non-braked configurations, and the choice of beam thickness (40/50/65 mm) means you can tailor stiffness, weight, and braking performance to match your specific load profile and road conditions.

Practical tips and insights

• Before ordering, have C, D, and E ready to ensure the axle is built to your exact specifications.
• Consider your typical load and terrain to decide between braked and non-braked versions; heavy road use benefits from braking options, while lighter, urban runs may not require them.
• If you’re planning to fit hubs, review the related products to add hub fittings during the same purchase for a seamless build.
• For coastal or salt-exposed environments, the galvanised finish provides extended life; if you expect frequent heavy use in extreme conditions, galvanised is a prudent choice.

Axle Order Sheet (Adobe PDF)
