Meet the Overlay Beam Axle - 1500kg - Galvanised - 65SQ from Trojan. Built for reliability in trailers and light commercial builds, this solid beam axle is purpose-designed for leaf-spring suspensions, delivering consistent alignment, added stiffness, and long-term corrosion resistance.

This part is made to order with a lead time of at least 6 weeks. When you order, download and complete the Axle Order Sheet (Adobe PDF) to capture your exact specifications and ensure a precise fit for your project.

Key features that set this 65SQ option apart:

• 65SQ square hollow box section provides enhanced rigidity and load-bearing performance compared to lighter designs.
• Available in galvanised finish for superior corrosion resistance, or bare metal if you’re applying your own coating.
• Options include braked and non-braked configurations to match your trailer’s braking system and legal requirements.
• Designed to suit leaf spring suspensions, with multiple beam configurations (straight, drop, gull wing) to cover a wide range of applications.
• Capable of integration with hubs (hubs can be fitted to the new axle—see related products below).
• Customizable to your needs, with precise C and D measurements required for an exact fit.

Practical measurements you’ll specify for a perfect fit:

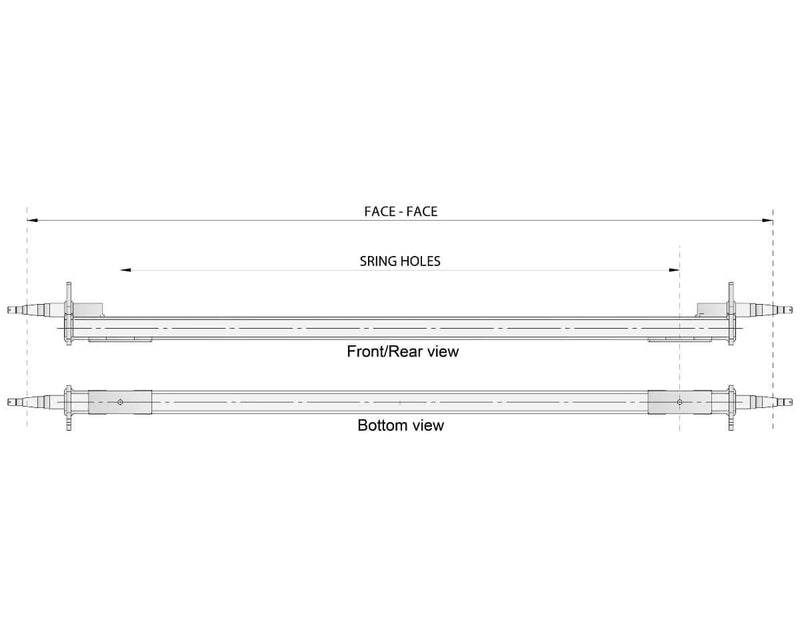

• C (face-to-face): distance from the outside face of one hub to the opposite hub.
• D (center-to-center): distance from the center of the springs’ mounted position on the axle.

Who benefits most from the Overlay Beam Axle 65SQ? trailer builders, agricultural and industrial equipment operators, and anyone aiming for predictable load distribution, improved tracking over uneven terrain, and a robust, long-lasting axle that stands up to the elements. The galvanised finish helps withstand frequent exposure to moisture, dirt, and road salts, reducing maintenance needs over time.

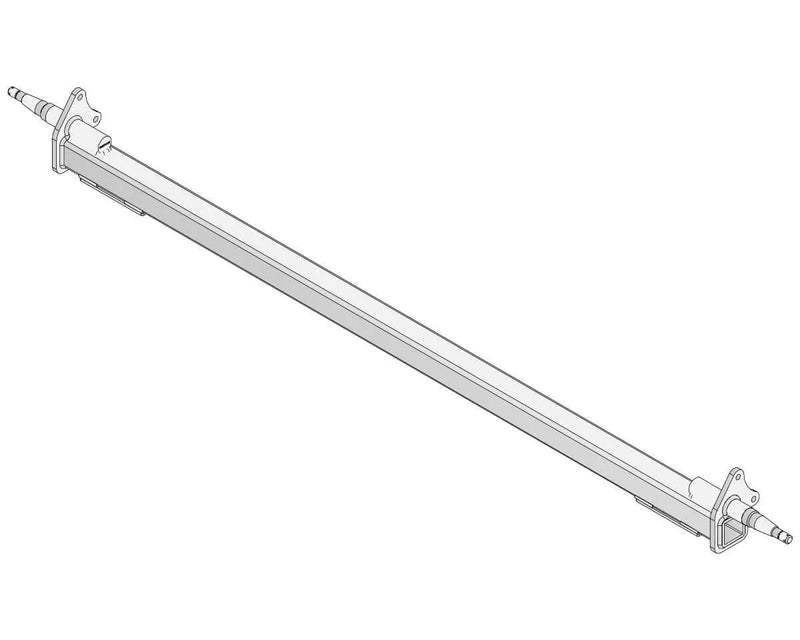

Visual reference from multiple angles shows the same high-quality design in action, emphasizing the straight beam aesthetics and mounting interfaces you’ll rely on during installation.

Why choose Trojan? We manufacture a wide range of beam axles tailored to your specifications, with rigorous build standards and a clear, transparent ordering process. By choosing a made-to-order axle, you get a product that fits your exact hub spacing, spring mounting, and braking configuration—minimizing on-site adaptation and maximizing trailer performance.

Axle Order Sheet (Adobe PDF)
