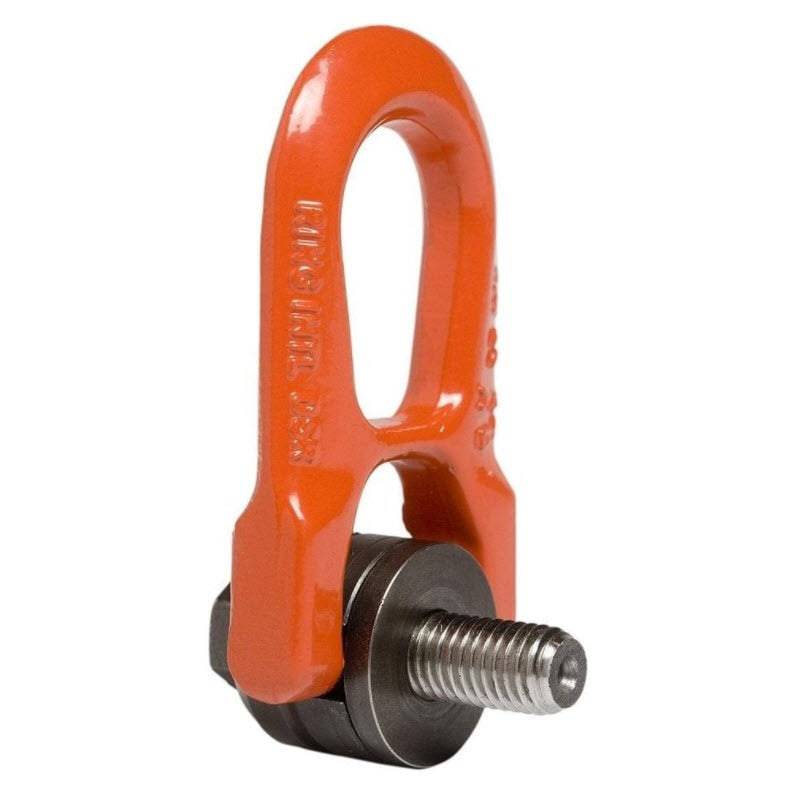

UNC Double Swivel Ring - Codipro GradUP 3900lb

UNC Double Swivel Ring - Codipro GradUP - Unique Identification Huge 5-1 Safety Factor 3900lb Product Number DSR-U-058

UNC Double Swivel Ring - Codipro GradUP 3900lb

Features

• Unique Identification
• Manufactured Inhouse Luxembourg
• International Standards EN1677-1
• Full Factory Traceability
• Certificate supplied with Product
• Huge 5-1 Safety Factor
• 180 Degree Pivot Under Load
• 360 Degree Swivel Under Load
• Listed WLL at 0 and 90 Degrees
• Rating and Thread; 3900lb [1.76T]/5/8ftUNC L27mm

The Following Sizes are DNV APPROVED Offshore Applications

DSR UNC3/8ft, 12ft, 5/8ft, 3/4ft, 1.0ft and 1.1/4ft

DNVGL-ST-0378 Certificate No.TAS00001ZG

These security rings are specially designed for turning charges.

They are able to solve all hoisting situation, whether with a skew or axial lifting, and /or stowing.

• Their design allows use in allows direction and lateral fixing.
• These rings have to be screwed following the tightening torque specified by the manufacturer.
• Rings with low overhand would be preferable.
• Painted in red, they remind security [product of at least class 8].

The engravings state;

• The EC reference if compliant to EC directives;
• The class;
• The manufacturer brand and the blacksmith' mark, when forged;
• The batch n degrees;
• The diameter;
• The maximum CMU/WLL.

The delivery will be completed by;

• The recommendations for use;
• The certificate of conformity

Preferably use rings whose axes are inseparable from the equipment, in order to avoid replacing the axis by an inadequate one.

Fixed lifting rings;

Traditional DIN 580 rings are meant for linear tractions in the direction of the fixing bolt. They are forbidden for tractions perpendicular to the direction of the fixing bolt.

Why?

• They can easily unscrew when handling and move in the direction of traction.
• They can possibly twist or break [increased risk if the ring was already bent in opposite direction, that's why bended rings have to be removed.].
• Loss of at least 75percent of their effectiveness as soon as the traction is no longer linear.

When using fixed rings, preference will be given to rings;

• With the following engravings [to meet prevailing standards]:
• Manufacturing batch
• Blacksmith reference
• Type of material
• Diameter
• Supplied with a certificate of conformity [specifying the material analysis]

PLEASE READ CAREFULLY TO ENSURE THAT THIS ITEM MEETS YOUR SPECIFIC NEEDS

THIS ITEM IS SHIPPED DIRECTLY FROM OUR SUPPLIER - PLEASE CONTACT US IF UNSURE OF SHIPPING

Product No. DSR-U-058
