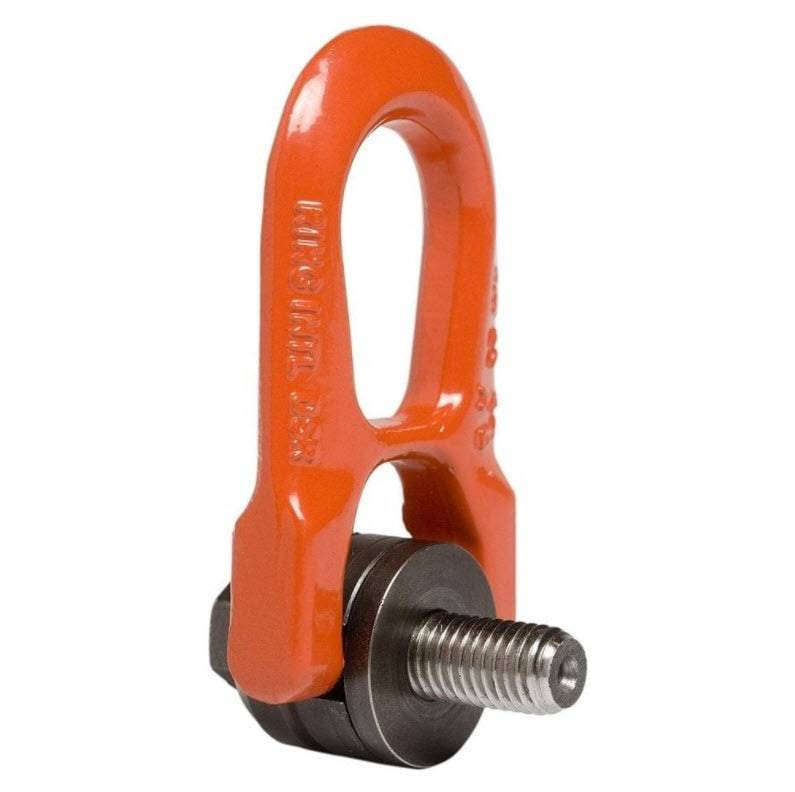

UNC Double Swivel Ring - Codipro GradUP 5250lb
UNC Double Swivel Ring - Codipro GradUP 5250lb
Action Outdoors Shop
1/348 Rosebank Road
Avondale
AUK
Auckland 1026
New Zealand
UNC Double Swivel Ring - Codipro GradUP - Unique Identification Huge 5-1 Safety Factor 5250lb Product Number DSR-U-075
UNC Double Swivel Ring - Codipro GradUP 5250lb
Features
- Unique Identification
- Manufactured Inhouse Luxembourg
- International Standards EN1677-1
- Full Factory Traceability
- Certificate supplied with Product
- Huge 5-1 Safety Factor
- 180 Degree Pivot Under Load
- 360 Degree Swivel Under Load
- Listed WLL at 0 and 90 Degrees
- Rating and Thread; 5250lb [2.38T]/3/4ftUNC L30mm
The Following Sizes are DNV APPROVED Offshore Applications
DSR UNC3/8ft, 12ft, 5/8ft, 3/4ft, 1.0ft and 1.1/4ft
DNVGL-ST-0378 Certificate No.TAS00001ZG
These security rings are specially designed for turning charges.
They are able to solve all hoisting situation, whether with a skew or axial lifting, and /or stowing.
- Their design allows use in allows direction and lateral fixing.
- These rings have to be screwed following the tightening torque specified by the manufacturer.
- Rings with low overhand would be preferable.
- Painted in red, they remind security [product of at least class 8].
The engravings state;
- The EC reference if compliant to EC directives;
- The class;
- The manufacturer brand and the blacksmith' mark, when forged;
- The batch n degrees;
- The diameter;
- The maximum CMU/WLL.
The delivery will be completed by;
- The recommendations for use;
- The certificate of conformity
Preferably use rings whose axes are inseparable from the equipment, in order to avoid replacing the axis by an inadequate one.
Fixed lifting rings;
Traditional DIN 580 rings are meant for linear tractions in the direction of the fixing bolt. They are forbidden for tractions perpendicular to the direction of the fixing bolt.
Why?
- They can easily unscrew when handling and move in the direction of traction.
- They can possibly twist or break [increased risk if the ring was already bent in opposite direction, that's why bended rings have to be removed.].
- Loss of at least 75percent of their effectiveness as soon as the traction is no longer linear.
When using fixed rings, preference will be given to rings;
- With the following engravings [to meet prevailing standards]:
- Manufacturing batch
- Blacksmith reference
- Type of material
- Diameter
- Supplied with a certificate of conformity [specifying the material analysis]
PLEASE READ CAREFULLY TO ENSURE THAT THIS ITEM MEETS YOUR SPECIFIC NEEDS
THIS ITEM IS SHIPPED DIRECTLY FROM OUR SUPPLIER - PLEASE CONTACT US IF UNSURE OF SHIPPING
Product No. DSR-U-075
F - 14.12.21
