Vetus Bow Thruster 35Kgf

Bow Thruster 35Kgf - Vetus 35Kgf unit is one of the few thrusters for this class of vessel with a 150mm diameter. Code: BOW35

Bow Thruster 35Kgf

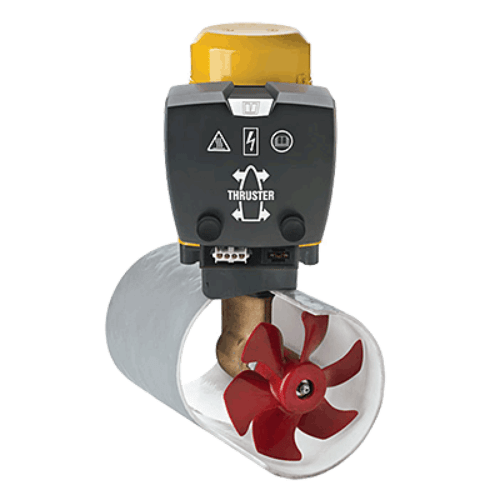

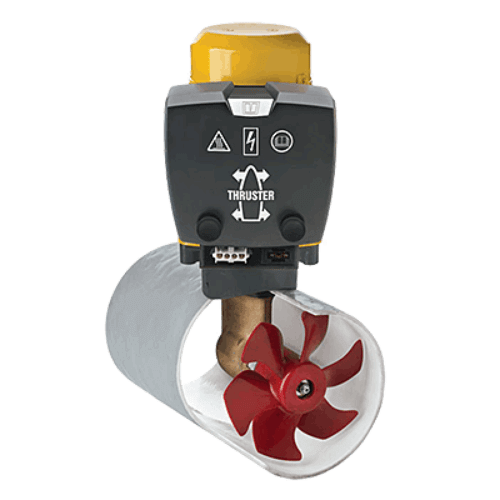

VETUS 12v bow thruster with 35 kg thrust force

Suitable for boats from 6.5 – 10 metres in length.

The Vetus 35Kgf unit is one of the few thrusters for this class of vessel with a 150mm diameter tunnel - making it much easier to fit than competitors with standard 185mm units.

Features

• A single propeller creates less flow disturbance in the tunnel
• 4 minute continuous run time
• The VETUS unique propeller blade design minimises cavitation noise
• Spiral gears minimise transmission noise
• Bronze streamlined lower leg
• The use of a flexible coupling between tailpiece and motor eliminates vibration
• A strong synthetic propeller eliminates corrosion and reduces weight
• Systems are easy to install, supplied with clear installation and operation instructions
• All VETUS maneuvering systems meet the EMC requirements

Specifications:

• Technical Data
• Model Details
• Thrust:35 Kgf
• Power kW (hp):1.5 (2)
• Reversible DC Motor:yes
• Tunnel Internal Diameter:150 mm
• Weight (Excluding Tunnel):12 Kg

Power Details

• Current Consumption: 205 Amps
• Operating Time (max/hr): 4 minutes
• Main Fuse ('Slow Blow'): 160 Amps
• Battery Ah Min/Max: 1 x 55 / 1 x 108
• Battery Cables (m/mm²): 0-11/35
• Battery Switch: 250

NZ Code BOW35

THIS ITEM IS SHIPPED DIRECTLY FROM OUR LOCAL SUPPLIERS
