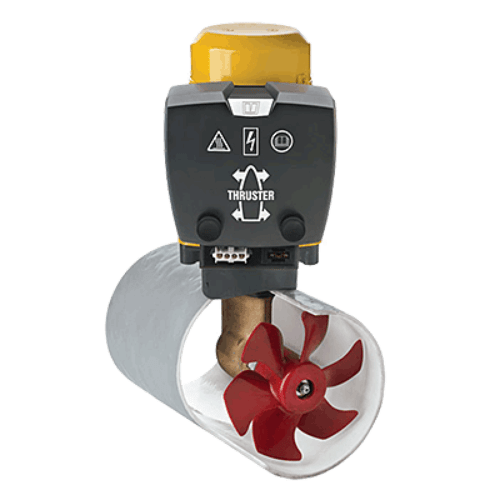

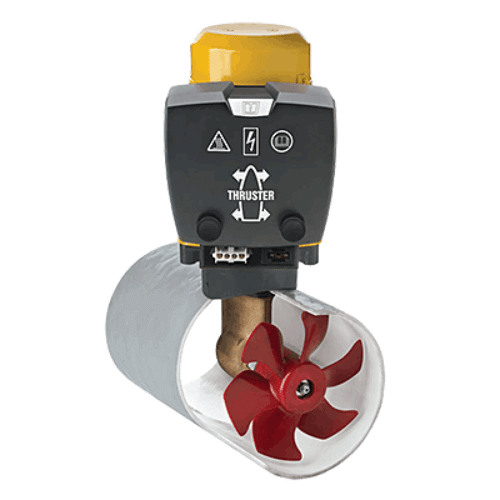

Vetus Bow Thruster 60 Kgf 3kW 12v

Bow Thruster 60 Kgf 3kW 12v Product Code BOW60 The Vetus 60Kgf unit designed to replace older Vetus 50Kgf units

Bow Thruster 60 Kgf 3kW 12v

The Vetus 60Kgf unit designed to replace older Vetus 50Kgf units, having the same 185mm diameter tunnel.

Features:

Dimensions (mm) – See Image

A 143.5

B 397

C 77

D 370 / 740

E 160

F 130 Diameter

G 185

H 185 Diameter

VETUS WARRANTY

3 years warranty on equipment and 5 years warranty on engines

Specifications:

• Thrust: 60 Kgf
  Power kW (hp): 3 (4)
  Reversible DC Motor: Yes
  Tunnel Internal Diameter: 185 mm
  Weight (Excluding Tunnel): 22 Kg

Power Details

• Current Consumption: 280 Amps
  Operating Time (max/hr): 5 minutes
  Main Fuse ('Slow Blow'): 200 Amps
  Battery Ah Min/Max: 1 x 108 / 1 x 143
  Battery Supply Cables: Up to 11 meters – 50 mm²
  Battery Switch rating: 250 A

NZ Code BOW60

THIS ITEM IS SHIPPED DIRECTLY FROM OUR LOCAL SUPPLIERS

6-2024
