Advansea

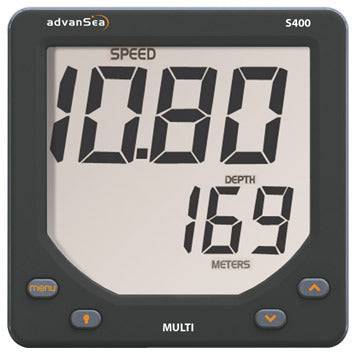

advanSea Multi S400 - Display Only
Sent from NZ Supplier (1-2 Days)
advanSea Multi S400 Display Only - Uses cutting edge technology to provide accurate data. Product Code: PL57750
advanSea Multi S400 Display Only
Features
- advanSea Multi S400
- All the functions of S400 Depth and Speed
The advanSea S400 series uses cutting edge technology to provide accurate data for cruisers or racers.
- Accuracy, optimal legibility, flexibility and ease of installation are the key benefits of the S400 series, together with easy intuitive operation with direct function access.
- LCD screens with wide-angle viewing and supersize digits for unmatched visibility. Watertight display facia (IP66); displays feature an anti-fogging coating for optimal safety even in extreme conditions.
- The S400 series is available with a choice of compatible transducers manufactured by Airmar or Plastimo. The instruments can also operate as "stand-alone" with intelligent transducers or an NMEA0183 source.
The advanSea depth, speed, and multi-instruments are fully compatible replacements for the Navman 3100 and Northstar 310 series, as the same transducers can be used.
The advanced Multi S400 offers:
All of the functions of S400 Depth and Speed in one unit.
- Lower line: 22 mm high digits
- Upper line: 32 mm high digits
- Depth and speed trend indication.
- Proprietary Bus interface and NMEA0183 input/output
- Simulation mode
- advanced instruments come with a 2-year warranty, with worldwide support from the Plastimo network.
Specifications:
Common features
- External unit dimensions: 112 x 112 mm
- Operating voltage: 10 V to 16.5 V
- Display power consumption: Below 150 mA Incl. backlighting
- Operating temperature: -10 to + 50° C
- Storage temperature: -20 to +60° C
- Drilling Ø: 48 mm
- Fixing: Rear locking collar
- “O” ring for bulkhead mount: Yes
- Buzzer/external alarm output: Yes / Yes
- Screen: Monochrome LCD, TN technology (Twisted Nematic)
- Backlit keys: Yes
- Backlit screen: Yes, amber, 5 levels (Off, 1, 2, 3, 4)
- Anti-fogging screen: Yes
- LCD: Transflective
- Waterproof rating: IP66 front face
- Intuitive menu: Yes
- Weather cover: Yes
- Simulation mode: Yes
Instruments specific features
- Depth range: 0.5 to 199 m dependent on transducer
- Water speed: 0 to 60 knots
- Depth speed: Yes if connected through NMEA0183
- Depth resolution: 0.1 m up to 19.9 m / 1 m from 20 to 199 m
- Speed resolution: 0.01 at 19.99 kts / 0.1 from 20 to 60 knots
- Display damping: 1 - 30 steps
- NMEA0183 input ports: 1
- NMEA Input sentences: VHW/ VTG/ DPT/ VLW/ MTW/ RMC/DBT
- NMEA0183 output ports: 1
- Output sentences: VHW/ VLW/ MTW/ DBT/ DPT
- Proprietary bus: Half-Duplex series connection (38400 bauds on one wire)
- Countdown: Yes
- Digits size: Upper line: 32 mm Lower line: 22 mm
- Units: °F & °C - Feet - Metres - Knots - Km/hr - Miles/hr - V - Miles - Km
- Alarms: Deep & shallow speed/ High & low depth / Low battery
advanced instruments come with a 2-year warranty, with worldwide support from the Plastimo network.
Product Code PL57750
