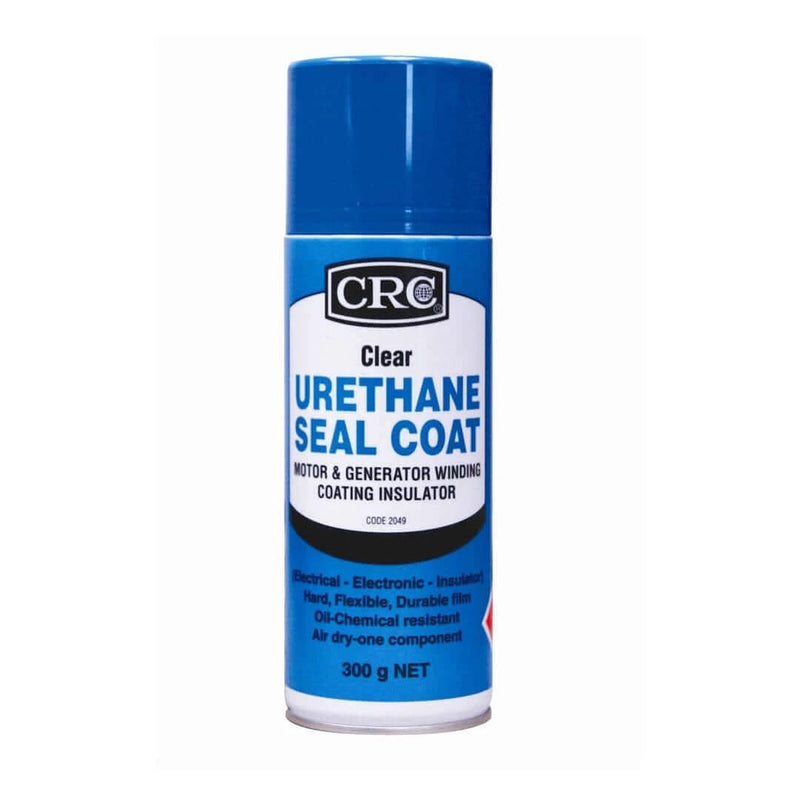

CRC Clear Urethane Seal Coat Aerosol 300g For Electricians Fast Drying Non Conductive Insulation Of Windings

CRC Clear Urethane Seal Coat Aerosol 300g (2049) delivers a stable, single‑component polyurethane coating engineered for electrical and electronic applications. This fast-drying, non-conductive film forms a hard, flexible shield that protects windings, coils, and other components from moisture, shock, and harsh environments without compromising performance.

Why this coating stands out

• Ready-to-use, no mixing required — eliminates waste and cleanup while saving time on assembly lines or fieldwork.
• Clear, see‑through finish — ideal when visual inspection is essential and aesthetics matter for inspected components or housings.
• High dielectric strength — protects electrical circuits and windings while maintaining reliable insulation in demanding operating conditions.
• Outstanding environmental and mechanical protection — resists water/moisture ingress, salt air, abrasion, and aggressive chemical atmospheres to significantly extend component life.
• Durable yet flexible film — cushions against vibration and thermal cycling without cracking or delaminating.
• Wide temperature tolerance — performs up to 100°C, maintaining coating integrity across a broad thermal range.
• Excellent outdoor performance — corrosion resistance remains effective outdoors for up to two years under appropriate exposure conditions.
• Fast handling, complete cure — dust-free to handle in 15–30 minutes with full cure in 72 hours, minimizing downtime.
• Aerosol convenience — easy application with minimal cleanup and waste; ideal for small parts, assemblies, and targeted touch-ups.

What you can protect with CRC Clear Urethane Seal Coat

• Electric motor windings, armature coils, commutator ends, stator coils, terminals, and housings
• Transformers ends, bus bars, solenoids, cables and wires, and printed circuit boards
• Components exposed to atmospheric effects, condensation, or moisture ingress
• Terminal strips, screw connections, and switch boxes requiring reliable moisture sealing

Practical guidance for use

1. Ensure surfaces are clean, dry, and free of oils, dust, or previous coatings before application.
2. Shake the can well to evenly disperse the resin and additives.
3. Apply in smooth, even sweeps from a consistent distance (about 20–25 cm) to create thin, uniform coats. Avoid heavy applications that can sag or run.
4. For best results, apply multiple thin coats rather than a single thick layer; allow brief ventilation between coats.
5. Handle time is typically 15–30 minutes; plan for a full 72 hours to reach maximum cure and insulating performance.
6. Use in a well-ventilated area and observe all safety guidelines for solvent-based coatings.
7. Storage should be upright with the cap securely closed to preserve spray performance.

Specifications at a glance

• Product: CRC Clear Urethane Seal Coat Aerosol
• Weight: 300 g can
• Color: Clear
• Type: Single-component polyurethane coating
• Film properties: Hard, durable, flexible, non-conductive
• Dielectric: High dielectric strength suitable for electrical/electronic applications
• Temperature range: Up to 100°C
• Outdoor durability: Up to 2 years corrosion resistance
• Drying times: Handle in 15–30 minutes; full cure in 72 hours
• Form: Aerosol spray for easy, precise application; no mixing required

With CRC Clear Urethane Seal Coat Aerosol 300g, you gain a reliable, transparent protective coating that preserves electrical performance while extending component longevity in challenging environments. Its combination of rapid handling, strong insulation, and outdoor resilience makes it a practical choice for technicians, assemblers, and maintenance professionals tackling motor windings, coils, and circuitry where visibility and protection matter.
