Lenco
Lenco 101 XDS Short Actuator
Sent from NZ Supplier
Sent from NZ Supplier (1-2 Days)
Quantity:
Lenco 101 XDS Short Actuator - This is the shortest Actuator Lenco Manufacture - Corrosion proof Vandar Mounts
Lenco 101 XDS Short Actuator 12V
Features
Lenco 101 XDS [Short] Power Cylinder
This is the shortest Actuator Lenco manufactures.
- The top cap gland seal sheaths the actuator cable outer jacket and internal conductors for maximum waterproofing.
- Corrosion-proof Vandar mounts
- Stainless steel ram won’t flex, even under extreme loads
- Double O-ring for maximum protection
- Ballscrew rotates freely on 12 ball bearings at both ends of its stroke, so there’s no need for complicated limit switches and clutches.
- Self-locking ballscrew locks into position and will not drift
- Precision moulded, powdered metal, high alloy gears provide high accuracy, high wear resistance, and high strength for long life
- Tough, high-torque motor easily transfers 750 lbs
- Available in the 12-volt motor. Kit includes a 12-volt motor
- High-impact, ultraviolet-resistant nylon 66, 50 per cent glass fibre reinforced thermoplastic housing
- Corrosion-proof Vandar cap and mount stand up to severe loads
- Solid stainless steel billet end available for heavy-duty, extreme duty, and super-strong applications

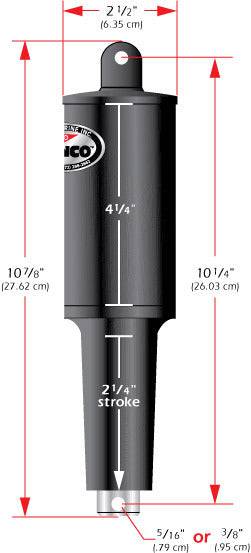

Specifications
- Stroke 2-1/4inch[5.72 cm]
- Length overall10-7/8 inch[27.62 cm]
- Length pin to pin 10-1/4inch [26.03]
- Diameter [upper housing] 2-1/2 inch[6.35]
THIS ITEM IS SHIPPED DIRECTLY FROM OUR SUPPLIERS
PRODUCT CODE 5617
