Lenco 102 XD [Extended] Actuator 12 volt

Lenco 102 XD [Extended] Actuator - Stainless steel ram won’t flex, even under extreme loads - Product Code 5617L 12v

Lenco 102 XD [Extended] Actuator

Features

Lenco 102 XD Actuator

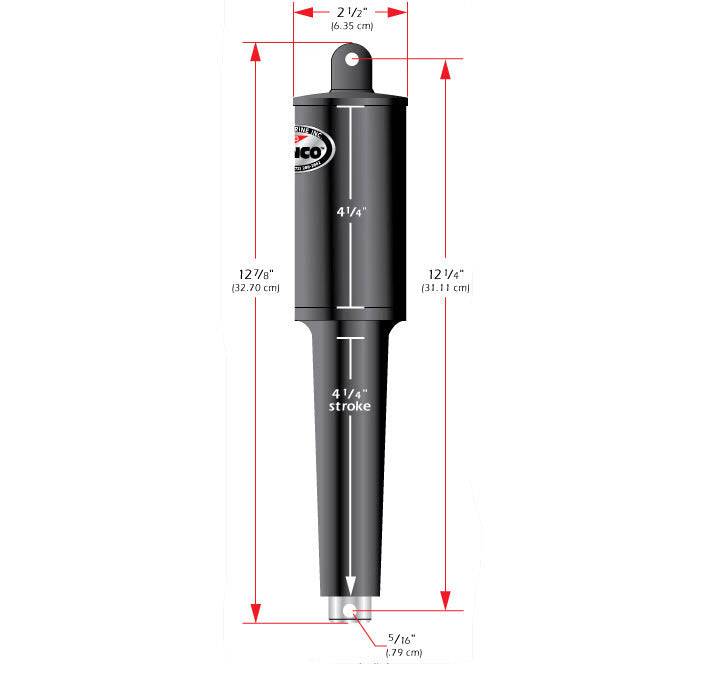

Stroke: 4-1/4in [10.8 cm]

Length overall- 12-7/8in [32.70 cm]

Length pin to pin- 12-1/4in [31.11 cm]

Diameter [upper housing] 2-1/2in [6.35 cm]

Mounting hardware- 5/16in [.79 cm]

Lenco Part No.15060-001 [102-2] 12 Volt w/6'[1.83m] leads with Deutsch connectors [replacement length]

• Top cap gland seal sheaths the actuator cable outer jacket and internal conductors for maximum waterproofing.
• Corrosion-proof Vandar mounts
• Stainless steel ram won’t flex, even under extreme loads
• Double O-ring for maximum protection
• Ballscrew rotates freely on 12 ball bearings at both ends of its stroke, so there’s no need for complicated limit switches and clutches.
• The self-locking ballscrew locks into position and will not drift
• Precision moulded, powdered metal, high alloy gears provide high accuracy, high wear resistance, and high strength for long life
• Tough, high-torque motor easily transfers 750 lbs
• Available in 12- motor. The kit includes the 12-volt motor
• High-impact, ultraviolet-resistant nylon 66, 50 per cent glass fibre reinforced thermoplastic housing
• Corrosion-proof Vandar cap and mount stand up to severe loads
• Solid stainless steel billet end available for heavy duty, extreme duty and super strong applications

THIS ITEM IS SHIPPED DIRECTLY FROM OUR LOCAL SUPPLIER

NZ Code 5617L-ASB
