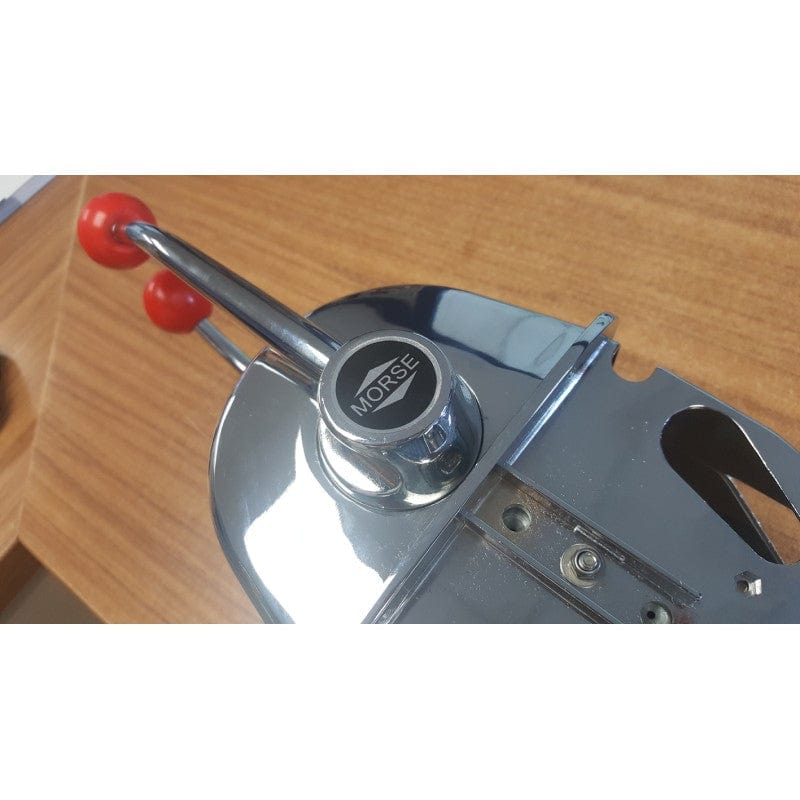

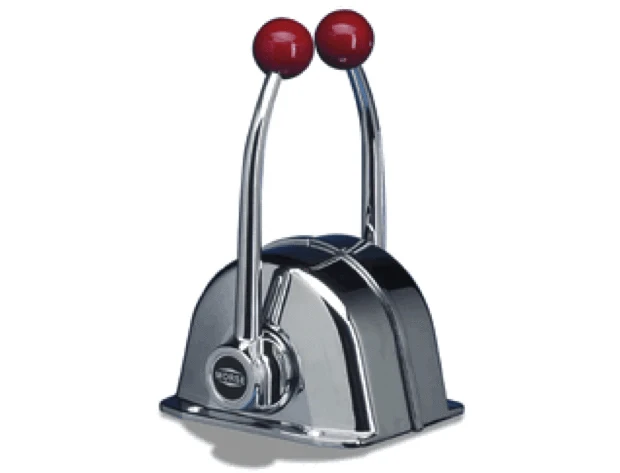

Morse Twin Engine Mt-3 Engine Control

MT-3 Top Mount Controls – Suitable for inboards with hydraulic gearboxes, outboards, and stern drives. Product Code 60059

Morse Twin Engine Mt-3 Engine Control

Features

MT-3 Top Mount Controls – Teleflex Morse by Seastar

Dual Function Controls

The MT-3 control has become the industry standard incorporating classic binnacle styling with dual function levers and a high-quality of finish. Suitable for inboards with hydraulic gearboxes, outboards, and stern drives.


Not suitable for engines with heavy governor loads (ie. Gardner diesel).


Features:

• Each lever operates both shift and throttle (two levers for two engines)

• Easy distinctive action with positive detents in forwarding/neutral/reverse

• Handle pulls out to operate neutral throttle warm-up

• Can be mounted left or right hand

• Can only shift at low RPM, thereby protecting the gearbox

• Optional neutral safety switch to ensure engine only starts when in neutral

• Dual station capability (requires exchangers)

• Chrome housing gives a quality look to your saloon, cabin, or flybridge

• Three shift stroke adjustment positions.

• Built-in friction drag helps prevent slippage and throttle creep while underway


Cables:

Accepts universal 30/33 series cables, CC230, CC330, CC332, CX632, and CCX633. Single engine controls can be installed with 40/43 series cables for heavy-duty applications; fittings for these cables are to be ordered separately. Due to internal space limitations, twin engine control cannot use 40/43 series cables.


Materials

• Marine quality chrome-plated die-cast zinc alloy housing

• Zinc alloy mechanism

• Stainless steel link plates

THIS ITEM IS SHIPPED DIRECTLY FROM OUR LOCAL SUPPLIER

Product No. 60059

MM-052023
