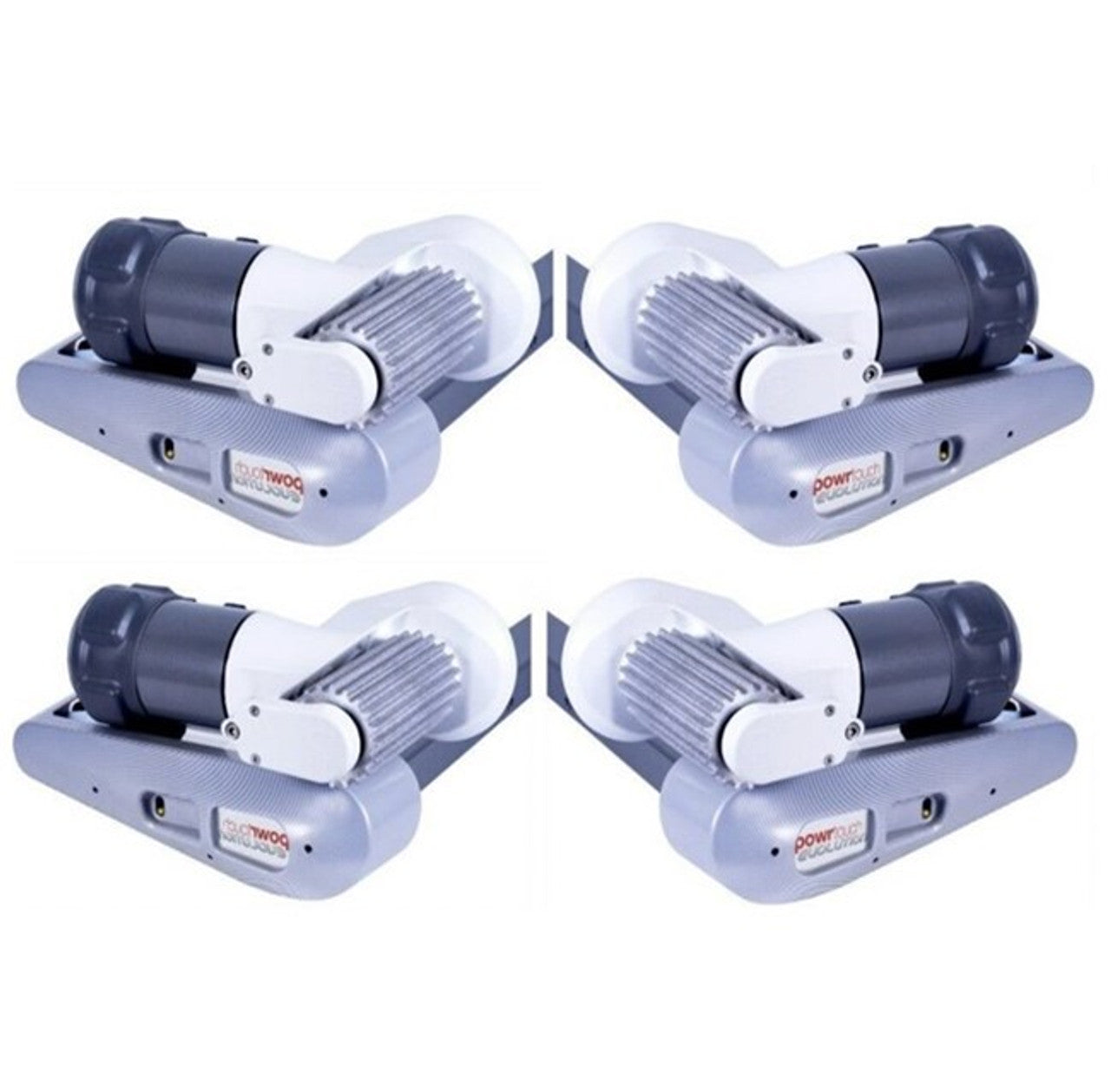

Powrtouch Twin Axle Caravan Mover (4 Motor Auto)

Powr Touch Evolution - Twin Axle - Four Motor AWD Automatic - State of the art 'four-pole' Electric Drive Motor

Powr Touch Evolution - Twin Axle - Four Motor AWD Automatic

Features

The Powrtouch Evolution is a next-generation caravan mover designed and developed in the UK. The all-new caravan mover system extensively uses lightweight alloy materials and an ultra-efficient gearbox, combined with a new state-of-the-art 'four-pole' electric drive motor, giving it significantly increased power to the drive rollers, making it the lightest and most powerful caravan mover available. The innovative dynamic roller location mechanism moves the rollers smoothly and directly onto the tyres, improving grip and driving power by eliminating roller slippage. This innovative new movement design also significantly improves the performance and reliability of automatic operation (Powractuation) of the drive rollers to the tyres.

Powrtouch Evolution All-Wheel Drive - drives all four wheels of a twin-axle caravan.

With the addition of a further two driving wheels, this feature makes the Powrtouch Evolution 'All Wheel Drive' the ultimate caravan mover system for the highest possible manoeuvrability of a twin axle caravan- this is a MUST for those tight turns in limited space.

• Our Powrtouch Evolution for twin axle caravans will fit all standard Alko and BPW chassis with or without shock absorbers, including smaller caravans AND trailer tents

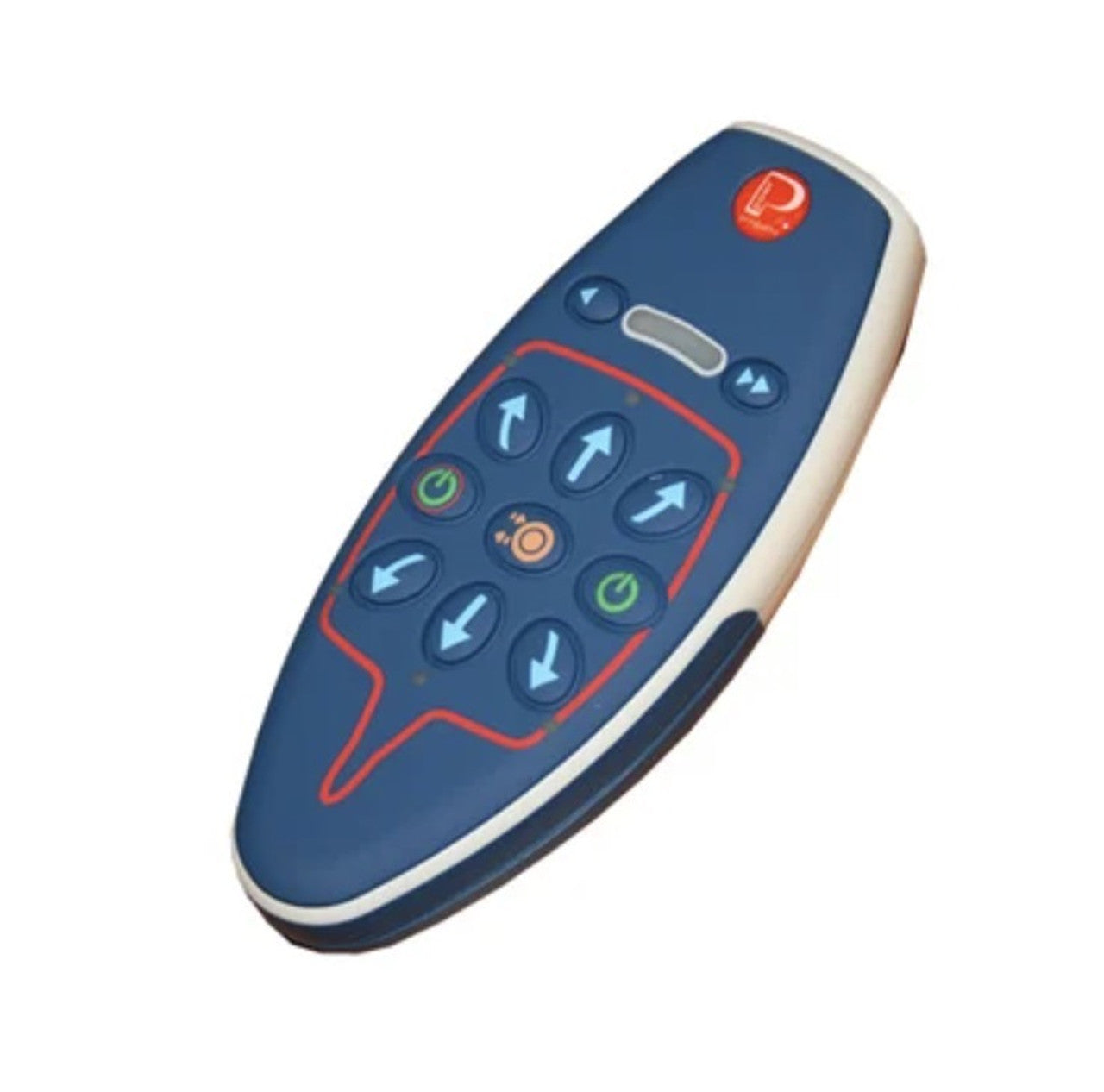

• Automatic roller engagement is controlled from the handset for a simple and easy life. Eliminating the need to engage the rollers manually
• The 5-stage planetary gearbox on roller engagement for maximum power and grip
• Tool supplied to retract rollers in case of a flat battery manually
• High strength, lightweight and compact construction using aircraft and marine-grade aluminium alloy materials
• High power four poles double wound motor delivering maximum power to the rollers
• 20 Point lightweight aluminium rollers for optimum grip
• DMC technology allows the ultimate precision manoeuvring in tight spaces
• Precise and accurate soft start Powr drive control giving smooth mm by mm manoeuvring
• Highly efficient gearbox design for efficient operation and battery life
• All metal high-strength sealed gearbox. Multifunction handset and base unit warning indication system
• 360-degree directional precision control within motion directional adjustment
• Comprehensive directional performance, all with 4-speed settings
• Designed and manufactured to the highest standards, including ISO 9001 to 2008 and TUV Standards. NCC Compliant
• Our factory-trained staff fully supports this industry-leading guarantee
• Tested for 2800kgs on a 1 in 4 slope - levelling ramps

NZ CODE RVP 2833

Specifications:

• Roller Engagement: Automatic
• Operating Voltage: 12V
• Average Current Consumption: 40A
• Max. Current Consumption: 160A
• Speed: 280mm/second
• Weight: Approx. 70kg
• Permissible Overall Weight on 25% gradient: 2800kg
