StressFree Maxi Drum Winch Free Fall

Maxi Free Fall Product Code-SFNGMAXI Stress-free anchor retrieval from this compact winch.

Maxi Free Fall

Features

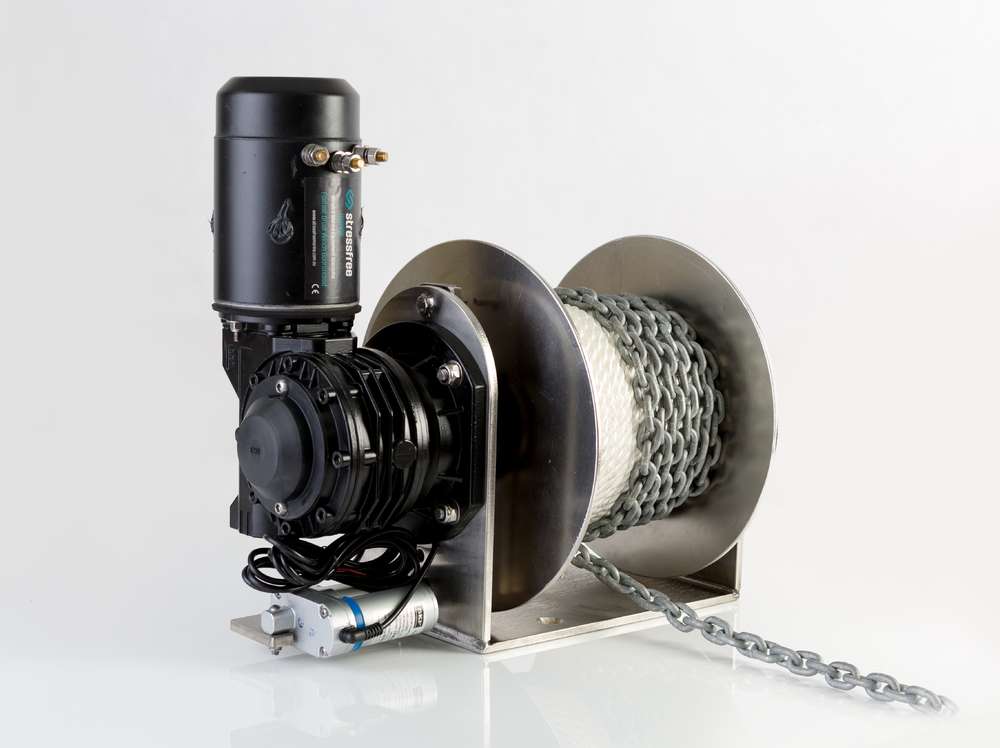

NG Series Maxi Standard Stress-Free Drum Winch with Free Fall

Stress-free anchor retrieval from this compact winch.

•Suitable for boats 7 metres plus

• 1400 watt motor

• All 316 marine-grade stainless steel

• Baseplate 8mm marine grade stainless steel in three parts and welded

• The diameter of the drum is 300mm

• Maximum lifting capacity 275 kilos -when the drum diameter is small

• Holding capacity at anchor is 3600 kilos

• Rated to 135 amps

• Normal running the Stress-Free will use 25 – 30 amps and underload up to 55 amps

• Recommend dual batteries with the battery switch on BOTH

• Can be deck-mounted

The gearbox mounting holes in the mounting bracket allow the motor and drive to be installed at 4 angles to suit different anchor well configurations. Another 8 adjustment angles are available at 30 degrees and 45 degrees from each of the basic 4 mounting holes.


NB-The chain length can be lengthened or shortened to meet individual needs. In these situations, the amount of rope must be tailored to ensure a maintained clearance between the chain and the baseplate.

Drum capacity

• 85 metres of 10mm nylon plus 8 metres of 8mm short link chain OR
• 100 metres of 8mm double braid eye spliced to 5 metres of 10mm nylon plus 8 metres of 8mm short link chain

THIS PRODUCT IS SHIPPED DIRECTLY FROM Australian SUPPLIERS

NZ Code SFNGMAXI
