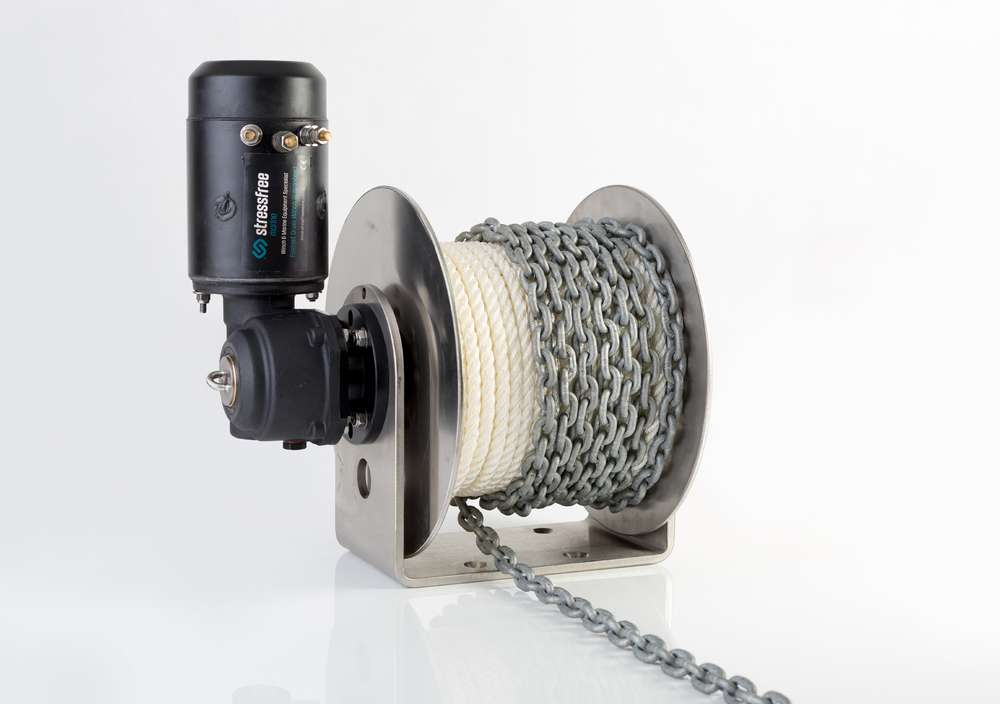

StressFree Midi Anchor Winch

Stressfree Midi Anchor Winch Product Code - SFMIDI Stress-free anchor retrieval from this compact winch.

Stressfree Midi Anchor Winch

Features

Midi Standard Stress-Free Drum Winch

• Stress-free anchor retrieval from this compact winch.
• Suitable for boats from 6 – 7 meters
• It fits neatly into the anchor well
• The motor can be mounted at 30, 45 and 90 degrees to suit the configuration of the anchor well
• 1400 watt motor
• Constructed from 316 marine-grade stainless steel
• Maximum lifting capacity 250 kilos (when the drum diameter is small)
• Holding capacity at anchor is 1800 kilos
• Rated to 135 amps
• Normal running the Stress-Free will use 25 – 30 amps and underload up to 55 amps
• To protect the motor, the circuit breaker will trip out if there is a power overload - for example if the anchor is stuck on the bottom
• Recommend dual batteries with the battery switch on BOTH
• Can be deck mounted

Drum capacity

• 85 metres of 10mm nylon plus 8 metres of 8mm chain OR
• 110 metres of 8mm nylon plus 8 metres of 8mm chain OR
• 200 metres of 6mm double braid eye spliced to 5 metres of 8mm nylon and 8 metres of 8mm short link chain

The gearbox mounting holes in the mounting bracket allow the motor and drive to be installed at 4 angles to suit different anchor well configurations.

Another 8 adjustment angles are available at 30 degrees and 45 degrees from each of the basic 4 mounting holes.

Why Stressfree -

• 36-month warranty – Recreational Use
• Proven 20-year history
• Fastest standard power up/power down winch on the market
• Emergency override
• Quality European-manufactured motor and gearbox
• Innovation is our game

NZ Code SFMIDI
