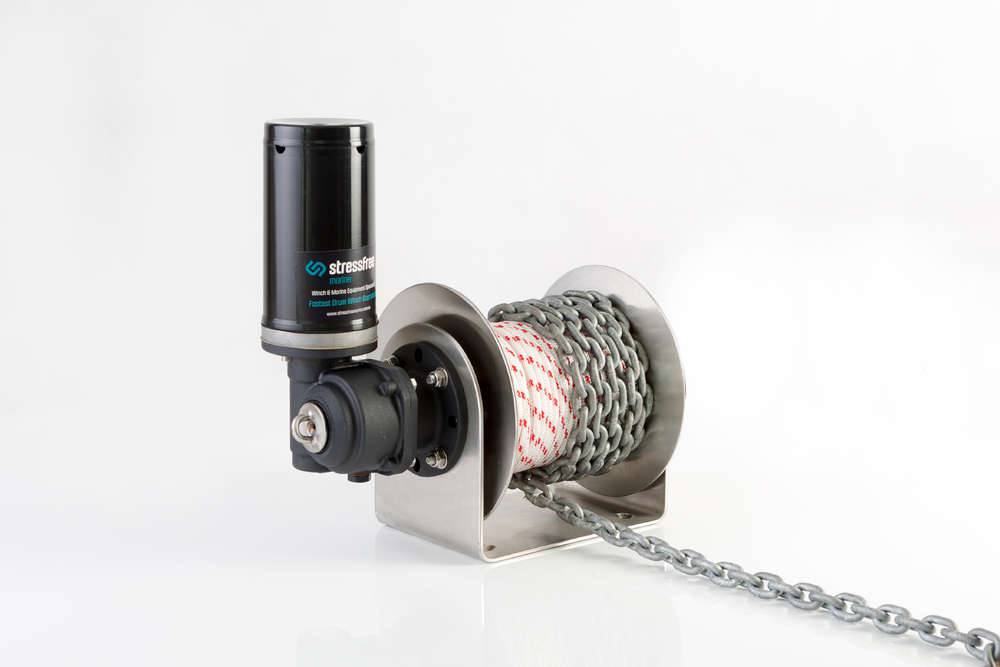

StressFree Mini Me Drum Winch
Sent from NZ Supplier (1-2 Days)
Stressfree Mini Me product Code - SFMINIME Suitable for boats up to 5.5m -18ft, Fits neatly into the anchor well
Stressfree Mini-Me Drum Anchor Winch
Features
- Suitable for boats up to 5.5m -18ft
- Fits neatly into the anchor well
- The motor can be mounted at 30, 45 and 90 degrees to suit the configuration of the anchor well
- 300-watt motor
- Constructed from 316 marine-grade stainless steel
- 18mm diameter solid stainless steel shaft
- Normal running the stress-free will use 30+ amps and under load up to 80 amps
- Maximum lifting capacity 100 kilos (when the drum diameter is small)
- Holding capacity at anchor is 500 kilos
- Rated to 80 amps
- To protect the motor, the circuit breaker will trip out if there is a power overload -for example if the anchor is stuck on the bottom
- Recommend dual batteries with the battery switch on BOTH Can be deck-mounted
Drum Capacity
65 meters of 6mm double braid plus 4 meters of chain.
The gearbox mounting holes in the mounting bracket allow the motor and drive to be installed at 4 angles to suit different anchor well configurations.
Another 8 adjustment angles are available at 30 degrees and 45º from each of the basic 4 mounting holes.
