Maxwell Marine

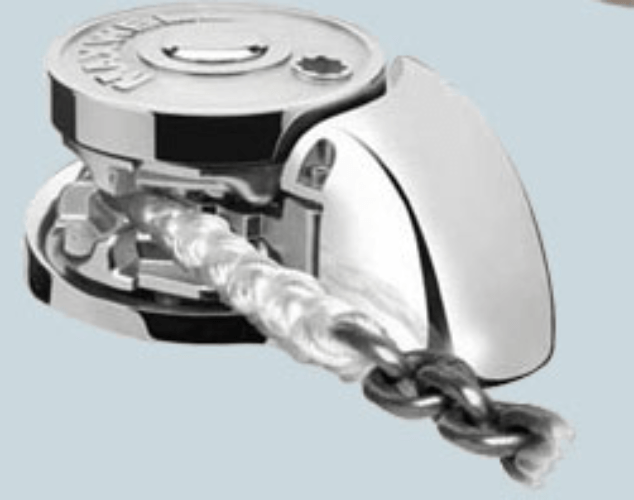

Auto Anchor Winch Windlass Maxwell RC12-12
Sent from NZ Supplier (1-2 Days)
Maxwell RC12-12-Effective with all-chain rodes for those who desire a Low Profile, elegantly styled windlass on their foredeck.
Auto Anchor Winch Windlass Maxwell RC12-12
Features
The all-new RC12 Series incorporates Maxwell's latest stylish innovation in automatic rope/chain technology. Retaining the classic open design styling more appropriate on larger boats, the RC12 Series represents the next generation of rope/chain windlass evolution in every respect.
What's included in the box
- Windlass/motor/gearbox/Emergency crank handle
- Reversing Heavy Duty Solenoid
- Up/Down Panel Control Switch
- 135 Amp Circuit Breaker/Isolator
1200 watt low profile stainless windlass
Suitable for DIN766 12mm chain (and other ) and rope combinations
Suitable for vessels up to 21.5m depending on vessel weight.
- The combined stainless steel and chromed bronze RC12 fully automatic windlass series is designed to effortlessly retrieve and deploy a 12mm (3/8in) short link chain and 20mm (5/8in) three-strand or 8-brait (plait) rope.
- A sleek, Low Profile version and a fluted stainless steel capstan drum version are available.
- A simple two-piece installation saves time and money and allows easy retrofitting without disassembly the windlass. The unique spacer tube design allows installation through virtually any deck thickness, and the multiple mounting positions and self-aligning gearbox ensure optimal location of gearbox and motor in virtually all installation situations.
- Full disassembly capability of the top works utilising only the handle provided and an Allen key.
- The RC12 is manufactured from marine-grade 316 stainless steel and chromed bronze for long-term durability. The heavy-duty stainless steel pressure arm, coupled with the unique rope/chain gypsy, is designed to effectively grasp the splice between rope and chain, giving the RC12 unparalleled performance.
- < UNK> Combined with a heavy-duty, large wire diameter, stainless steel pre-loaded spring, the pressure arm pivots on a trouble-free bearing, exerting maximum control pressure on the road and splice.
- The RC12 works just as effectively with all-chain rodes for those who desire a Low Profile, elegantly styled windlass on their foredeck.
- The huge, through-deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker.
- Cone-type clutch/brake mechanism permits manual, Free Fall anchoring.
- A sealed oil bath and marine-grade hard anodised alloy gearbox provide maximum output via a precision worm and worm wheel.
THIS PRODUCT IS DIRECTLY SHIPPED FROM OUR LOCAL SUPPLIER
