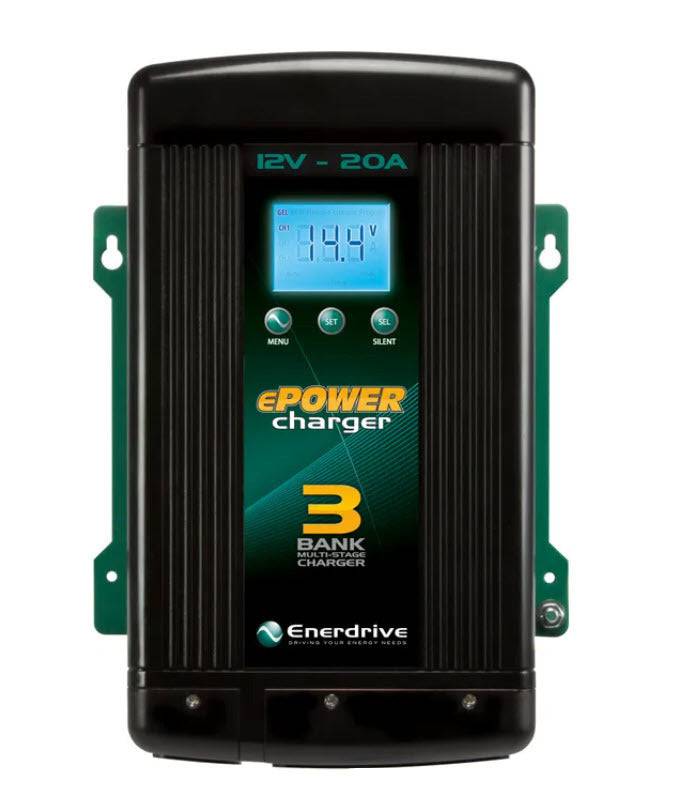

ePower 12V 20A Battery Charger- 3 Output
Sent from NZ Supplier (3-4 Days)
ePower 12V 20A Battery Charger- 3 Output -Fully automatic multistage 20A battery charger with the ability to charge 3 separate battery banks
ePower 12V 20A Battery Charger- 3 Output -
Features
- Multistage Charging -Fully automatic multistage 20A battery charger can charge 3 separate battery banks.
- Separate Battery Banks -Isolated charging design where battery bank one is separate from battery banks two and three.
- Programmable Battery bank -1 can be programmed with a different charge algorithm over banks 2 and 3.
- Current Control User - adjustable current output - e.g. Dial the 60amp unit back to run off a 1kVA generator.
- Smart Charging - The ePOWER 20A battery charger will regulate its output based on the loads connected to your battery banks.
- Wide AC Input Range-Operates on both 110V / 60Hz and 240V / 50Hz.
- LED Display-Easy to use 'set and select menu along with scrolling charger status.
- Silent Mode-Disables the cooling fan for total silent operation at night or whenever required. Activation reduces charge output by half and locks out a fan for 12 hours.
- Temperature Sensor-Battery temperature sensor is included with a 3-meter cable.
- 2 Year Warranty from an Australian company renowned for customer support.
The Enerdrive ePOWER 20A Battery Charger is a fully automatic, 'set and forget the charger. It is designed to quickly and accurately recharge your batteries using algorithms that help maximise service life. Multistage smart charging technology enables the charger to be connected to your battery banks permanently. As dictated by battery manufacturer’s recommendations, batteries require a multistage charge sequence for perfect, fast and accurate charging. Our ePOWER multistage smart 20A battery charger delivers four primary charge stages-
Stage 1 - Bulk or Boost Charge-The battery is charged at a full rated output current of the charger until the battery reaches its final charging voltage, known as its absorption voltage. In this step, around 80 per cent of the battery capacity is recovered as fast as possible.
Stage 2 -Absorption Charge-With the charger, the voltage held steady the remaining 20 per cent is replaced allowing the current to drop as the battery approaches its full charge.
Stage 3 -Float - Finally, in the float stage, the charger voltage is lowered and held at a constant and safe predetermined level. This prevents the battery from being overcharged while supporting any additional loads connected to the battery, such as DC lighting and refrigerators. This stage allows for the charger to be used as a DC power supply.
Stage 4 -Maintenance-This stage is a regular timed 'return to bulk'stage. After 7 days of constant operation in 'float', the Enerdrive ePOWER Battery Charger will switch the charger from float to bulk to agitate the batteries electrolyte helping to provide an extended service life.
Specifications
Charger Output
Output Current - Maximum - 20A
Output Voltage Range
- Charge-14.2 – 15.5 V
- Float-13.4 – 13.8 V
- – Equalize-16.0 V
- Charging Control-Four stages -Bulk/Absorption/Float/Maintenance-Two stages -Bulk/Absorption
- Constant Power Supply -Program setting - Priority Battery Bank Charging
- DC Output Bank-Three -1 fully independent, 2 common with diode isolation
- Selectable Battery Type-Gel, AGM, Flooded, Lithium, Program
- Standby Current- less than 2 mA
Charger Input
- AC Input Voltage -Nominal-90 to 265 VAC
- AC Input Operating Range-207-265 Vac - 2.0 A Max-90-125 Vac -3.8 A Max
- AC Input Frequency Range-47 – 63 Hz
- Power Consumption- 350W -Full Load
- Power Factor CorrectionYes
- Charger Efficiency-greater than82 per cent
Protection and Features
- Reverse Polarity -with user-replaceable fuse/s
- Over Charge-Yes, unit shutdown
- Over Temperature-Yes, unit de-rated and shutdown
- Output Short Circuit- Yes, -with user-replaceable fuse/s
- Cooling- Forced air ventilation -Thermo controlled fan
- Temperature Setting-Hot, Normal, Cold -no sensor connected
- Battery Temp Sensor Port-RJ12 -standard battery temp. sensor supplied
Display
- LCD Display -with backlight-Charging status, Battery Voltage, Output Current and Fault Codes
- AC Input and DC Output Connection
- AC Input Connection-IEC with Supplied 1.2M Power Lead
- DC Output Connection-Heavy Duty Terminal -3 banks– Pan Heads 6mm Thread
- DC Output Ground-Single Heavy Duty Common Ground Stud
Environmental and Operating Temperature
- Storage Range--40C to 70C
- Operating Range--20C to 60C
- Humidity-5-95per cent, relative humidity non-condensing
- Ingress Protection-IP32 -Basic drip-proof in a vertical orientation
Base Unit Weight and Dimensions
- Weight-2.4 kg
- Dimension -L x W x H-295mm x 206mm x 86mm
- Regulatory Compliance-Complies with AS/NZS 60335.2.29 Including Australian deviations
Product Code EN31220
