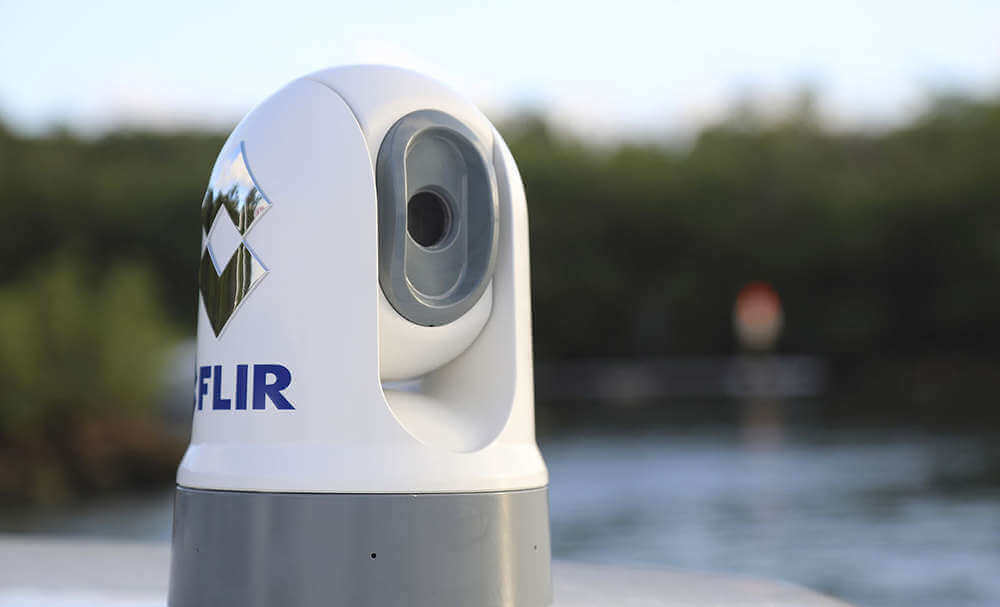

FLIR M232 Pan/Tilt Camera
Sent directly from NZ Supplier (4-7 Days)

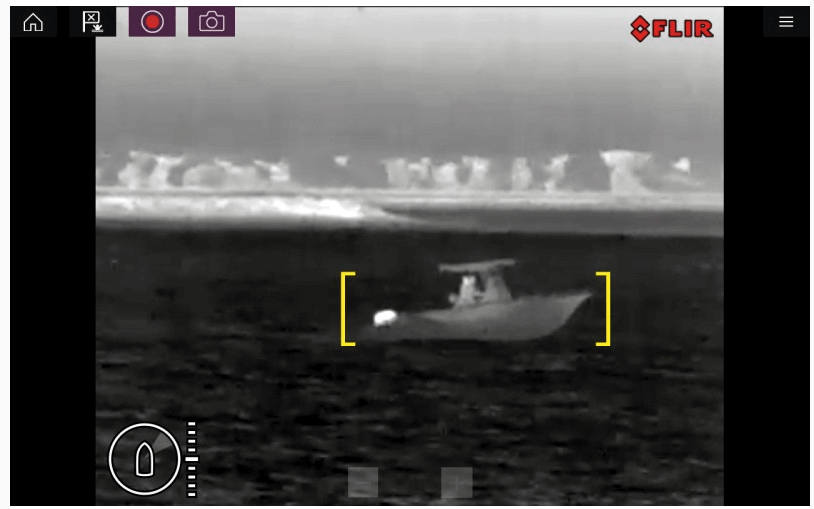

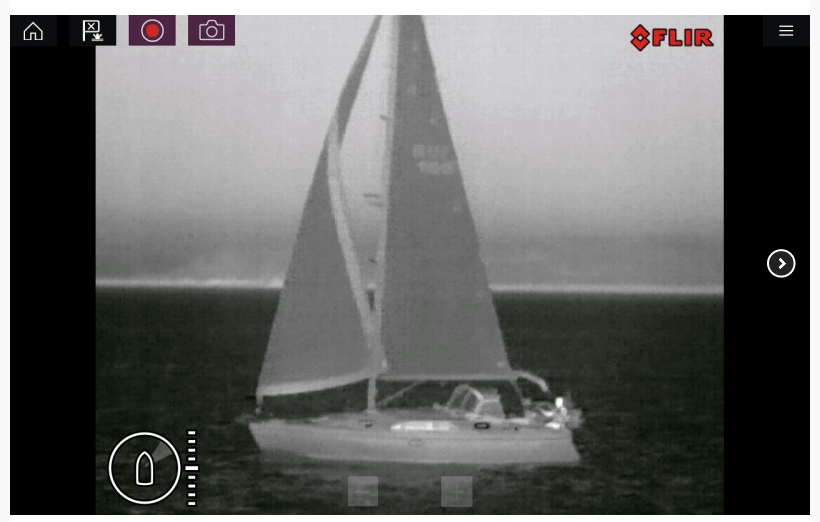

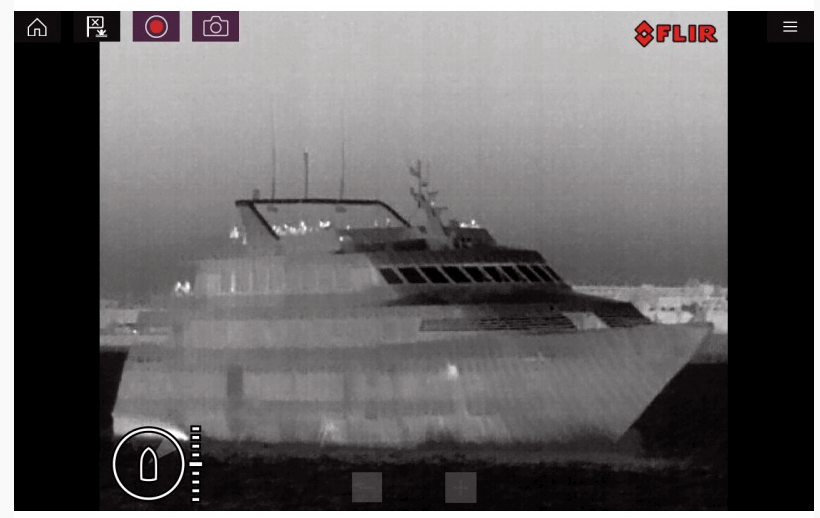

The M232 is one of FLIR's smallest and most affordable marine thermal camera. A full pan & tilt camera that features a 320 × 240 resolution, the M232 is a practical tool for safe passage at night. Improves safety by clearly revealing vessels and obstacles at night.
Thermal Resolution
320 × 240 resolution for clear, detailed images
ZOOM
2× e-Zoom for extended range performance
Ethernet-Enabled
Ethernet-enabled for simple integration with your other electronics
Control camera operation with either the optional joystick or from
your multifunction chart plotter
Pan & Tilt
360 deg continuous Pan & Tilt +110°, -90°
FLIR M200 SPECIFICATIONS
Detector Type320 × 240 VOx Microbolometer
Video Refresh Rate: 9 Hz
Field of View24° × 18°
E-Zoom 2x
Image ProcessingFLIR Proprietary Digital Detail Enhancement
System Specifications
Pan/Tilt RangePan: 360deg (continuos), Tilt: +110°, -90°
Image Processing: FLIR Propriety Digital Detail Enhancement™
Video Output: H264 IP Video stream
12 or 24 VDC – 15 Watts (typical) 18 W (max)
Environmental
Operating Temperature Range: -13°F to +131°F (-25°C to +55°C)
Storage Temperature Range: -30°F to +158°F (-30°C to +70°C)
Relative Humidity: 93% max
Vibration: IEC 60945; MIL-STD-810E
Salt Mist: ASTM B117
Wind speed: 100 mph (161 kph)
EMIIEC 60945
Waterproof Rating: IP-67
Drop Test Rating: 1m drop (in packaging)
Physical
2.7 kg w/o top-down riser. 3.0 kg w/ top-down riser
Size: 161.1 (dia.@ base) x 229.3 (ht.) mm
Range Performance
Person in the Water: 457 m
Small Vessel ~ 1.3 km
