Description

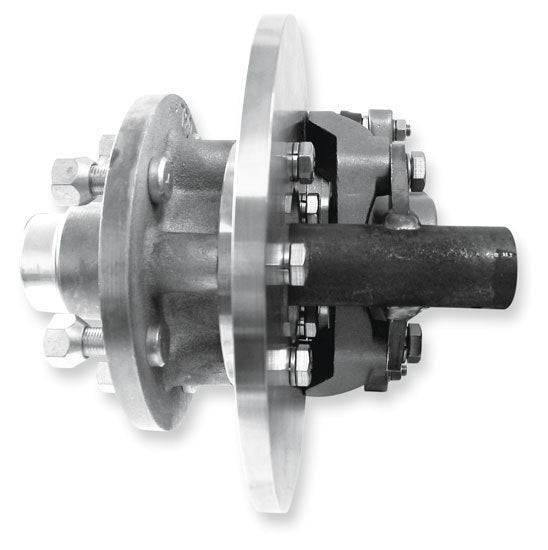

Hub and Stub Kit 275 CI D/B 5x120x7/16 - Designed to fit Trojan products but should fit most NZ trailer axles
Hub and Stub Kit 275 CI D/B 5x120x7/16
Features
- These non-braked hub kits are designed to fit our Duratorque and beam axles but should also fit most NZ manufactured trailer axles.
 - The Hubs have a 2000KG GVM (Gross Vehicle Mass) load rating which is based on a single axle and a pair of hubs.
 - Our range of hubs come in a wide variety of wheel stud patterns to suit the most common wheel sizes.
 - The most common stud pattern is 5 Stud with a PCD measurement of 4 1/2 inches and fits our most commonly stocked rims and tyres.
 - The hub kits in this range have a disc rotor as an integral part of the cast-iron hub or are fitted with a bolt-on disc rotor in either cast iron or stainless steel.
 - The rotor diameters are 275mm and use our standard calliper sets which are sold separately.
 - There are a pair of 38mm round stub axles included with a built-in calliper mount.

Specifications
Part No:  |
Rotor Type:  |
Stud:  |
PCD diameter:  |
Stud width:  |
'x' in mm:  |
|---|---|---|---|---|---|
T137135  |
Integral  |
5  |
4 1/2 inch  |
1/2 inch  |
67.183mm  |
T137155  |
Integral  |
6  |
5 1/2 inch  |
1/2 inch  |
82.118mm  |
T138105  |
Cast Iron bolt-on  |
Blank  |
|||
T138135  |
Cast Iron bolt-on  |
5  |
4 1/2 inch  |
1/2 inch  |
67.183mm  |
T138140  |
Cast Iron bolt on  |
5  |
120mm  |
7/16 inch  |
70.535mm  |
T138155  |
Cast Iron bolt on  |
6  |
5 1/2 inch  |
1/2 inch  |
82.118mm  |
T138305  |
Stainless steel bolt-on  |
Blank  |
|||
T138335  |
Stainless steel bolt-on  |
5  |
4 1/2 inch  |
1/2 inch  |
67.183mm  |
T138340  |
Stainless steel bolt on  |
5  |
120mm  |
7/16 inch  |
70.535mm  |
T138355  |
Stainless steel bolt on  |
6  |
5 1/2 inch  |
1/2 inch  |
82.118mm  |
Pack Size PR
WeighT 28kg
