Hub and Stub Kits 1500kg Non-Braked 5x4 1/2x1/2

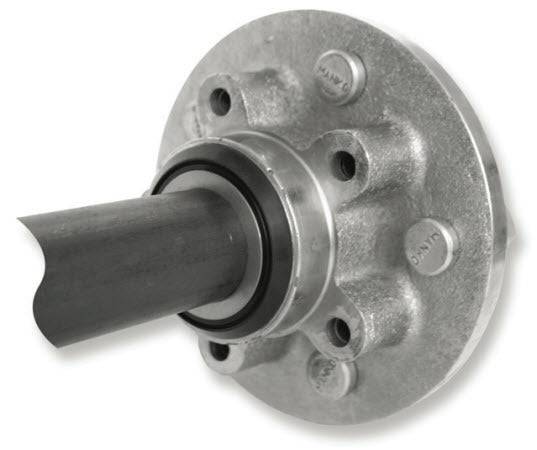

Hub and Stub Kits 1500kg Non-Braked 5x4 1/2x1/2 deliver a robust, weld-on solution engineered for dependable trailer axles. Built as a 2-piece non-braked system, it provides a solid foundation that you can weld directly to your axle tube, with a practical 1500kg GVM rating based on a single axle and a pair of hubs.

The heart of this kit is the 38mm diameter stub axle included, designed to be welded to your axle tube for a secure, long-lasting connection. These hubs are compatible with a range of common wheel stud patterns, ensuring broad compatibility with the rims and tyres you already use. The most common arrangement is a 5-stud pattern with a 4 1/2 inch PCD, suitable for the majority of stocked rims. A second option in the range provides a 5-stud pattern with a 120mm PCD to cover additional fitment needs.

• Part No: T123135 — 5 studs, 4 1/2" PCD, stud width 1/2", 67.183mm x-dimension (as specified).
• Part No: T123140 — 5 studs, 120mm PCD, stud width 7/16", 70.535mm x-dimension (as specified).
• Weight: Pack weight 12kg.
• Compatibility: Designed to fit a bolt-on disc rotor (not included; rotors sold separately).
• Note: This kit does not include spare parts.
• Shipping: Ships from supplier within 4–7 days.

Who is this for? If you’re fabricating or rebuilding a trailer, utility trailer, or light-duty equipment trailer, this weld-on hub and stub kit simplifies the build while delivering reliable load handling. It’s non-braked, making it a straightforward choice when braking components aren’t required or when you plan to upgrade braking later by adding a bolt-on rotor. With two common bolt patterns available, you can select the pattern that matches your existing wheels, reducing the need for multiple adapters or custom fabrication.

Key benefits you’ll notice in use include a clean, direct welding process and a proven 1500kg GVM rating per axle pair, giving you confidence on the road with a simple, economical mounting solution. Whether you’re upgrading an older axle or starting a new build, Hub and Stub Kits 1500kg Non-Braked 5x4 1/2x1/2 are designed to deliver dependable performance and straightforward maintenance.
