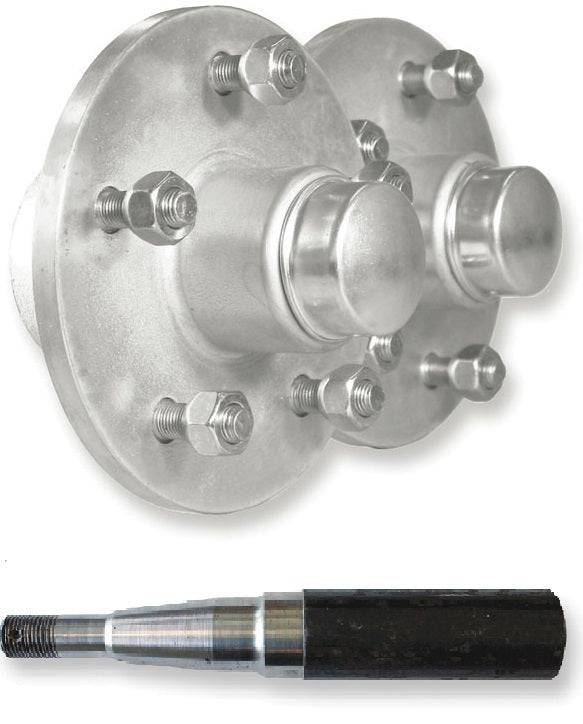

Hub and Stub Kits Blank 160HUB 39mm S/A

Meet the Hub and Stub Kits Blank 160HUB 39mm S/A — a purpose-built, non-braked hub solution designed for robust trailer and axle conversions. Featuring a 38mm diameter stub axle hub and a weld-on design, these kits are built to integrate directly with your axle tube for a strong, reliable hub assembly. With a 1500KG GVM rating per single axle (based on a pair of hubs), they’re ready for mid-weight towing and heavy-duty DIY builds.

Why this kit stands out

• Weld-on convenience — ductile, non-braked hubs that can be welded to your axle tube, simplifying installation for custom trailers, agricultural equipment, and workshop builds.
• Solid GVM capability — 1500 KG gross vehicle mass rating on a single axle when paired with the matching hubs, offering dependable load handling for practical, everyday towing needs.
• Versatile wheel stud compatibility — a broad range of stud patterns to suit common wheel sizes, reducing the need for adapters and ensuring a secure fit with stocked rims and tyres.
• Disc rotor note — these hubs are not fitted to accommodate a bolt-on disc rotor, making them ideal for drum-brake setups or non-disc configurations where simplicity and space matter.
• Comprehensive pattern options — multiple part numbers cover a wide array of stud patterns and flange configurations, so you can match your existing wheel and drum/brake setup with precision.

Stud patterns and compatibility

• T122005 — Blank 155mm
• T122008 — 4 studs • PCD 100 mm • Stud width 7/16 inch • Flange diameter 155 mm • x 100.00 mm
• T122010 — 4 studs • PCD 4 inch • Stud width 7/16 inch • Flange diameter 140 mm • x 101.6 mm
• T122015 — 4 studs • PCD 4 1/4 inch • Stud width 7/16 inch • Flange diameter 160 mm • x 108.0 mm
• T122018 — 4 studs • PCD 110 mm • Stud width 7/16 inch • Flange diameter 160 mm • x 110.0 mm
• T122020 — 4 studs • PCD 4 1/2 inch • Stud width 7/16 inch • Flange diameter 160 mm • x 114.3 mm
• T122025 — 5 studs • PCD 4/14 inch • Stud width 7/16 inch • Flange diameter 160 mm • x 63.449 mm
• T122035 — 5 studs • PCD 4 1/2 inch • Stud width 1/2 inch • Flange diameter 160 mm • x 67.183 mm
• T122040 — 5 studs • PCD 120 mm • Stud width 7/16 inch • Flange diameter 160 mm • x 70.535 mm
• T122045 — 5 studs • PCD 5 inch • Stud width 7/16 inch • Flange diameter 160 mm • x 74.650 mm
• T123055 — 6 studs • PCD 5 1/2 inch • Stud width 1/2 inch • Flange diameter 190 mm • x 139.7 mm

Specifications at a glance

• Pack weight: 9 kg
• Pack type: PR
• Material/design: Non-braked hub kit with 38 mm stub axle for weld-on mounting
• GVM rating: 1500 KG (per single axle, when paired)
• Wheel compatibility: Wide range of common wheel stud patterns to fit stock rims and tyres
• Rotor compatibility: Not designed for bolt-on disc rotors
• Manufacturer note: Spare parts are available; ships from supplier within 4–7 days

This hub and stub kit range is ideal for builders and upfitters who want a straightforward weld-on solution with proven load capacity and broad wheel compatibility. Whether you’re retrofitting a trailer, swapping in a practical drum-brake arrangement, or fabricating a new axle assembly from scratch, the 160HUB 39mm S/A kit provides reliable, track-ready performance with precise stud-pattern alignment. Leverage the supplied stud-pattern options to match your existing rims, avoid unnecessary adapters, and get to work with a solution designed for real-world towing and handling scenarios.
