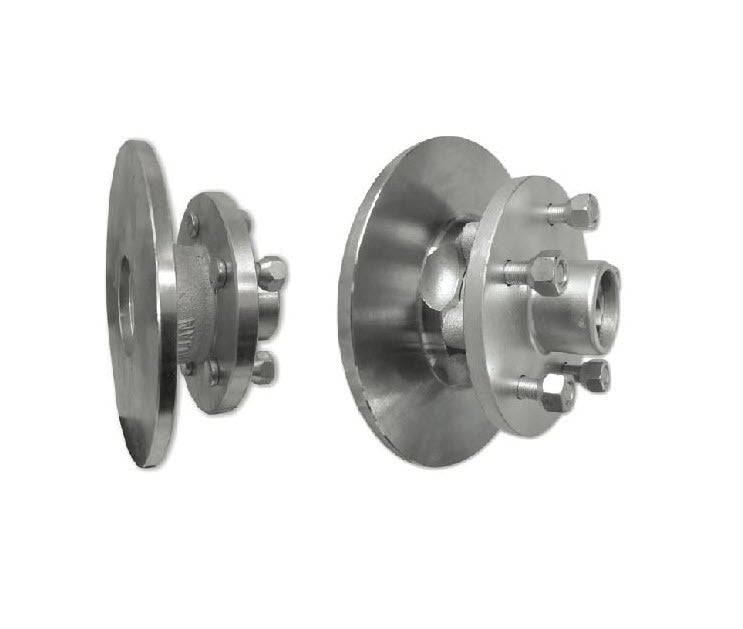

Hub Kit 5X41/2X2 S/S Disc Braked 2000kg

Meet the Hub Kit 5X41/2X2 S/S Disc Braked 2000kg—built to elevate the braking performance and reliability of heavy trailers. With a 2000kg GVM rating per axle, this disc-braked hub kit delivers confident stopping power for demanding loads, while offering flexible rotor configurations to suit your setup. This isn’t a generic upgrade—it's a purpose-built solution for Duratorque and beam axles, and it’s compatible with a wide range of NZ-manufactured trailer axles.

Why this hub kit stands out

• Heavy-duty performance: 2000kg GVM rating per single axle (pair of hubs) ensures dependable handling when towing large payloads.
• Flexible rotor integration: rotors are either an integral part of the cast-iron hub or fitted as a bolt-on disc rotor available in cast iron or stainless steel, with a robust 275mm rotor diameter for strong braking leverage.
• Common, versatile stud pattern: designed around the popular 5 studs with a 4 1/2 inch PCD, aligning with the majority of stocked rims and tyres for straightforward compatibility.
• Disc braking with standard calipers: the hub kit includes a disc rotor option and uses standard caliper sets (sold separately), giving you flexibility in choosing your braking components.
• Multiple model configurations: available in current and early models with distinct outer bore, inner bore, flange, and rotor options to suit a range of installations. There’s also a spigot-type variant to match different hub mounting requirements.
• Broad axle compatibility: specifically engineered to fit our Duratorque and beam axles and is widely compatible with most NZ-manufactured trailer axles.

Technical snapshot

• 275mm
• Outer bore (Current Model): 45mm
• Outer bore (Early Model): 50mm
• Inner bore: 65mm
• Flange thickness: 15 mm (Current/Early), 13 mm for spigot variant
• Flange diameter: 220mm (Current/Early), 190mm for spigot variant
• Boss length: 30mm (Current/Early), 30mm for spigot variant
• Rotor options: integral cast-iron hub rotor or bolt-on rotor in cast iron or stainless steel
• Spigot-type variant: 50mm outer bore, 65mm inner bore, 13mm flange thickness, 190mm flange diameter, rotor 275mm or 260mm
• Part info: Stud 5, PCD 4 1/2 inch, Stud width 1/2 inch
• Pack weight: 20 kg

Use cases and ideal applications

This hub kit is ideal for heavy-duty trailer setups where you’re upgrading to disc braking for improved stopping power and heat management. It’s well-suited for:

• Trailers that use Duratorque or beam axles
• NZ-manufactured trailers requiring a reliable 5x4.5" stud pattern
• Applications where rotor material choice matters, offering both cast iron and stainless options
• Owners seeking a parameter-ready upgrade with spare parts available for ongoing maintenance

What you get and practical considerations

• What’s included: hub kit with disc-braked hub assembly; rotor configuration chosen to match the model variant; compatibility with standard caliper sets (calipers sold separately).
• Spare parts: a range of spare parts is available to support ongoing maintenance and repairs.
• Compatibility notes: designed to fit our Duratorque and beam axles and should also fit most NZ-manufactured trailer axles; if you’re upgrading from a drum system, this kit provides a straightforward path to disc braking performance.
• Shipping and availability: items are shipped from suppliers and typically dispatched within 4–7 days. For delivery specifics, please contact us.
• Installation tip: confirm your wheel studs and bolt patterns match 5x4 1/2" and verify bore sizes (45mm/50mm outer bore, 65mm inner bore) for a hassle-free fit.

With the Hub Kit 5X41/2X2 S/S Disc Braked 2000kg, you’re choosing a purpose-built, durability-focused braking upgrade designed to handle demanding loads, simplify maintenance, and keep your trailers safer on the road. Whether you’re replacing worn drums or upgrading to a more robust disc-brake setup, this kit pairs practical engineering with real-world performance—backed by available spare parts and clear compatibility across common NZ trailer axles.
