Hub Kit Disc Braked Blank 1500kg
Hub Kit Disc Braked Blank 1500kg
Action Outdoors Shop
1/348 Rosebank Road
Avondale
AUK
Auckland 1026
New Zealand
Hub Kit Disc Braked Blank 1500kg - These braked hub kits are designed to fit our Duratorque and beam axles

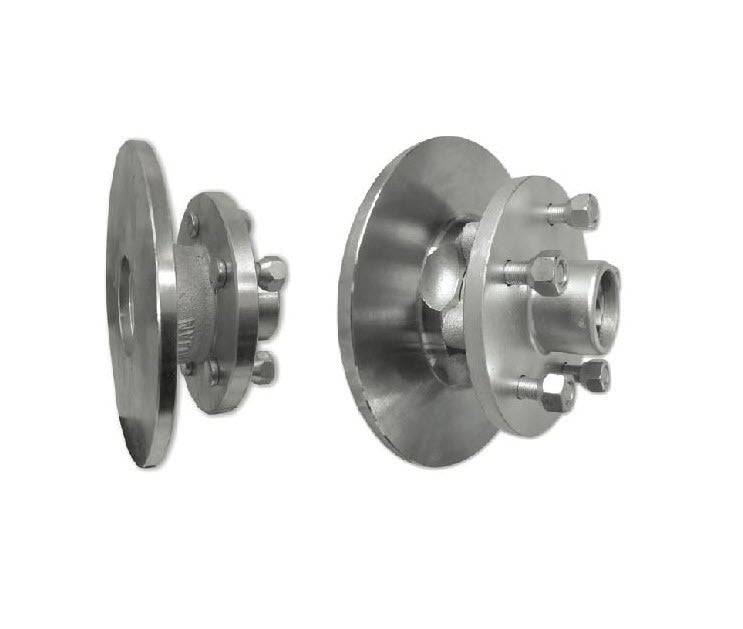

Hub Kit Disc Braked Blank 1500kg
Features
- These braked hub kits are designed to fit our Duratorque and beam axles but should also fit most NZ manufactured trailer axles.
- The Hubs have a 1500KG GVM (Gross Vehicle Mass) load rating which is based on a single axle and a pair of hubs.
- Our range of hubs come in a wide variety of wheel stud patterns to suit the most common wheel sizes.
- The most common stud pattern 5 Stud with a PCD measurement of 4 1/2 inches and fits our most commonly stocked rims and tyres.
- The hub kits in this range include a full cast disc or a fitted bolt-on disc in either cast iron or stainless steel.
Hub Dimensions
Hub Type: Disc Braked |
Version: |
Fig A: Outer Bore |
Fig B: Inner Bore |
Fig C: Flange Thickness |
Fig D: Flange Diameter |
Fig E: Boss Length |
Fig F: Rotor Diameter |
---|---|---|---|---|---|---|---|
1500kg |
Early Model |
45mm |
59mm |
15 mm |
180mm |
27mm |
225mm |
1500kg |
Current Model |
45mm |
59mm |
15mm |
180mm |
34mm |
225mm |
1500kg (Spigot Type) |
Current Model |
45mm |
59mm |
12mm |
155mm |
38mm |
225mm or 260mm |
PCD Measurement
Part No: |
Rotor Type: |
Stud: |
PCD diameter: |
Stud width: |
'x' in mm: |
---|---|---|---|---|---|
T035105 |
Integral |
Blank |
|||
T035115 |
Integral |
4 |
4 1/4 inch |
7/16 inch |
108.0mm |
T035120 |
Integral |
4 |
4 1/2 inch |
7/16 inch |
114.3mm |
T035125 |
Integral |
5 |
4 1/4 inch |
7/16 inch |
63.449mm |
T035135 |
Integral |
5 |
4 1/2 inch |
1/2 inch |
67.183mm |
T035140 |
Integral |
5 |
120mm |
7/16 inch |
70.535mm |
T036125 |
Cast Iron bolt on |
5 |
4 1/4 inch |
7/16 inch |
63.449mm |
T036135 |
Cast iron bolt on |
5 |
4 1/2 inch |
1/2 inch |
67.183mm |
T036140 |
Cast iron bolt on |
5 |
120mm |
7/16 inch |
70.535mm |
T036325 |
Stainless steel bolt on |
5 |
4 1/4 inch |
7/16 inch |
63.449mm |
T036335 |
Stainless steel bolt on |
5 |
4 1/2 inch |
1/2 inch |
67.183mm |
T036340 |
Stainless steel bolt on |
5 |
120mm |
7/16 inch |
63.449mm |
Rotor Sets for the Above
Part No |
Description |
---|---|
TPT3110 |
Cast iron |
TPT3111 |
Stainless Steel |
Pack Size PR
Weight 15kg
Note: There is a range of spare parts available for this product.
Products are sent from suppliers and ships within 4-7 days
