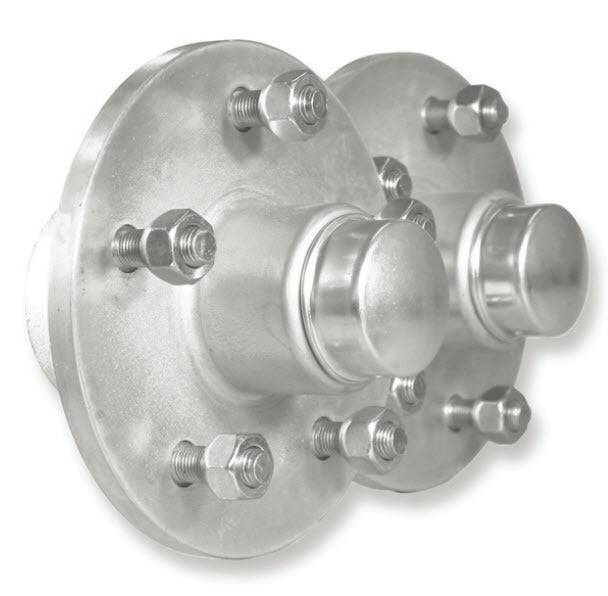

Hub Kit Non-Braked 1/4x7/16 160HUB is a purpose-built, non‑braked hub solution designed to pair with our custom axles and a wide range of wheel configurations. With a focus on dependable load handling and straightforward mounting, this hub kit keeps your trailer or utility vehicle moving smoothly.

Key benefits at a glance

• High-load capacity: 1500 kg GVM per axle when used as a pair of hubs, making it a solid choice for trailers and light commercial applications that demand durability under load.
• Versatile bore and flange options: Two early-model variants provide Outer Bore 45 mm, Inner Bore 59 mm, and flange configurations that support multiple wheel sizes. Flange thickness options include 18 mm or 11 mm, with flange diameters of 175 mm or 140 mm and overall widths of 87 mm or 97 mm to fit a range of rims.
• Precise stud pattern for common rims: 4 studs with a PCD of 155 mm, stud diameter 1/4 inch, and stud width 7/16 inch. Flange diameter on this hub is 108 mm, ensuring solid wheel seating and alignment.
• Lightweight and manageable: Each hub kit weighs around 6 kg, balancing strength with serviceability for on-site maintenance and replacements.
• Wheel compatibility and drilling options: A wide range of wheel drilling configurations is supported, helping you match the hubs to the rims you already stock.
• Not compatible with bolt-on disc rotors: This is intentionally a non‑braked hub set, so plan your braking system accordingly and pair with compatible components.
• Stub axles not included: The hub is supplied without axles, providing flexibility to integrate with your existing drivetrain hardware.
• Spare parts available: A range of compatible spare components is offered to simplify maintenance and long-term service life.
• Practical delivery timeline: Ships from suppliers within 4–7 days of order, helping you plan repairs and upgrades efficiently.

What this means for your setup

If you’re upgrading or rebuilding a trailer or light-duty vehicle that relies on a custom axle system, the Hub Kit Non-Braked 1/4x7/16 160HUB provides a dependable, non‑braked hub option with documented bore and flange configurations. The two available early-model variants cover common mounting widths and wheel diameters, while the 4-stud, 155 mm PCD pattern ensures compatibility with a broad selection of rims and tyres in our range. Stub axles aren’t included, so you can source compatible axles and hardware to complete the assembly with confidence.

Ideal for: trailers, utility vehicles, and equipment that use our bespoke axles and require a robust, non-braked hub solution with flexible wheel mounting options. If you’re looking to refresh worn hubs, adapt to different wheel sizes, or build a reliable, low-maintenance axle assembly, this kit is designed to deliver longevity and straightforward serviceability.

Care and best practices: verify bore and flange compatibility with your chosen rims before mounting, torque fasteners to manufacturer recommendations, and ensure the wheel drilling configuration matches the hub pattern. Keep a small selection of spare parts on hand to minimize downtime and maintain consistent performance across seasons.
