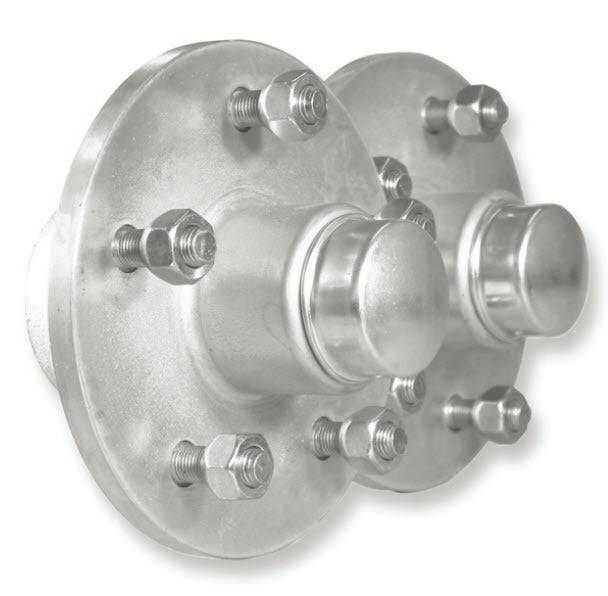

Introducing the Hub Kit Non-Braked 5x4 1/2x1/2 160HUB—a purpose-built solution for working with our custom axles. This non-braked hub kit delivers reliable performance, precise fit, and flexible wheel compatibility for trailers, light vehicles, and equipment that rely on a robust 5x4 1/2" bolt pattern and 1/2" studs.

• Core compatibility: Non Braked hub kit designed to fit our custom axles with a 5x4 1/2" bolt pattern and 1/2" stud size. The most common setup uses a 5-stud pattern with a 4 1/2" PCD, matching our widely stocked rims and tyres.
• Load rating: 1500 kg GVM per axle (based on a single axle and a pair of hubs), making it suitable for range-topping trailers and equipment where dependable weight handling matters.
• Bores and flange options: Two practical flange/width configurations to accommodate different wheel assemblies:
  • Version A: Outer bore 45 mm • Inner bore 59 mm • Flange thickness 18 mm • Flange diameter 175 mm • Overall width 87 mm
  • Version B: Outer bore 45 mm • Inner bore 59 mm • Flange thickness 11 mm • Flange diameter 140 mm • Overall width 97 mm
• Wheel drilling flexibility: A wide range of wheel drilling options is supported, helping you tailor wheel compatibility to your existing rims and tyres.
• Wheel interface details: The hub face flange diameter indicates the outside diameter on which the wheel mounts, ensuring a solid, precise seat for your wheel.
• Stub axles and rotor compatibility: Stub axles are not included, and this hub range is not able to fit with a bolt-on disc rotor. Plan your braking and axle setup accordingly.
• Key part and handling info: Part No. T082035 with 5 studs and a PCD of 4 1/2" (115 mm). Pack weight is 6 kg, and spare parts are available to support ongoing maintenance or replacements.
• Shipping and availability: Ships from suppliers within 4–7 days, with a range of compatible spare parts to support long-term use.

The Hub Kit Non-Braked 5x4 1/2x1/2 160HUB is the dependable choice when you need a non-braked hub that aligns with our most common wheel configurations while offering adaptable flange sizes for different wheels. It’s designed for durability, straightforward assembly on compatible axles, and precise alignment with your chosen rims and tyres.

Ideal for applications where a non-braked hub is appropriate, including certain trailers, utility builds, and custom vehicle setups that require a reliable hub-to-wheel connection with a proven 5x4 1/2" bolt pattern. If you’re upgrading or tailoring your wheel system to fit multiple rims, the two flange options give you the configuration that best matches your wheel diameter and design needs.
