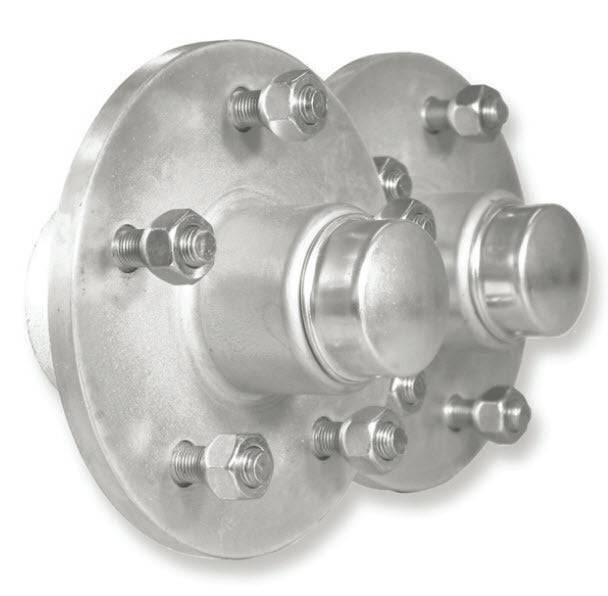

Hub Kit Non-Braked 5x4 1/4x7/16 160HUB is a purpose-built, non-braked hub assembly designed to pair with our range of custom axles. Built for durability and straightforward compatibility, this kit supports trailer and light industrial applications where brakes are not integrated into the hub and where dependability matters most.

Key features that set this hub kit apart

• High-load capacity: 1500 kg Gross Vehicle Mass (GVM) per axle, providing a robust solution for trailers and auxiliary vehicles that demand steady performance.
• Versatile bolt pattern: Standard 5 studs with a 155 mm PCD, accommodating common wheel configurations and a choice of stud widths (1/4" or 7/16") for flexible fitment.
• Two flange diameter options: Specifically configured to fit different wheel diameters, including a 175 mm flange with a 18 mm flange thickness and 87 mm overall width, and a 140 mm flange with a 11 mm flange thickness and 97 mm overall width. This allows you to select the configuration that best matches your wheels and drum/rotor alignment needs.
• Precise bore selection: Outer bore 45 mm and inner bore 59 mm ensure a secure, accurate fit on our standard axles, helping to minimize play and improve alignment.
• Clear compatibility and scope: Designed to fit any of our custom axles and is part of a broader hub family offering multiple flange options to cover a range of wheel sizes.
• Practical logistics: Stub axles are not included, but a wide range of wheel drilling is supported, and spare parts are available to keep your setup running smoothly. Ships from suppliers within 4–7 days after order.

Configurations and what they mean for you

• — 1500 kg Early Model: Outer Bore 45 mm, Inner Bore 59 mm, Flange Thickness 18 mm, Flange Diameter 175 mm, Overall Width 87 mm.
• — 1500 kg Early Model: Outer Bore 45 mm, Inner Bore 59 mm, Flange Thickness 11 mm, Flange Diameter 140 mm, Overall Width 97 mm.

Technical specifications at a glance

• Hub type: Non Braked
• Rated capacity: 1500 kg GVM per axle (as a pair of hubs)
• Stud pattern: 5 studs, PCD 155 mm
• Stud width options: 1/4" or 7/16"
• Flange diameter options: 175 mm (Version A) or 140 mm (Version B)
• Outer/Inner bore: 45 mm / 59 mm
• Wheel compatibility: Wide range of wheel drilling supported; fits our most commonly stocked rims and tyres
• Weight: Approximately 6 kg per kit
• Discs and braking: Not compatible with bolt-on disc rotors

Who this hub kit is for and how you’ll benefit

This hub kit is ideal for trailer owners, hobbyist and commercial operators who use non-braked configurations or external braking systems. If your wheels require a precise 5x4 bolt pattern with a 155 mm PCD and you’re pairing to our standard axles, the 160HUB hub kit provides a reliable, field-proven link between axle and wheel. The two flange options let you tailor fitment to your wheel diameter, preserving alignment and ensuring smooth rotation without unnecessary spacer work.

Practical tips for best results: - Confirm bore sizes (outer 45 mm, inner 59 mm) align with your axle specification before ordering. - Match the hub’s flange diameter to your wheel’s centerline and mounting holes to minimize alignment issues during installation. - If you’re using add-on brakes or separate braking equipment, verify compatibility since this is a non-braked hub kit. - Plan for the full assembly by stocking compatible studs (1/4" or 7/16") and verifying wheel drilling options match your rim design. - When ordering, note the available configurations to ensure you pick the flange size that matches your wheel diameter and mounting pattern.

With the Hub Kit Non-Braked 5x4 1/4x7/16 160HUB, you’re choosing a dependable, purpose-built solution designed to integrate seamlessly with our custom axles, support substantial loads, and accommodate a range of wheel sizes—so you can get back on the road or job site with confidence.
