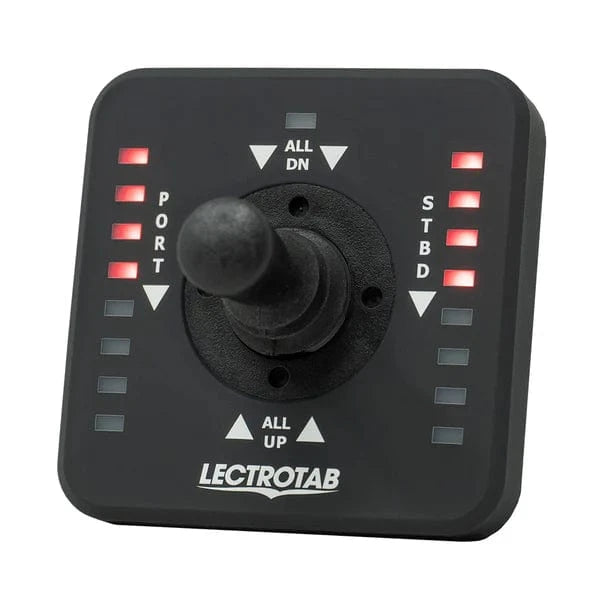

Lectrotab Joystick LED Trim Tab Control For Boats One-Handed Joystick Real-Time LED Readouts Precise Trim

Take command of your boat’s trim with Lectrotab’s Joystick LED Control—an intuitive, single-joystick interface that puts precise trim tab management at your fingertips. Designed around boaters’ real needs, this microprocessor-based control delivers smooth, responsive adjustments and clear, at-a-glance feedback from LED tab position indicators.

• Intuitive joystick operation: move both trim tabs up or down with one fluid motion for quick, balanced hull attitude adjustments on plane or at rest.
• Clear LED position readouts: each trim tab’s exact position is displayed, so you always know your stance in real time—crucial for docking, crossing chop, or optimizing fuel efficiency.
• NMEA 2000 compatible: integrates seamlessly with your boat’s network via the JLC-NMEA adapter (sold separately) for centralized helm control and data sharing.
• Dual station ready: expand from one to two helm positions simply by adding a second JLC-11 and JR cable (sold separately) to manage tabs from either station.
• Smart behavior with power cycles: automatically returns to your last tab position when the ignition is turned off and back on, preserving your preferred trim setup.
• Weatherproof and sun-ready: completely sealed and waterproof, built to resist sun deterioration and harsh marine environments.
• Auto calibration and retraction: when the key or accessory switch is off, tabs retract and the system calibrates automatically for reliable next-use performance.
• Upgrade, not replace: an easy upgrade path from existing Lectrotab controls, with no external power module required for operation.
• Adaptive brightness: LED indicators automatically dim in darkness and brighten in sunlight for legibility in all lighting conditions.
• Flexible actuator options: supports single or dual actuators per tab, giving you the exact control scheme your setup requires.
• Wide voltage compatibility: compatible with 12 or 24 V DC systems to fit a broad range of boats and electrical configurations.

Key specifications at a glance

• Model: JLC-11
• Display: Black LED readouts
• Stations/Actuators: Single or Dual Station / 1 or 2 Actuators per tab
• Overall dimensions: 3.0" width; 3.0" (77 mm) height / 2.0" (50 mm) depth
• Mounting hole: 2.625" (66.7 mm) diameter
• Voltage: 12/24 V DC
• Fuse sizes: 12 VDC: 15 A or 20 A; 24 VDC: 10 A
• Auxiliary connection: must be connected for proper operation
• Power input (per tab): 1–2 A fuse size guidance

Ideal for skippers who demand precise, responsive trim control without sacrificing reliability or helm space. Whether you’re dialing in a smooth ride in heavy chop, optimizing planing efficiency, or simplifying docking, the Joystick LED Control delivers fast, repeatable trim responses with clear visual feedback. Embrace a smarter trim system that understands your boat—and your needs—and elevate every voyage with Lectrotab.
