Maxwell Marine
Maxwell Windlass HRC-FF8 - 12V/600W
Sent from NZ Supplier (1-2 Days)

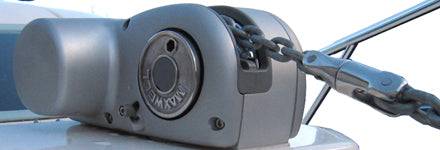

Maxwell Windlass HRC-FF8 - 12V/600W - The all-new compact HRC FF are Maxwell horizontal versions
Maxwell Windlass HRC-FF8 - 12V/600W
HRC FF ROPE/CHAIN SERIES
The all-new compact HRC FF are Maxwell™ horizontal versions of the latest innovative new vertical RC8 automatic rope/chain windlasses. The new HRC FF is packed with original and proven features including patented rode management technology developed by Maxwell.
Features
- Simple bolt-down installation ensures effortless and rapid on-deck installation and set-up.
- Guaranteed trouble-free rode transition from rope to chain, by means of an innovative, proven and patented pressure arm system, within a safe enclosed design.
- Integrated composite nylon, through deck hawse pipe for ease of installation and smooth, snag-free operation.
- Now incorporating Maxwell's automatic free-fall technology. Simply activate the windlass Free Fall lever, operate your down control (helm station or footswitch) and the windlass will freefall your anchor. Ready to lift the anchor? Activate the up control and the free fall device automatically disengages allowing you to power up your anchor.
- The aesthetically pleasing above-deck design encapsulates the motor and drives in a watertight case, saving space below the deck and allowing simple routine maintenance.
- Die-cast, marine-grade, alloy case is hard anodized for unsurpassed marine protection.
- High-efficiency spur gearbox incorporating a robust non-backwind mechanism.
- High-speed, jam-free retrieval of rope and chain controlled from a remote panel-mounted Up/Down switch.
- Emergency free-fall function in the event of onboard power failure. Activated by the supplied, emergency Free Fall lever.
- Revolutionary new chain wheel.
- Heavy-duty, dual-direction motor incorporating new technology features, including integrated wiring for quick electrical installation.
PLEASE READ THE SPECS CORRECTLY BEFORE BUYING - THIS IS SENT DIRECTLY FROM OUR SUPPLIER
Specifications
- Model HRC FF-8
- Maximum Pull410kg 900lbs
- Static Hold 700kg 1540lbs
- Chain Short Link 8mm 5/16"
- Rope Size (Nylon)*(3 strand or 8 plait)**14mm 9/16"
- Line Speed (Anchor retrieval nominal 30kg) 33m/min 108ft/min
- Power Supply (DC) 12V
- Motor Power 600W
- Net Weight (Electric) 11.5kg 25lbs.
