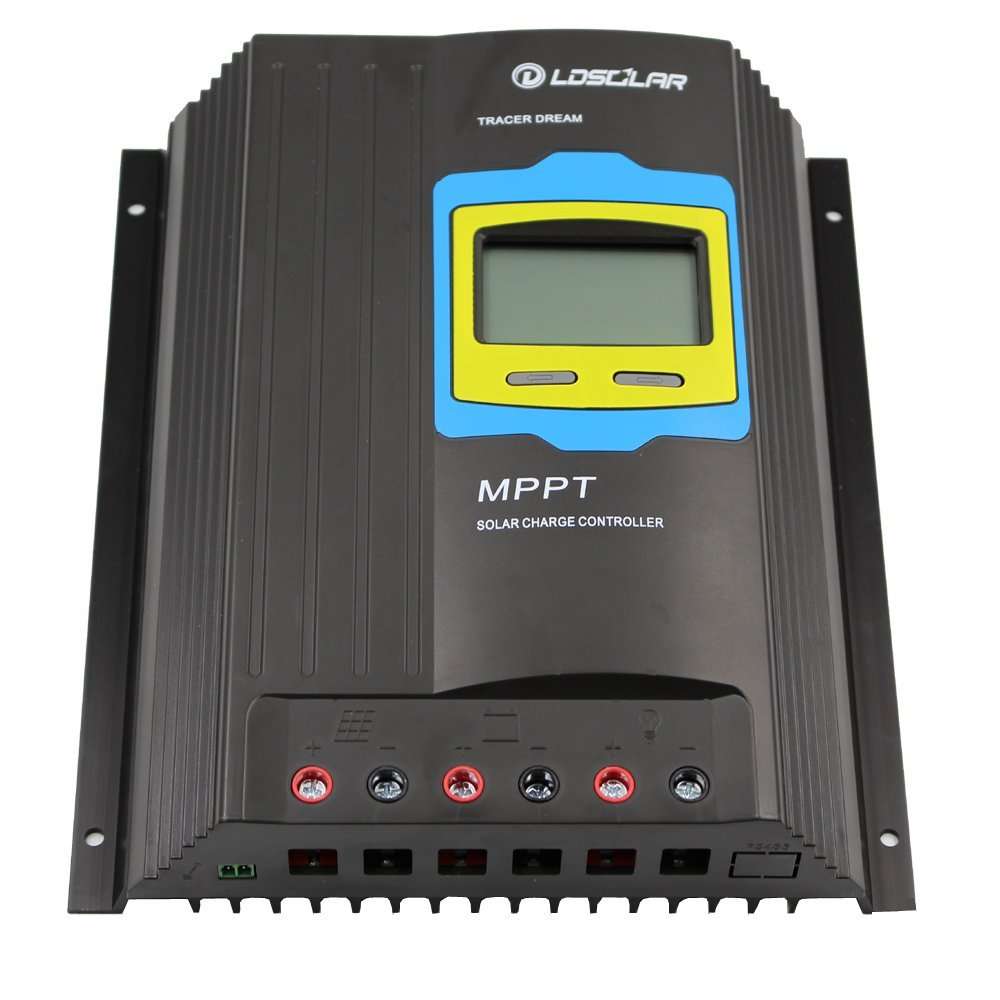

Solar Controller MPPT 40A 12/24 Voltage N/A

Solar Controller MPPT 40A 12/24 Voltage - adopts MPPT technology. Run by 32 bits CPU, so stability and speed can be guaranteed. Code RVJ426

Solar Controller MPPT 40A 12/24V out of stock

Features

The Tracer Dream Series adopts MPPT technology. It is run by 32 bits CPU, so stability and speed can be guaranteed.

Based on the synchronous rectifier technology, the transfer efficiency of the circuit can be increased up to 98 per cent and the Pmax tracking accuracy up to 99.5 per cent.

So our MPPT can trace the accurate Pmax in the shortest time, even when the sunlight changes rapidly. It can perfectly handle extreme weather or weak sunlight.

Easy to operate LCD display this unit gives you total control over battery charging, and power usage as well as protecting your batteries for longevity.

• Advance MPPT technology
• High tracking efficiency no less than 99.5 per cent
• The peak conversion efficiency of 98 per cent
• PV array limited power input function Max PV input voltage DV 100V
• 12/24VDC system voltage
• Charging programs can be set for sealed, gel and open types of storage batteries.
• Accurate temperature compensation can automatically accommodate the charging voltage according to the environmental temperature, optimizing for long battery life.
• Patented large-diameter with 25mm2, red and black connector distinguish positive and negative pole avoiding the wrong operation.
• Size 233 x 200 x 54mm

THIS PRODUCT IS SHIPPED DIRECTLY FROM OUR SUPPLIERS

PLEASE CONTACT US FOR AVAILABILITY

Code RVJ426

J - 05.07.22
