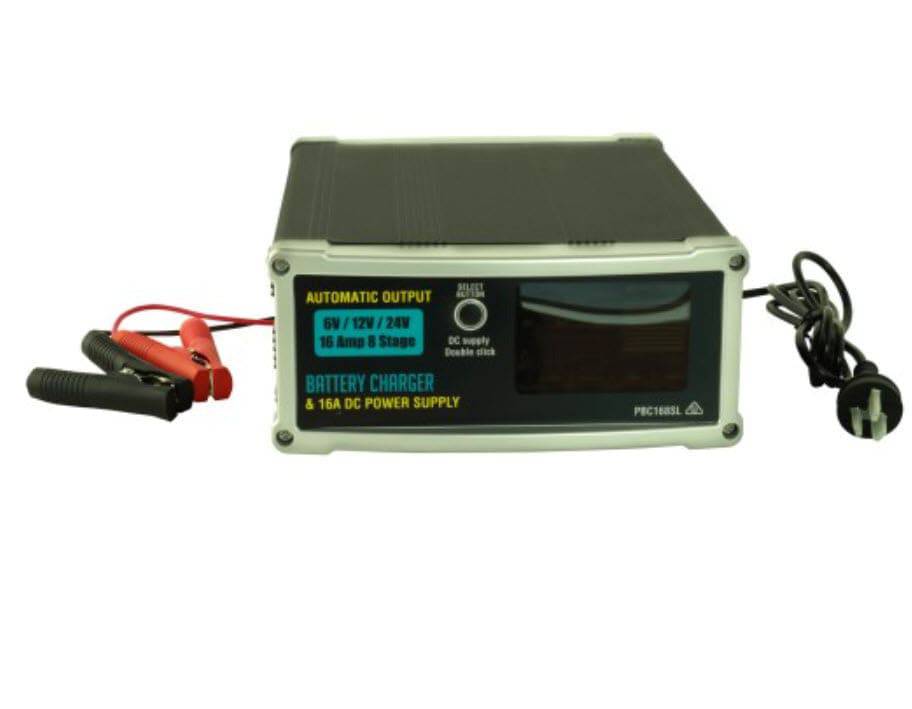

Power Train 16 Amp 6/12/24V Auto 8 Stage Charger

Power Train 16Amp 8 Stage 6/12/24V Charger and DC Power Supply -designed to effectively charge all automotive and industrial-type batteries

Power Train 16Amp 8 Stage 6/12/24V Charger and DC Power Supply -

Features

The Power Train PTC40AL battery charger is designed to effectively charge all automotive and industrial-type batteries. Manufactured to the latest design parameters and highest quality levels, they incorporate a unique micro-processor controlled seven-stage pulse charging system that intelligently assesses battery condition and size, to make battery charging much safer, and more effective - thus prolonging battery life.

They are ideal for Automotive, Motorhomes, horse trucks, and marine applications, to ensure the correct, safest, and BEST method of charging a high capacity 6V/12V or 24V battery bank or individual batteries.

• Built-in microchip monitoring and charging control system.
• Accurate voltage and current detection, monitoring on both AC input and DC output.
• Optimally designed charging cycle designed for lead-acid, SLA, Gel, deep cycle, and calcium batteries.

Complete seven-stage pulse charging cycle including:

• desulphation
• soft start
• bulk
• absorption
• analysis - battery fault diagnosis
• boost
• float
• Automatic adjustment of charging voltages according to environmental temperature.
• Overcharge protection - protecting the battery from damage due to overcharging.

Protection From

• reverse polarity
• short circuit
• overload
• high temperature

Specifications

• Model No PTC40AL
• Output Current 40A
• Output Voltage (Nom) 6V/12V/24V and 13.5V DC
• Input Voltage 175-255V / 50-60Hz
• Battery type selectable Gel/Calcium/Lead Acid -AGM
• Chargeable battery type 17A/H to 600 A/H
• Working Temperature -15C to 55C
• High-Temperature Protection

When the charger's internal temperature is above 60C, the charger output current will automatically reduce 75per cent of standard output. Once the temperature drops below 55C, the charger output will return to normal.

THIS PRODUCT IS SHIPPED DIRECTLY FROM OUR SUPPLIERS

PRODUCT CODE RVK053
