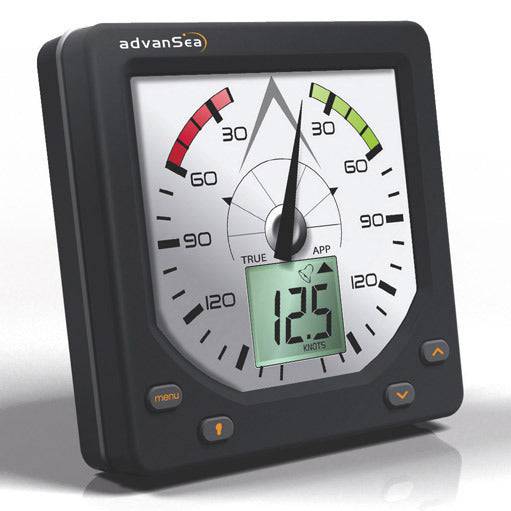

advanSea Wind-a S400 Complete System

advanSea Wind-a S400 Analog Complete System Product Code PL57753 The advanSea S400 series uses cutting edge technology

advanSea Wind-a S400 Analog Complete System

Features

advanSea Wind-a S400 Analog

Wind Direction Indication on a 360 Degree Analogue Display

The advanSea S400 series uses cutting-edge technology to provide accurate data for cruisers or racers.

Accuracy, optimal legibility, flexibility and ease of installation are the key benefits of the S400 series, together with easy intuitive operation with direct function access.

LCD screens with wide-angle viewing and supersize digits for unmatched visibility. Watertight display facia (IP66); displays feature an anti-fogging coating for optimal safety even in extreme conditions.

The S400 series is available with a choice of compatible transducers manufactured by Airmar or Plastimo. The instruments can also operate as "stand-alone" with intelligent transducers or an NMEA0183 source.

The advanSea Wind-a S400 offers

Wind Direction Indication on a 360 Degree Analogue Display

• Instant wind direction information in analog and digital display
• Proprietary Bus interface and NMEA0183 input/output
• Wind speed (0 to 199 knots)
• Wind direction through 360 degree
• Wind trend indication
• Apparent and true wind angle and speed
• The wind direction at a 1-degree resolution
• VMG speed
• Wind speed Alarm
• Low Battery Alarm
• Simulation mode

advanced instruments come with a 2-year warranty, [Transducers and antennas 1-year warranty] with worldwide support from the Plastimo network.

Part Numbers

PL57753 - Wind-a, Complete with masthead unit plus 25m cable

PL57754 - Wind-a, Display Only

Specifications

Common features

• External unit dimensions-112 x 112 mm
• Operating voltage 10 V to 16.5 V
• Display power consumption Below 150 mA Incl. backlighting
• Operating temperature- neg. 10 to50degreesC
• Storage temperature- neg.20 to 60 degreesC
• Drilling diameter-48 mm
• Fixing-Rear locking collar
• 'O'ring for bulkhead mount-Yes
• Buzzer/external alarm output-Yes / Yes
• Screen-Monochrome LCD, TN technology [Twisted Nematic]
• Backlit keys-Yes
• Backlit screen-Yes, amber, 5 levels [Off, 1, 2, 3, 4]
• Anti-fogging screen-Yes
• LCD: Transflective
• Waterproof rating-IP66 front face
• Intuitive menu-Yes
• Weather cover-Yes
• Simulation mode-Yes

Instruments specific features

• Wind speed-0 to 199 knots
• Wind direction-0 to 180° Port-Starboard
• Speed resolution-1° in a direction
• Display damping-1 - 30 steps
• NMEA0183 input ports-1
• NMEA Input sentences-VHW/ VTG/ MWV/ RMC/VWR
• NMEA0183 output ports-1
• Output sentences-VPW/ MWV/ VWR
• Proprietary bus-Half-Duplex series connection (38400 bauds on one wire)
• Units: Degrees - M/s - Beaufort - Knots - Km/hr - Miles/hr - V
• Alarms-Strong wind / Low battery

advanced instruments come with a 2-year warranty, with worldwide support from the Plastimo network.

Product Code PL57753
