Eberspacher Airtronic D2 Marine Heater

Eberspacher Airtronic D2 Marine Heater - A compact and economical heater for Sail and Motor boats 12-35ft in length.

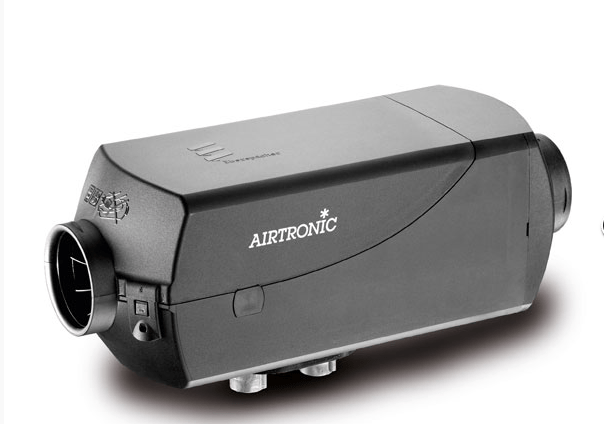

Eberspacher Airtronic D2 Marine Heater

A compact and economical heater for Sail and Motor boats 12-35ft in length. The Airtronic D2 offers optimised fuel efficiency, a range of operation modes and unsurpassed safety standards.

Your Airtronic advantages:

• Power setting for fast, direct heating.

• Continuously variable temperature selection.

• Suitable for fresh air operation.

• Quiet operation.

• Can be used purely for ventilation on warm days.

• Great value for money in terms of cost and maintenance.

• Minimal assembly required – ideal for a retrofit installation.

• Maintenance-free and user-friendly.

Applications Include:

Programmable independent heating (does not use heat from the engine) for all types of road and marine use. It is certified for installation in passenger areas and in proximity to dangerous substances.

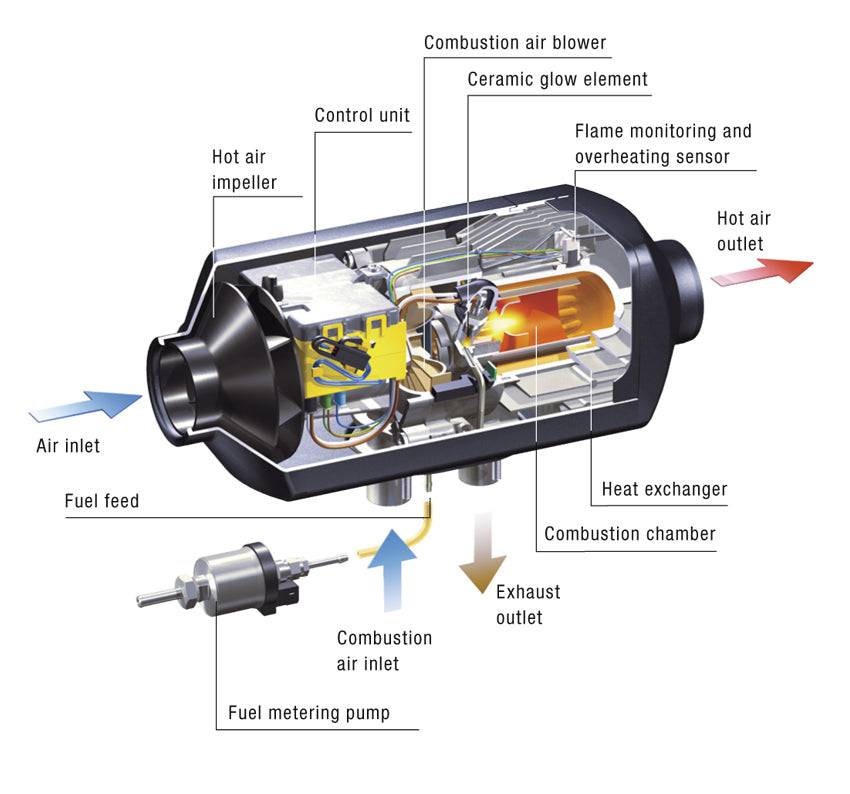

How an Eberspacher AIRTRONIC Air Heater Works:

As soon as the heater receives its starting pulse, the following processes are triggered by the central control unit:

• Automatic safety check.

• The burner motor starts, the combustion space is pre-ventilated, the glow plug is warmed up, and the metering pump conveys fuel.

• The glow plug ignites the fuel-air mixture, and the flame is formed.

• The hot combustion gases flow through the heat exchanger.

• The hot air fan draws in room air or fresh air.

• The heat of the combustion gases is transferred by the heat exchanger to this hot air.

Specifications:

• Fuel Type: Diesel

• Voltage: 12/24V

• Control / Heat Settings: Low, Medium, High, Power

• Heat Output: Low – 850W, Medium – 1,200W, High – 1,800W, Power – 2,200W

• Air Flow Volume: Low – 40Kg/h, Medium – 60Kg/h, High – 90Kg/h, Power – 105Kg/h

• Electrical Power Consumption: Low – 8W, Medium – 12W, High – 22W, Power – 34W

• Fuel Consumption: Low – 0.10l/h, Medium – 0.15l/h, High – 0.23l/h, Power – 0.28l/h

• Dimensions: 310 x 115 x 122

• Weight: 2.7kg

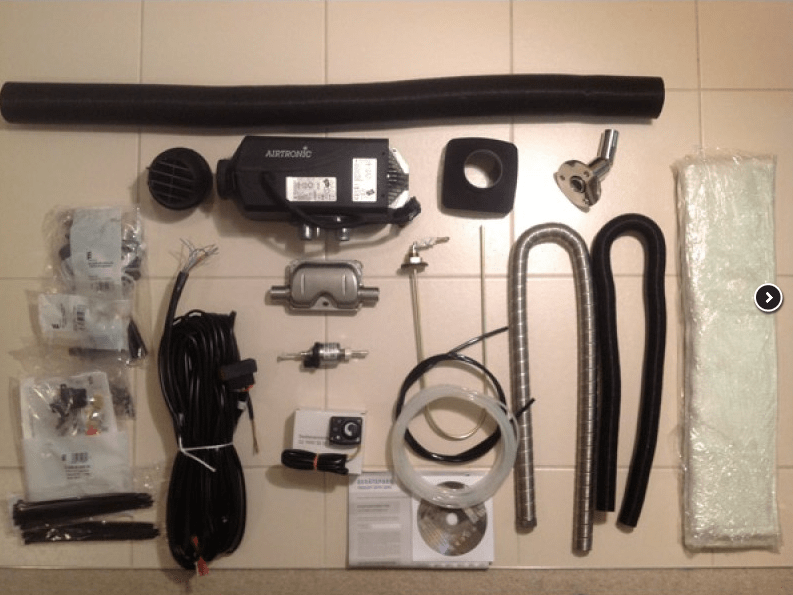

Kit includes:

• D2 unit

• 1m x 60mm Ducting

• 1 x 60mm Air outlet

• Electrical harness and connections

• Fuel pump, 8m fuel line and connections

• Stainless steel mounting bracket and hardware

• Exhaust silencer

• 1m x exhaust pipe and lagging

• 1m x combustion intake pipe

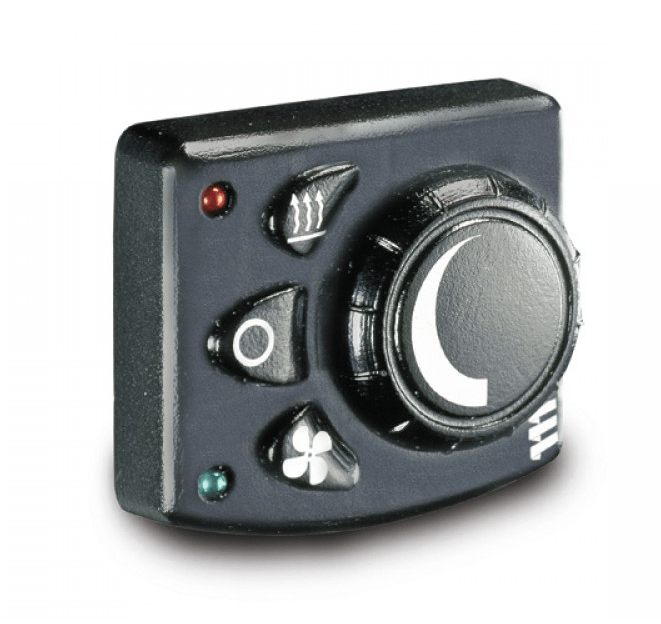

• Mini controller

• Stainless steel through hull fitting

For any further questions or enquires on technical information or installation requirements please contact us.
