Lenco 12" X 12" Short Ram Trim Tab Kit LED

Lenco 12"X 12" Short Ram Trim Tab Kit - LED switch Trim tabs make the single most difference. 5610LED

Lenco 12"X 12" Short Ram Trim Tab Kit - LED switch -

Trim tabs make the single most difference in the way your boat will ride and perform. Lenco trim tabs can make your ride smoother, drier and faster with increased safety and economy.

Lenco’s electric ball screw designed rams are very reliable, powerful and feature instant response. Their oil-free design makes them user-friendly and environmentally safe compared to typical hydraulic-powered trim tabs.

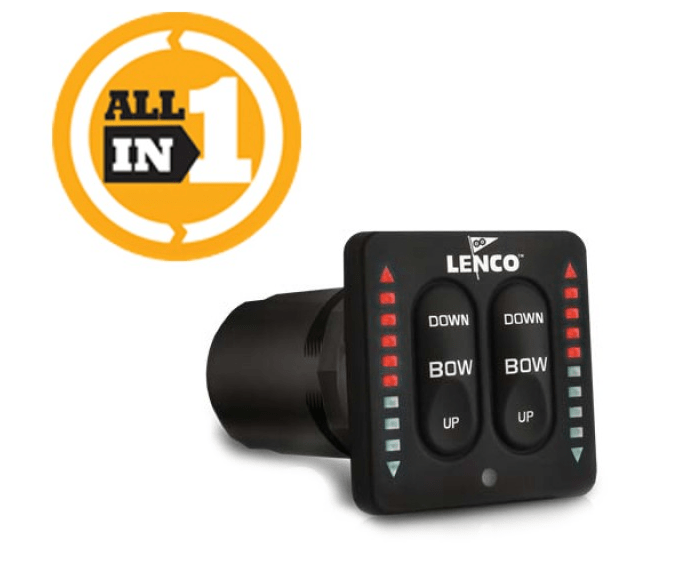

The Lenco tactile switch with LED indicators and retractor is the first switch to integrate a completely waterproof switch with a trim tab indicator. The retract feature moves the tabs to a fully retractable position when power is turned off.

Features:

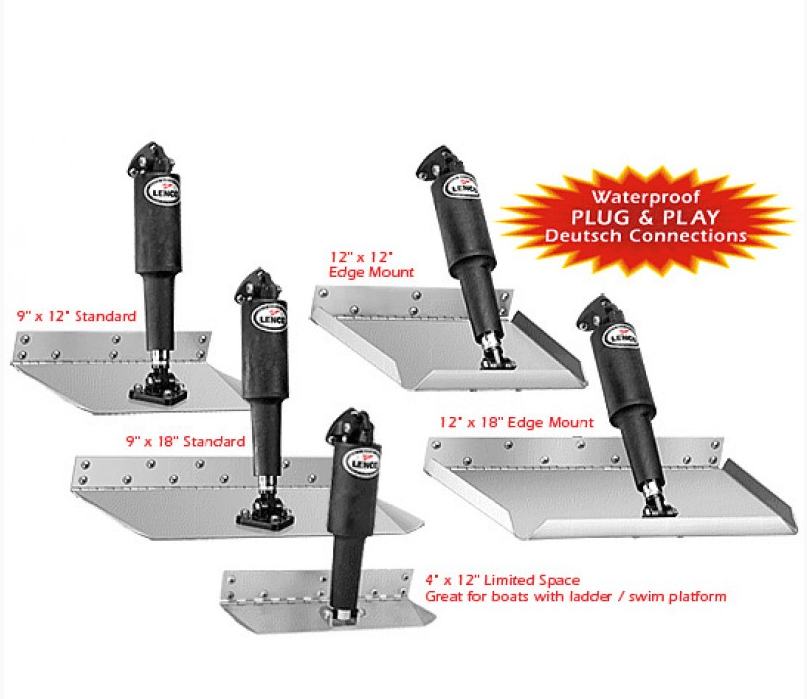

• Complete kit of 12" (Length) X 12" (Width) Lenco Trim Tabs with LED indicator switch panel
• 1 pair of trim tabs (includes planes and actuators)

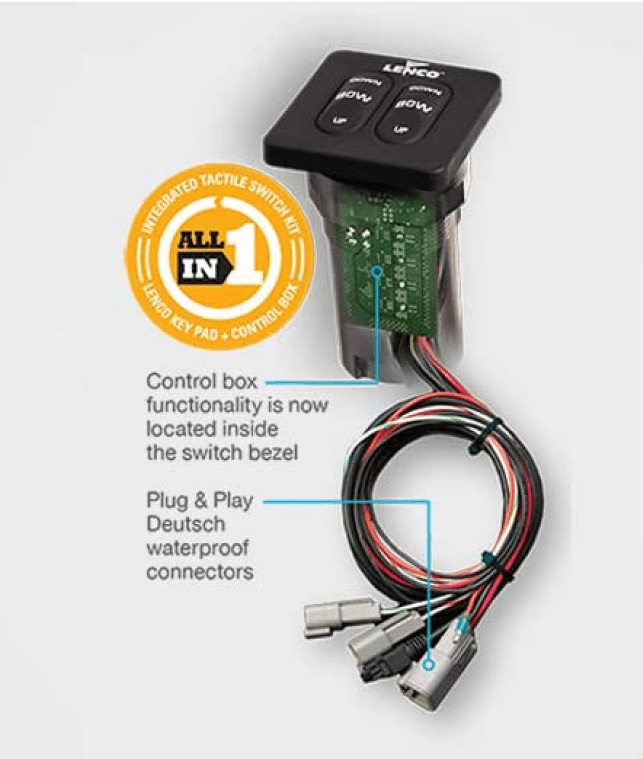

• LED style switch with integrated control box

*Auto Retract is standard

This size is recommended for boats in the 17 to 30 ft range.

Refer to the Specs tab (on the images above) for a recommended tab/boat sizing chart.

Specifications:

In the tab size:

• The first number represents tab length
• The second number represents tab-width at the hinge

Each kit includes:

• 12-volt actuators (2) with 6-foot leads and Deutsch connectors
• Stainless steel trim tab blades (2)
• 20' actuator extension harnesses (2) with Deutsch connectors
• Upper mounting bracket with gland seal
• Lower mounting bracket
• All stainless steel mounting hardware
• Some models available in the standard mount or edge mount (space saver)

* Switching is as supplied per product listing

NZ Product Code: 5610LED
