Trojan
Manual Trailer Winch - Max Pull 1130kg
Online Sales only - Sent directly from NZ supplier (not avaiable in store)
Sent from NZ Supplier (3-4 Days)
Quantity:

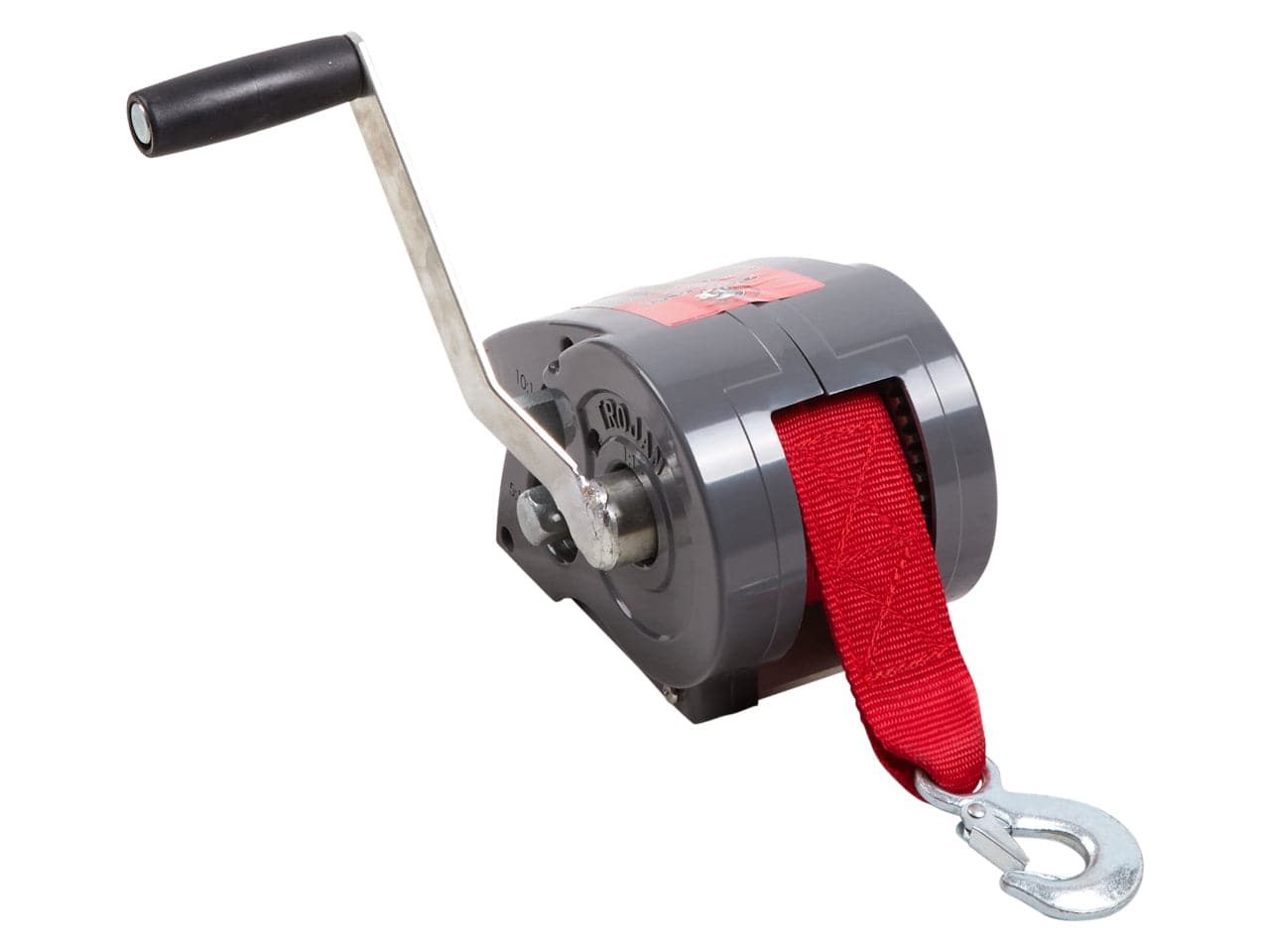

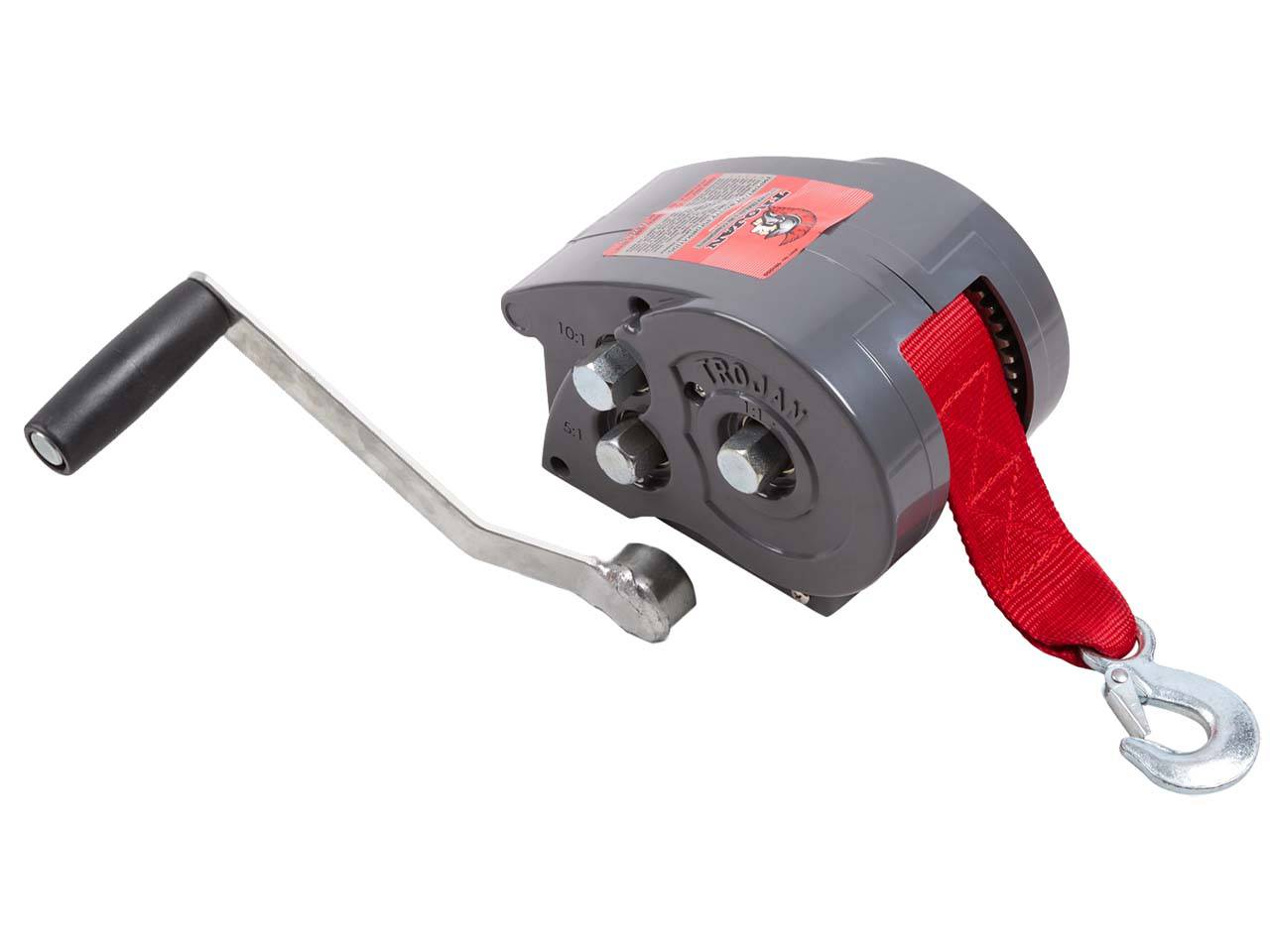

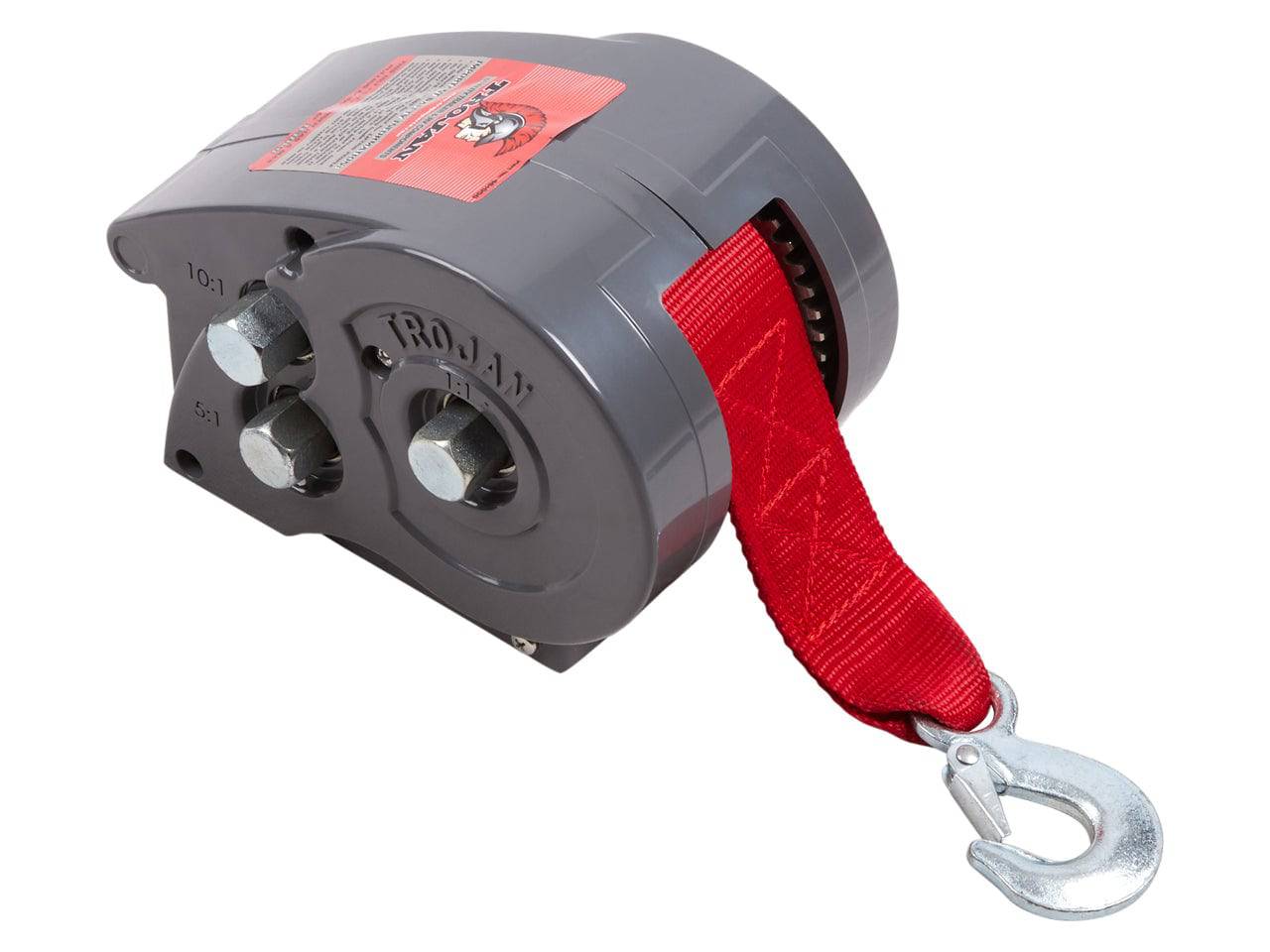

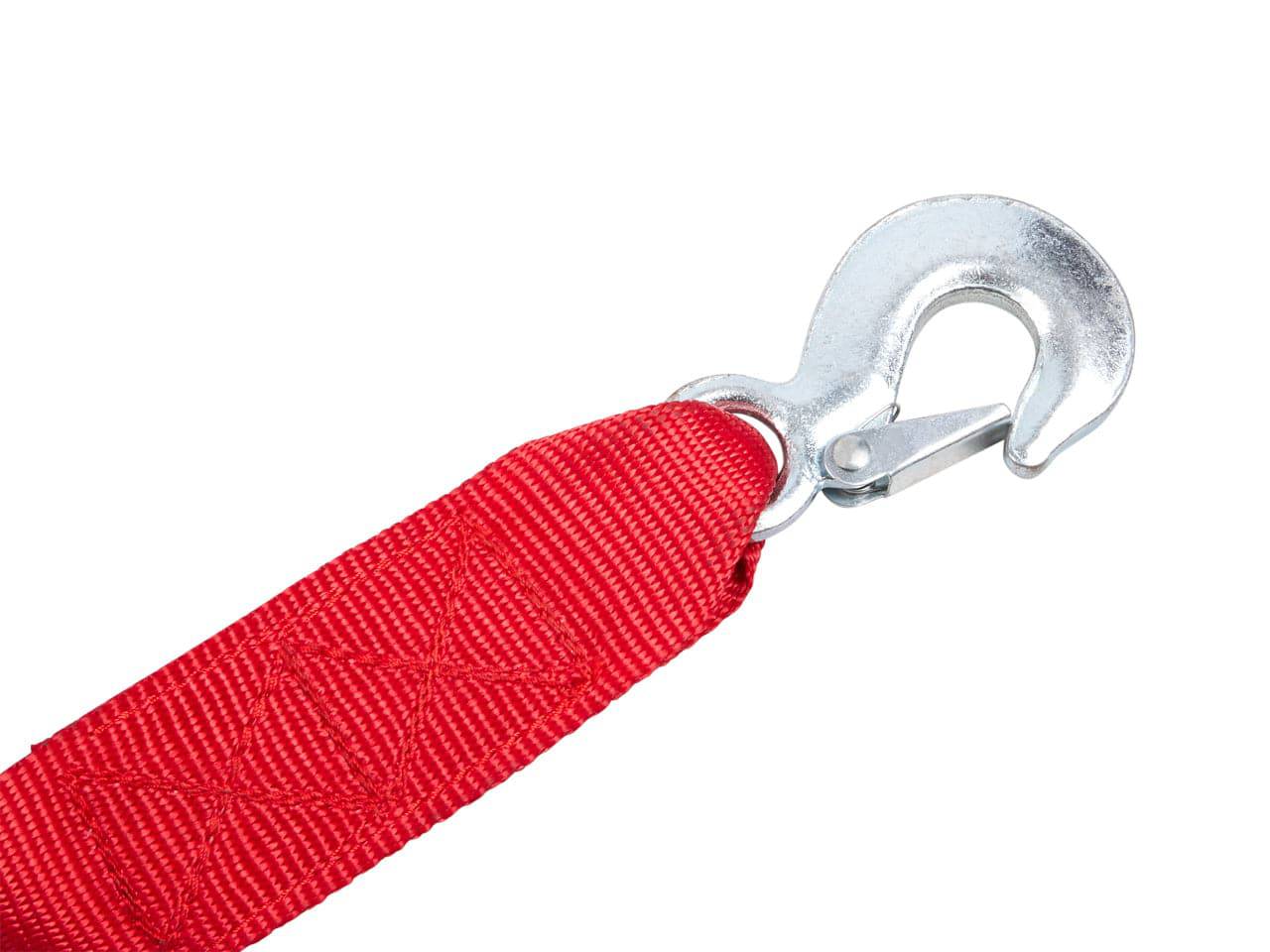

Trojan's Range of Closed Top Manual Trailer Winch with a 10-1 Ratio and Plastic Cover Strap
Manual Trailer Winch - Max Pull 1130kg
The Trojan range of winches is the widest available in the market with multiple options to have with or without winch rope or winch wire, available also in a range of winding options from 1 to 1 ratio up to 15 to 1 ratio for the bigger boats. These ‘predominantly’ marine winches are galvanized and the components are high quality stainless steel meaning a high level of corrosion resistance and low maintenance. Coupled with these winches are a huge range of spare parts for the odd time that components wear or fail.
Specifications
| Part No: | Ratio: | Max Pull: | Wire Size: |
|---|---|---|---|
| TR85690 | 1:1 | 250kg | |
| TR85700 | 3:1 & 1:1 | 500kg | |
| TR85710 | 5:1 & 1:1 | 750kg | |
| TR85720 | 10:1 & 5:1 | 1000kg | |
| TR85730 | 15:1 & 10:1 | 1500kg | |
| T461011 | 1:1 | 250kg | 4mm x 6mtrs |
| T461013 | 3:1 & 1:1 | 500kg | 4mm x 6mtrs |
| T461015 | 5:1 & 1:1 | 750kg | 5mm x 7mtrs |
| T461020 | 10:1 & 5:1 | 1000kg | 5mm x 7mtrs |
| T461023 | 15:1 & 10:1 | 1500kg | 6mm x 10mtrs |
| T461045 | 1:1 & 5:1 | 900kg | Strap |
| T461050 | 1:1 & 5:1 &10:1 | 1130kg | Strap |
Service kits listed below include Pawl Handle & Spring, Pinion Gear, Brushes & Roll Pins.
| Part No: | Ratio: | Winch Model: |
|---|---|---|
| T800027 | Service Kit | 1-1 3-1 5-1 |
| T800028 | Service Kit | 10-1 |
| T800029 | Service Kit | 15-1 |
