Master Cylinder Bracket & Lever Assembly

Online Sales only - Sent directly from NZ supplier (not avaiable in store)
Sale price$199.00
SKU: T993055

Sent from NZ Supplier (3-4 Days)

Quantity:

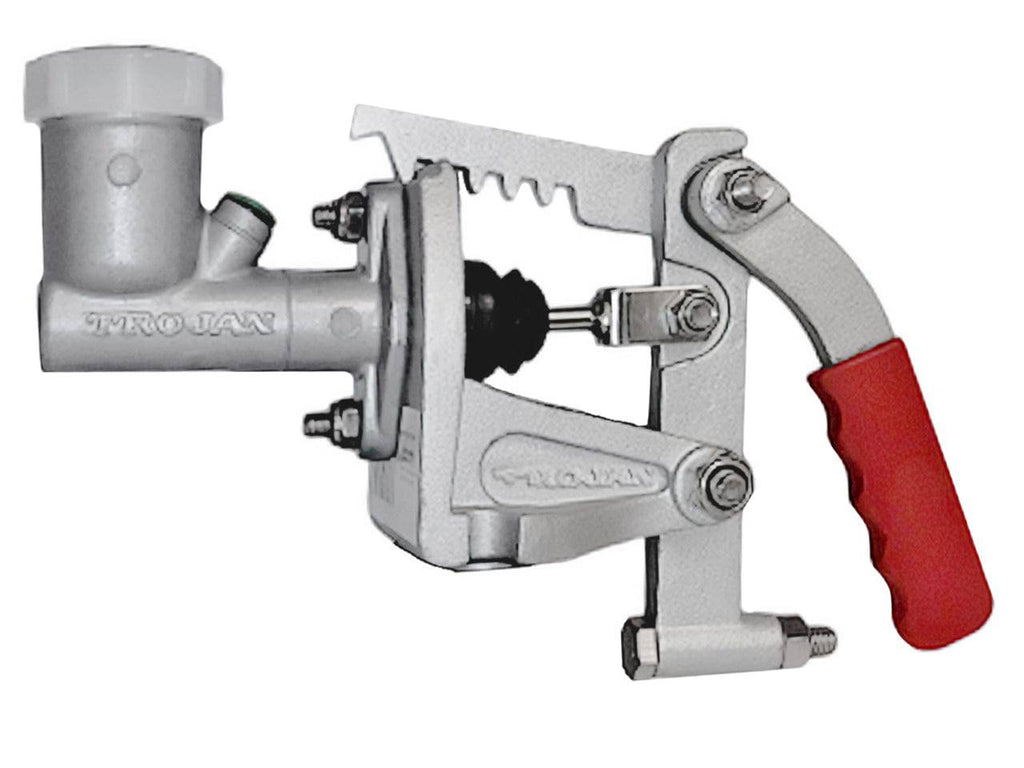

Master Cylinder Bracket & Lever Assembly


Snap Lock type. Complies with Australian Standard AS4177.3 (1994). Supplied with operating lever and base.

Specifications

NB: Two Master Cylinder sizes are supplied on Trojan Couplings being 3/4" bore and 7/8" bore. The 3/4" bore version has an alloy body and reservoir, while the early 7/8" version has a plastic reservoir, late model 7/8" cylinders were all alloy. Very early back, frames were pressed steel. The current versions will interchange with these. A back frame assembly is available allowing the conversion of Mechanical Operation Override Couplings to Hydraulic action.

Item: Part No: Description: Notes:
1 T201680 Back Frame & Lever All
1 T993050 Back Frame Assembly - Includes Lever & hydraulic Cylinder 3/4" Cylinder
1 T993052 Back Frame Assembly - Includes Lever & Hydraulic Cylinder 7/8" Cylinder
2 T993082 Lever Assembly - Includes Pawl (Fold-down type) All
3 TPT1038 Plastic Grip All
4 TPT10391 Master Cylinder Assembly 3/7" Cylinder
4 TPT10392 Master Cylinder Assembly 7/8" Cylinder

Back frame assembly including master cylinder available in ¾’ bore size for 2 wheel braked and 7/8” bore size for 4 wheel braked trailers. Mounting by way of two 12 bolts across the rear of most standard braked couplings of the same format.
