Maxwell Marine
Maxwell Windlass HRC10-10 - 24V/1200W
Sent from NZ Supplier (1-2 Days)
Maxwell Windlass HRC10-10 - 24V/1200W Maxwell’s all-new HRC10 Horizontal Series represents yet another breakthrough
Maxwell Windlass HRC10-10 - 24V/1200W EMAIL OR RING TO CHECK STOCK
Includes circuit breaker & up/down switch - FREE Worth over $200
Features of HRC10 Rope/Chain Series:
The all-new HRC10 fully automatic horizontal windlass series is designed to effortlessly retrieve and deploy 8mm (5/16") and 10mm (3/8") short link chain and 14mm (9/16") and 16mm (5/8") three-strand or 8-brait (plait) rope.

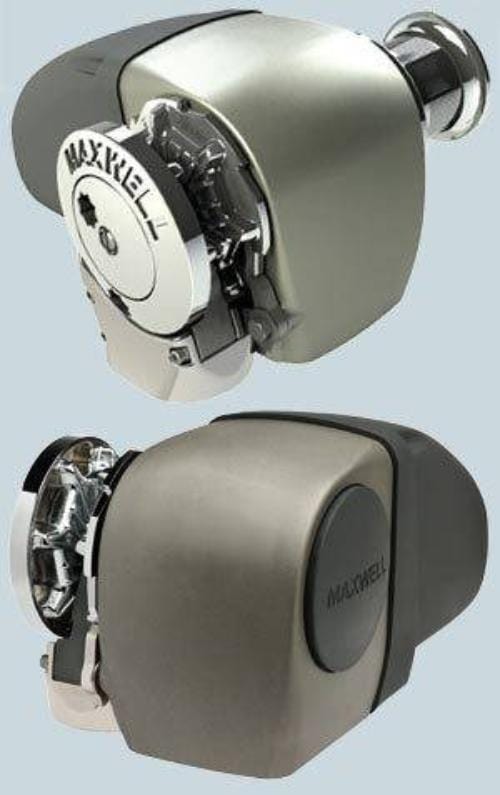

The aesthetically pleasing above-deck design evolved from the philosophy of form, follows function and encapsulates the motor and drive in a two-part watertight case, saving space below the deck.
The two-part case consists of a die-cast, marine-grade hard anodised alloy front section and a rugged, easily removable composite motor cover aft section.
This two-piece watertight case allows for quick and easy, on-deck, routine maintenance.
Simple bolt-down installation ensures effortless and rapid on-deck installation and set-up.
The stainless steel pressure arm always exerts maximum control pressure on the rode (rope, splice or chain).
The new and revolutionary patented Wave Design™chainwheel can accommodate various chain pitch differences within the specified chain size diameters, suitable for use with the HRC10 Series.
The unique Maxwell wrap-around horizontal chainwheel ensures that more than 90°of the wheel is used, allowing greatly improved rope and chain handling compared with competitor designs.
The HRC10 works just as effectively with all-chain rodes for those who desire an all-chain anchor system's added security and holding power.
The integral chain pipe and huge, through-deck hawse pipe throat ensure easy entry of the rope/chain rode into and out of the anchor locker.
The cone-type clutch/brake mechanism permits manual, free-fall anchoring and emergency crank recovery of the rode and anchor if required.
The sealed oil bath and marine-grade hard anodised alloy gearbox provide high-efficiency output drive via precision worm and worm wheel.
Maxwell's Revolutionary New Chainwheel Design
Specifications:
Model |
HRC10-10 |
|
---|---|---|
Maximum Pull |
850kg |
|
Static Hold |
1500kg |
|
Chain Short Link |
10mm |
|
Rope Size (Nylon)* |
16mm |
|
Chain Speed |
24m/min |
|
Rope Speed |
20m/min |
|
Power Supply (DC) |
24V |
|
Motor Power |
1200W |
|
Net Weight (Electric) |
20kg |
|
Hydraulic pressure |
138bar |
|
Hydraulic flow |
20l/min |
|
Net weight (Hyd) |
13 kg |
4/2/19-V
